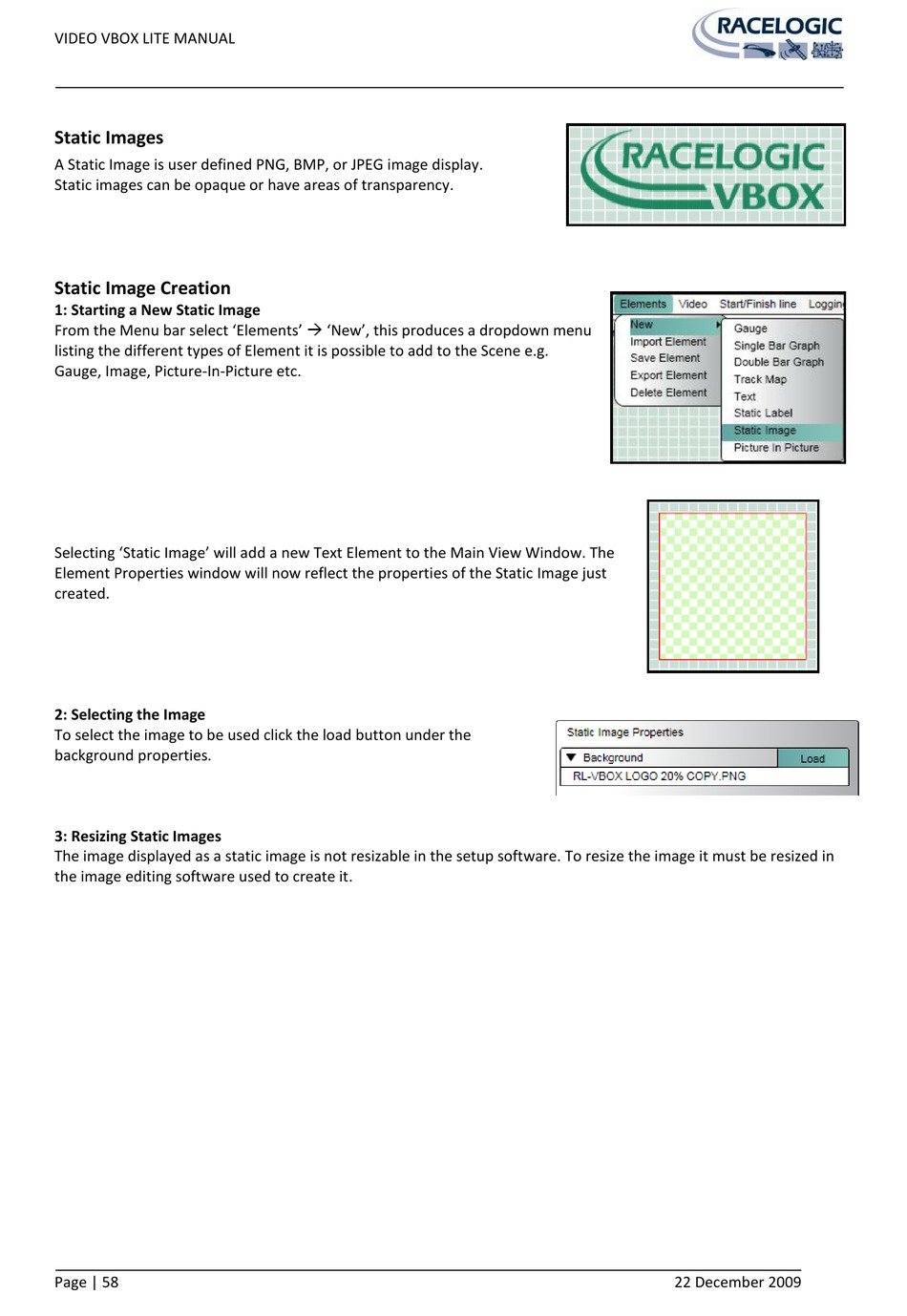

Static Images

A Static Image is user defined PNG, BMP, or JPEG image display.
Static images can be opaque or have areas of transparency.
Static Image Creation
1: Starting a New Static Image
From the Menu bar select 'Elements'  'New', this produces a dropdown menu
listing the different types of Element it is possible to add to the Scene e.g.
Gauge, Image, Picture-In-Picture etc.
Selecting 'Static Image' will add a new Text Element to the Main View Window. The
Element Properties window will now reflect the properties of the Static Image just
created.
2: Selecting the Image
To select the image to be used click the load button under the
background properties.
3: Resizing Static Images
The image displayed as a static image is not resizable in the setup software. To resize the image it must be resized in
the image editing software used to create it.
