- Page 1 2 CH Vehicle Video Recorder User Manual 2017 MAR V4.0 3G / 4G (Optional)
-
Page 2: Safety Precautions
Vehicle video recorder user manual Safety Precautions For ensure device working correctly, please test record and play video function before use. Please note that manufacturer, subsidiaries, affiliates, and distributors are not liable for any consequential damages arising from any malfunction of main device accessory. Including the losses cause by memory card that failed to record image or recorded files unable to read on any device. -
Page 3: Table Of Contents
Vehicle video recorder user manual Table of Contents A. Feature ........................ 1 B. Specifications ..................... 2 C. Accessories ......................3 D. Product structure diagram ................4 Product Dimension .................... 5 Installation ......................6 G. Remote controller ....................9 H. Recording and stop recording ............... 11 Playback video records ................... -
Page 4: Feature
Vehicle video recorder user manual A. Feature Suitable for record public or private vehicle security video. Apply vehicles as Taxi, cement trucks, container trucks, tank trucks, school buses, police cars, armored cars, ambulances, fire trucks, SUVs, RVs and others. Sony IMX323 Ultra low-light one million high-resolution CMOS sensor. -
Page 5: Specifications
Vehicle video recorder user manual B. Specifications Terms Specifications Front 1080P CMOS Sensor Sensor Rear 720P CMOS Sensor Camera view Front camera view angle approx.120° angle Rear camera view angle approx. 130° (a)Require 5V±5%, 1A Cigarette lighter adapter. Start voltage as 4.7v above. Voltage (b)Built-in1.5Fsupercapacity as backup power for file storage. -
Page 6: Accessories
Vehicle video recorder user manual (c) Force Record Button: For emergency recording. Gleams in night time. (d) Red light: Recording indicator. In emergency recording, it flashes more frequently. (e) Green light: GPS connecting light (Flashing light means that 3D positioning is not ready, bright means that 3D already positioning). -
Page 7: Product Structure Diagram

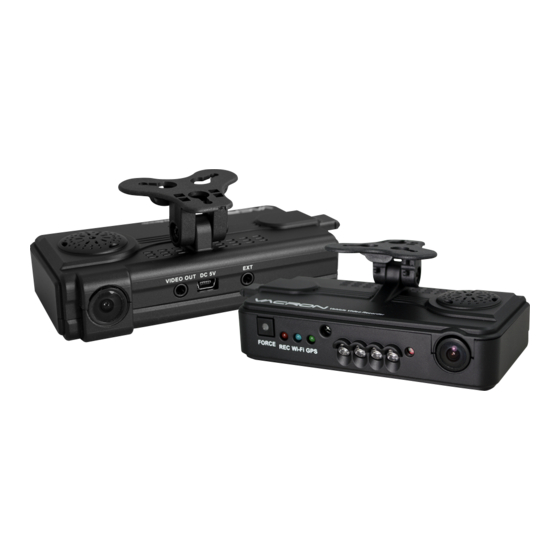

Vehicle video recorder user manual D. Product structure diagram Light Sensor Remote Control Receiver Force Recording Button IR LED light Recording Light /Red Rear camera WiFi connection light/Blue GPS indicator/Green Front camera GPS Mouse External Video output connector Power DC5V... -
Page 8: Product Dimension
Vehicle video recorder user manual USB Jack / WiFi Dongle MICRO SD Card Product Dimension Unit：mm... -
Page 9: Installation
Vehicle video recorder user manual F. Installation Use「suction cup」or「Double-sided adhesive」install device on vehicle front windshield. Double-sided adhesive 2. Set up the machine in proper 3. Adjust the camera view to proper position angle 4. Plug the power cable to 5. Plug in the cigarette adapter. DC5Vconnect jack... - Page 10 Vehicle video recorder user manual 6. Device wire installation diagram. During the wire installation, avoid set wire on left side above GPS, please set wire through device front hole to vehicle ceiling to get better GPS signal. installation Best Location Adapter Connection Notices...
- Page 11 Vehicle video recorder user manual (j) After SD card format by device or PC player, 8G, 16G, 32G, 64G or 128G SD card all showing 80.5MB storage space under Windows system, other storage space as hidden files, user have to play video records by professional player that offer by manufacturer.
-
Page 12: Remote Controller
Vehicle video recorder user manual G. Remote controller Buttons Functions Force Manually establish a ▲ recording recorded file which cannot button be overwritten Mode Full screen / Half screen Mode button spilt shift Menu Firmware version of the Menu button device displayed Mute Audio recording On/Off... - Page 13 Vehicle video recorder user manual ( 2 ) Illustration Description G-Sensor event GPS connection Front camera Rear camera Audio record On Rear camera image (CH2) Front camera image (CH1) GPS dirve information 1. Event Record: Appears in the top right side of LIVE screen, it means that G-Sensor didn't receive abnormal signal.
-
Page 14: Recording And Stop Recording
Vehicle video recorder user manual H. Recording and stop recording When the device power on, the screen will show a welcome message for the device starts if connected to TV-Out；After activated device, software will display current software version as 「Firmware Version： XXXX」 before get into LIVE screen. a) Power on/ Start recording: Power on, device activated after 1 minute later. -
Page 15: Playback Video Records
Vehicle video recorder user manual I. Playback video records How to read the files from Micro SD card? Turn the rubber Remove the Insert the Micro Connect the cover left and card SD card into the card reader to press the Micro card reader the PC and use SD card with... - Page 16 Vehicle video recorder user manual Control Interface Description: Pause Play Stop Play backward play previous frame Play next frame Play previous file Play next file Close Minimal screen Playback video Calendar Backup Screenshot Tool Configuration, device setting Tool list, can format memory card, doing language setting.
- Page 17 Vehicle video recorder user manual Disk Backup Save the recorded files from memory card to your PC, click button and it will pop up backup window as below. Step 1: select the SD card location Step 2: select the records which require to backup...
- Page 18 Vehicle video recorder user manual Step 3. Choose the backup file format (1)Micro SD Card Backup (*.sd) (2)AVI File Backup (*.avi) Backup format： (1) Micro SD card backup format Micro SD Card File type (*.sd) (2)AVI File Backup (*.avi) Chn01 is the front camera record.
- Page 19 Vehicle video recorder user manual Setting Insert memory card into adapter card before recording, and then plug in adapter card to PC USB slot. Click and run software to setting recording method, after setting complete, insert the memory card back to device and continue recording.
- Page 20 Vehicle video recorder user manual Encrypted memory card for prevent other people get any information from this card. Set a password to 15 characters limited, for example： 123456789123456 After setting the password, Password it is required to enter password to access the playback file, setting, formatting memory card.
- Page 21 Vehicle video recorder user manual Audio recording. Audio On: start audio recording / Recording Off: stop audio recording Daylight Activate it in daylight saving Saving time regions. Time SSID: can type in Wi-Fi connect ID ( character and number) Wi-Fi Password: Wi-Fi connection setting password, set password...
- Page 22 Vehicle video recorder user manual Speed Meter & Volume Speed Meter Volume control Video Playback Video Speed Play BAR (1) Play BAR: capable move the play BAR by mouse The flag above BAR can be move to backup video files. (2)Video speed: Support 2x, 4x, 8x fast forwarding and -2x, -4x, -8x slow play mode.
-
Page 23: Format Memory Card
Vehicle video recorder user manual J. Format memory card When You Should Format Micro SD CARD? When you use the Micro SD card for the first time or just purchase a new card, you should format it in order to use it correctly. (The bundled Micro SD card has been formatted and tested by the manufacturer already.) ★Note: this record system cannot delete a particular video, backup video before format SD card. - Page 24 Vehicle video recorder user manual When formatting is completed, please insert the card into the machine for recording. Open the plastic Insert the Micro SD Press the Micro SD Close the plastic lid . card in correct card in until it is lid.
-
Page 25: Restore Memory Card
Vehicle video recorder user manual K. Restore memory card When you have backup the recorded files into PC and want to use the Micro SD card for other purposes, you have to restore it first so it can be used correctly. *Notice: 1. - Page 26 Vehicle video recorder user manual Windows XP Windows 7...
-
Page 27: Client Remote Surveillance (Optional)
Vehicle video recorder user manual L. 3G Client Remote Surveillance (optional) Log In Please execute 3GClientApp.exe and log in. Log in page shown as below figure, key in the user account and password to log in the system. Notice: The version of executed software must be installed DirectX 9.0 or latter. - Page 28 Vehicle video recorder user manual Default setting is Taipei Server IP:202.39.134.134 Central Server TCP Server TCP Port(Default Setting:24680) Port Central Server UDP Server UDP Port(Default Setting:24681) Port (1) Live view Display Operation Interface...
- Page 29 Vehicle video recorder user manual Device List Device Positioning Light Description The device is not positioning by GPS positioning is ready. Yellow light is idling status. Red light is over speed status Live view Display Windows Division/Function Bottom Events Information/Device List/ Map (2) Track Page ※The Device need to use G-mouse for GPS positioning.
- Page 30 Vehicle video recorder user manual (3) Setting Pages 1Seeting Page 1 For setting parameters included video playing status, image recording setting, timming setting of auto flip and language setting. Real time→Video smooth priority. Video Playing Smooth→Image smooth priority. Setting Recording Recording storage route, Recording time, Setting...
- Page 31 Vehicle video recorder user manual Setting Page 2 Setting recording, and e-mail. Alarm Events Setting of the default recording channel and Record Setting timing when alarm switched. Sent Email to the assigned mail box when alarm switched. Mailing Function Options Warring 1 Mail Setting Warring 2...
- Page 32 Vehicle video recorder user manual Over speed System Crash Video offline G sensor switched Offline Common use of SMTP Server List...
- Page 33 Vehicle video recorder user manual Setting Page3 3G Relating Function Setting. Speed unit setting, Video linking automatic 3G Setting break timing setting, Read device setting. Others Setting Communication time disable setting.
- Page 34 Vehicle video recorder user manual (4) Report Inquiry current device running data.
-
Page 35: Wifi Real Time Video
Vehicle video recorder user manual M. WiFi real time video (1) software acquisition method For Mobile device user could search the item name ”Vacron Player” on the Play store or link and install on Google https://play.google.com/store/apps/details?id=com.fuho.E Play. iOS version: https://itunes.apple.com/tw/app/vacronplayer/id9924128 25?l=zh&mt=8... - Page 36 Vehicle video recorder user manual default password is「12345678」. (3) Open Vacron APP list, choose device list, add the channel and key in device name. → → (4) Live View →Snapshot function →Instant video recording functions...
- Page 37 Vehicle video recorder user manual (5) Playback/Back up...
- Page 38 For more products information, Please go to Vacron website: http://www.vacron.com Made in Taiwan...
