Menu information

The control system has 30 menus, numbered 00-29. Parameters 00 to 19 in the menu have a default adjustable
value, depending on if the operating mode is AUTO or MANUAL. Menus 20 to 29 displays measured values.

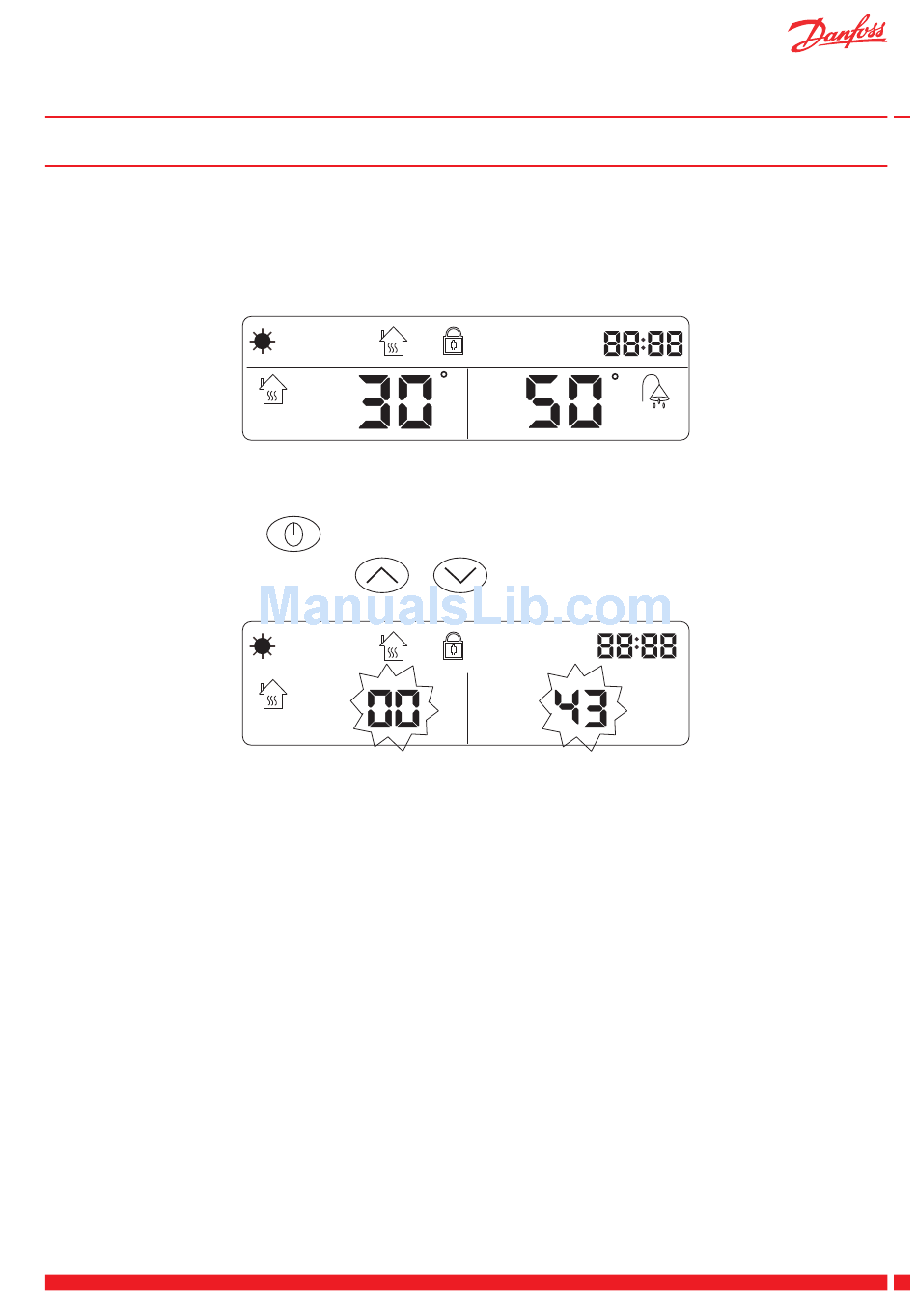

When the heat pump is in house heating/DHW automatic operation, the information is presented as in the pic-
ture below.
Viewing other settings
Other settings in the control system can be reviewed by navigating through the 30 available menus.
1. To enter a menu , press
2. Before the flashing stops, press the
The current parameter value for a menu setting is displayed in the right-hand side of the window. The default
value can be found further on in this user guide.
Danfoss Heating Solutions
DHP-AT
C
for 5 seconds. The menu and parameter digits start to flash.
or buttons to navigate between the menus.
C
