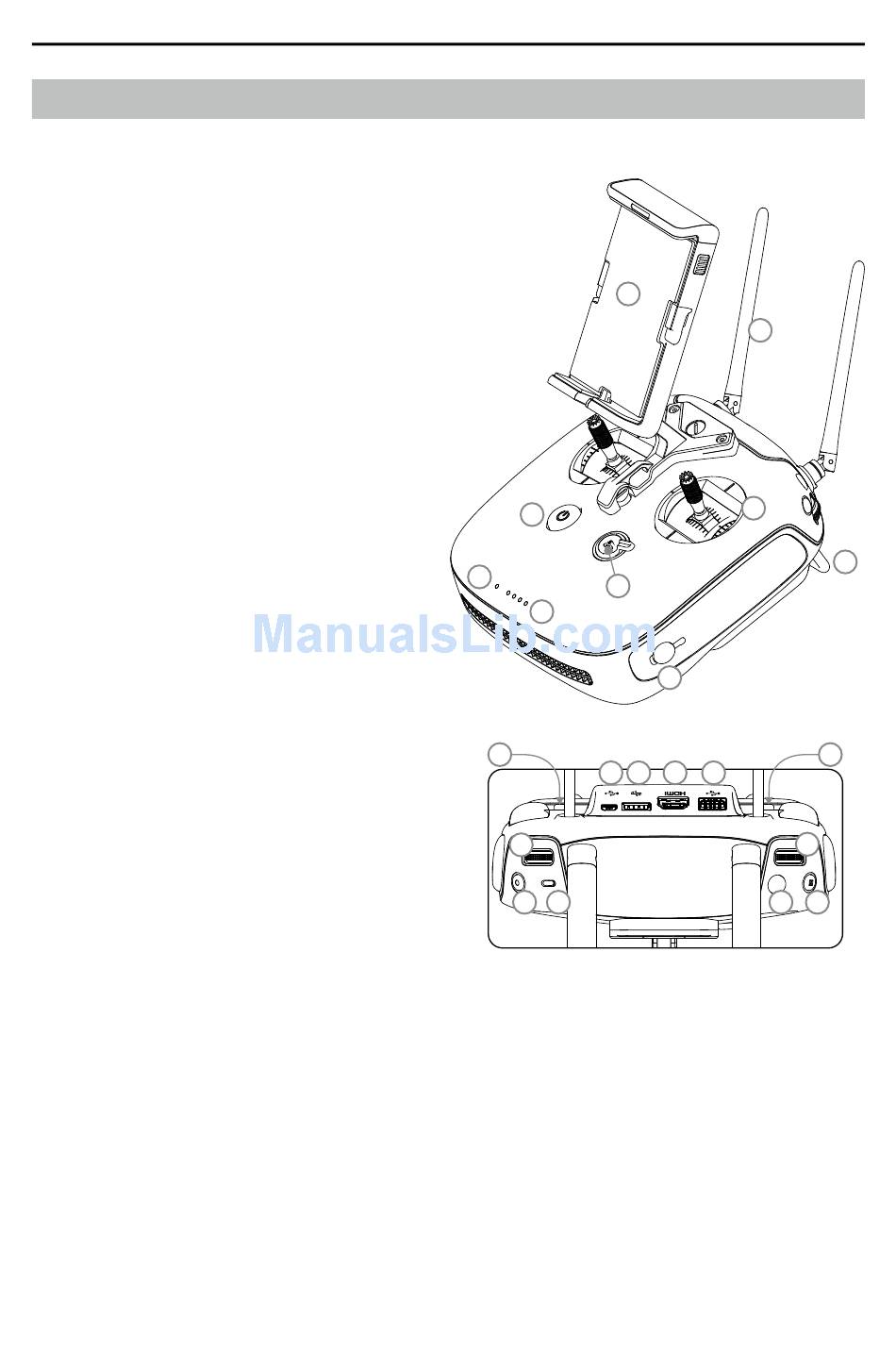

Remote Controller Diagram

[1] Power Button
Used to turn the Remote Controller on and
off.
[2] Return-to-Home (RTH) Button
Press and hold to initiate Return to Home
(RTH).
[3] Control Sticks
Control the orientation and movement of
the aircraft.
[4] Status LED
Displays the Remote Controller's system
status.
[5] Battery Level LEDs
Display the battery level of the Remote
Controller.
[6] Power Port
Connect to the Charger to charge the battery
of the remote controller.
[7] Mobile Device Holder
Securely mounts your mobile device to the
remote controller.
[8] Antennas
Relay aircraft control and video signals.
[9] Handle Bar
[10] Control Dial (Gimbal/FPV)
Use this dial to control gimbal tilt. In Free
Mode, pressing and holding the C1 Button and rotating the control dial adjusts gimbal pan. To
adjust the tilt of the FPV camera, press and hold the C2 Button and rotate the control dial.
[11] Camera Settings Dial
Turn the dial to adjust camera settings. (Only functions when the remote controller is connected
to a mobile device running the DJI GO 4 app.)
[12] Record Button
Press to start recording video. Press again to stop recording.
[13] Flight Mode Switch
Switch between P-mode, S-mode, and A-mode.
©
