Appostar KP-5360 User Manual

Fanless pos terminal
Hide thumbs Also See for KP-5360:
Table of Contents

Advertisement

Quick Links

Download this manual

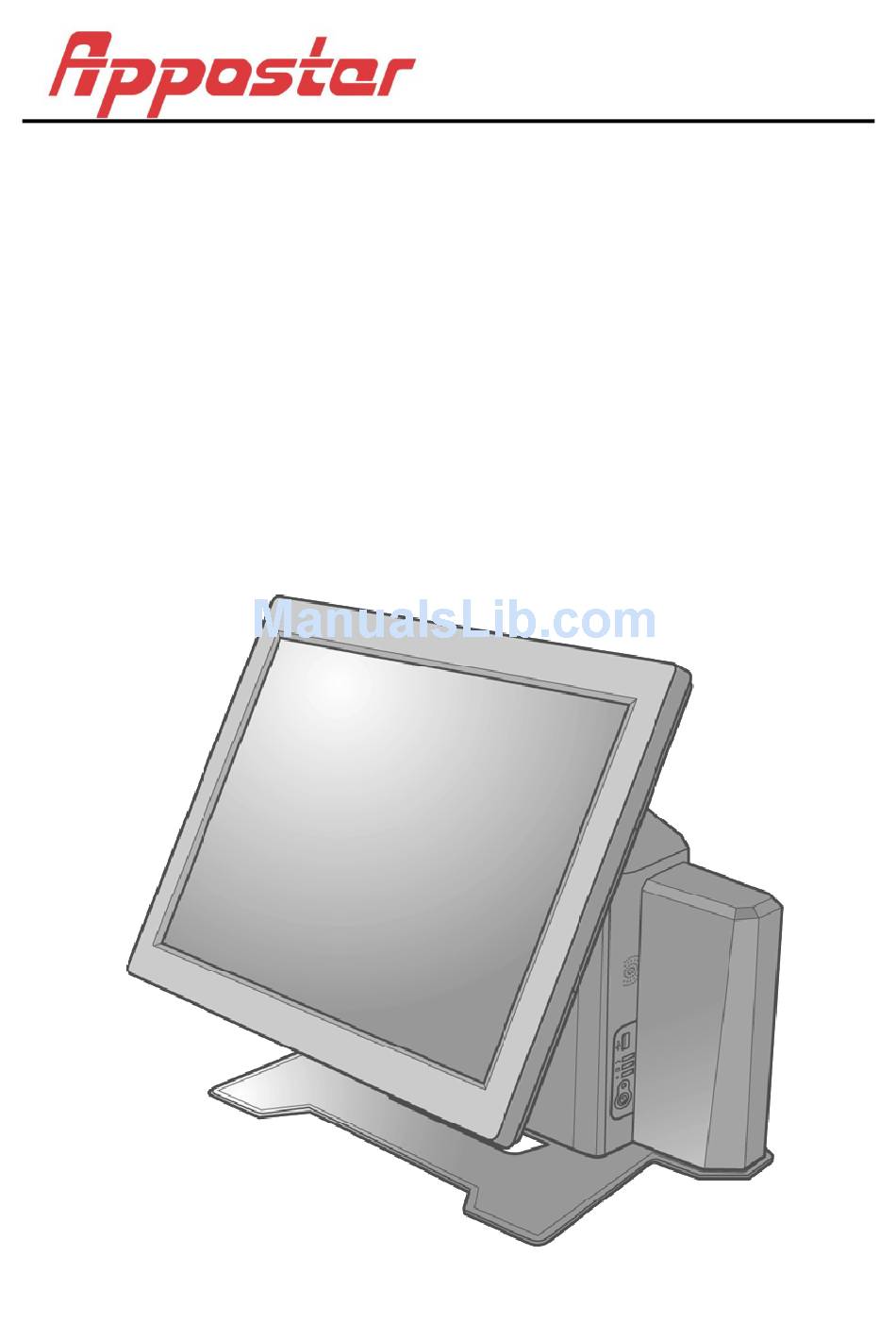

http://www.appostar.com
KP-5360
Fanless POS Terminal
User's Manual
Edition: OCT 2012
Version: 1.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KP-5360 and is the answer not in the manual?

Questions and answers

Related Manuals for Appostar KP-5360

Summary of Contents for Appostar KP-5360

  • Page 1 KP-5360 Fanless POS Terminal User’s Manual Edition: OCT 2012 Version: 1.01...

  • Page 2: Declaration Of Conformity

    For more information about where to send your waste equipment for recycling, please contact your local city office, your household waste disposal service or where you purchased the product. KP-5360 Fanless POS Terminal...
  • Page 3 The material in this document is for information purpose and is subject to change without prior notice. APPOSTAR has made every effort to ensure that this user’s manual is accurate and complete. However, no liability is assumed for any errors and omissions that may have occurred.

  • Page 4: Important Safety Instructions

    6. Do not place heavy objects on top of the product /or lean against the product, these items may fall and cause injury. 7. Do not block the air vent of the product, this can cause heat to build up inside the box machine and may lead to fire. KP-5360 Fanless POS Terminal...

  • Page 5: Table Of Contents

    Table of Contents Chapter 1 Product Overview ............... 2  1.1 Unpacking ......................2   1.2 Front, Rear & Side View ..................3   1.3 I/O Interface ..................... 5   1.4 Specification ..................... 7   Chapter 2 Hardware Installation ..............9  2.1 Peripheral Installation ..................

  • Page 6: Chapter 1 Product Overview

    Check li 1. POS Terminal M Main Unit 2. Quic ck Referenc ce Guide 3. Driver C (orde red specific cation) (User’s s manual in ncluded) 4. P Power Adap pter 5. Power Co KP-5360 F Fanless POS S Terminal...

  • Page 7: Front, Rear & Side View

    Front View / Dimension: 390 mm (W) x 235 mm (D) x 320 mm (H) 15” LCD touch panel Front panel Base Rear View / Dimension: 390 mm (W) x 235 mm (D) x 320 mm (H) Customer MSR cover display cover MSR cover Cable Rear cover management cover KP-5360 Fanless POS Terminal...
  • Page 8 PRODUCT OVERVIEW Side View x 2 / Dimension: 390 mm (W) x 235 mm (D) x 320 mm (H) Left Side Right Side (I/O with cover) (I/O without cover) KP-5360 Fanless POS Terminal...

  • Page 9: I/O Interface

    12V/2.5A DC Jack Cash Drawer (DIO) Digital I/O with 12V RJ11 Connector (single/dual) PS/2 PS/2 Keyboard Connector USB 2.0 A-type Connector x 4 COM4 COM5 Serial port with DB9/M Connector Printer (LPT1) Parallel port with DB25/F Connector KP-5360 Fanless POS Terminal...
  • Page 10 POS s system. NOTE: o avoid confu usion with L LAN port, the e COM 3 por rt is protecte ed with cove er, remove he cover befo ore use. KP-5360 F Fanless POS S Terminal...

  • Page 11: Specification

    Wireless LAN 802.11 b/g Customer Display VFD/LCD customer display Second Display TFT-LCD display/non-touch Control / Indicator Power Button 1 Reset Button 1 LED Indicators 3 (HDD / Power / LAN) Powering Power Supply AC 100V~240V/90W power adapter KP-5360 Fanless POS Terminal...
  • Page 12 Operating Humidity 15%~80% RH Storage Humidity 20% ~90% RH Mechanical Housing Color Cool White, Dark Gray Construction ABS + SECC Dimension (W x D x H) 390 x 235 x 320 mm Weight N.W. 8.5 kg KP-5360 Fanless POS Terminal...

  • Page 13: Peripheral Installation

    MSR R extensio on slot. Figure 1-b Step 2 Co onnect the e MSR cab le correctly Figure 1-c Step 3 Fix x the MSR R module in n position with 2 scre ews. KP-5360 F anless POS S Terminal...
  • Page 14 Figure 2-a Step 2 U nfasten 2 thumb scr rews off th he rear cov ver by a co oin. (Figure e 2-b, 2-c) Figure e 2-b Figure 2-c KP-5360 F Fanless POS S Terminal...

  • Page 15: Chapter 2 Hardware Installation

    Step 4 Cover the screw holes with plastic lids and reinstall the rear cover. (Figure 2-h, 2-i) Figure 2-h Figure 2-i ATTENTION If the customer display doesn’t work properly, please refer to CH.6 Troubleshooting. 2.1.3 Second Display Installation KP-5360 Fanless POS Terminal...
  • Page 16 Unfasten the 2 thumb screws off both the front and rear cover of the main unit. (Figure 3-b, 3-c) Figure 3-b Figure 3-c Step 3 Remove the top hinge cover using a screwdriver. (Figure 3-d, 3-e) Figure 3-d Figure 3-e KP-5360 Fanless POS Terminal...
  • Page 17 (Figure 3-h) Figure 3-h Step 6 Fit t the lowe r hinge cov ver to the second dis splay and fix with 1 thumb scr rew. Figure 3-i, 3-j) Figure e 3-i Figure 3-j KP-5360 F anless POS S Terminal...
  • Page 18 Figure 3-l, 3-m) Figure e 3-l Figure 3-m ATTENT TION If the sec cond displa ay doesn’t t work prop perly, plea se refer to o CH.6 Tro oubleshoo oting. KP-5360 F Fanless POS S Terminal...

  • Page 19: Component Installation

    Step 4 Unfasten 4 screws from the HDD bracket to remove the HDD and replace with a new one. Step 5 Reinstall the HDD bracket along with the cables, and then the front cover of the KP-5360 Fanless POS Terminal...
  • Page 20 Step 2 Lo ocate the M Mini PCI Ex xpress Car rd Slot on the mothe er board. (Figure 5- lug the Min ni PCI Exp ress card i into the slo Figure 5-c Figure 5-d KP-5360 F Fanless POS S Terminal...

  • Page 21: Chapter 3 Software Installation

    Insert the driver CD into your CD-ROM drive. Windows will automatically detect it and the Appostar Driver Installer appears on the screen. If not, locate the Setup.exe file at CD:\ and double-click it to execute the Appostar Driver Installer . Follow the on-screen instructions to complete the installation.
  • Page 22 Enter your logon info if you wish to use f. Click Accept on the Licence this feature. Click OK to continue. Agreement to continue. g. Once the overall install status 100%   completed, you will be prompted to restart your system. KP-5360 Fanless POS Terminal...

  • Page 23: Peripheral Device Driver Installation

    Select English as language and click d. A progress window appears in seconds. Next to continue. Click Next to continue. e. Click Install to begin the installation. f. A progress window appears. Click Finish to complete the installation. KP-5360 Fanless POS Terminal...
  • Page 24 Select the “Install RS232 interface driver” option. Click Next to continue. driver” option. Click Next to continue.   e. Select the None option and click Next f. Select the “Support Multi-Monitor to continue. System” option. Click Next to continue. KP-5360 Fanless POS Terminal...
  • Page 25 Select the Destination Folder or use the h. Type a Folder name or use the default default one listed. one listed. Click Next to continue. i. A progress window appears. Please j. Click Yes. The installation completes in wait. seconds. KP-5360 Fanless POS Terminal...

  • Page 26: Chapter 4 Board Setting

    PS/2 keyboard port header PCI Express Full-Mini Card connector PATA connector (44-pin) BIOS Configuration Jumper LVDS panel voltage selection jumper PCI Conventional bus add-in card connector Chassis fan header S/PDIF header Chassis intrusion header Internal mono speaker header KP-5360 Fanless POS Terminal...
  • Page 27 Jumper position for 5 V 12 V 3 and 2 Jumper position for 12 V (default) ATTENTION To avoid system malfunctions, DO NOT change the default setting by yourself. Contact your dealer for assistance if needed. KP-5360 Fanless POS Terminal...
  • Page 28 2 and 4 Jumper position for 12 V J23 (COM3_RJ45) DSR/DCD Signal Selection Jumper Signal Jumper Setting Configuration 1 and 2 Jumper position for LCD/VFD enabled. (default) 2 and 3 Jumper position for RS232 DCD signal. KP-5360 Fanless POS Terminal...

  • Page 29: External Connector Pin Assignments

    Signal Description PIN No. Signal Description DATA KEY(NO PIN) CLOCK KEY(NO PIN) DK: Cash Drawer (DIO) with RJ11 PIN No. Signal Description PIN No. Signal Description DIO Out 0 DIO IN 0 +12V DIO Out 1 Ground KP-5360 Fanless POS Terminal...
  • Page 30 PWR: 12V Power Connector (4.2mm) with 4P Mini-DIN PIN No. Signal Description Ground Ground +12V DC-In +12V DC-In ATTENTION To avoid system malfunctions, DO NOT change the default setting by yourself. Contact your dealer for assistance if needed. KP-5360 Fanless POS Terminal...

  • Page 31: Chapter 5 Bios Setting

    Once you enter BIOS, the System Setup menu appears on the screen. 5.2 BIOS Setup Program Menu Maintenance Clears passwords and displays processor information. Main Displays processor and memory configuration. Figure 5-B BIOS System Setup Menu – Advanced KP-5360 Fanless POS Terminal...
  • Page 32 BIOS SETTING Advanced Configures advanced features available through the chipset. Figure 5-B BIOS System Setup Menu - Advanced Security Sets passwords and security features. Figure 5-C BIOS System Setup Menu - Security KP-5360 Fanless POS Terminal...
  • Page 33 BOARD SETTING Power Configures power management features and power states options. Figure 5-D BIOS System Setup Menu – Power Boot Selects boot options. Table 5-E BIOS System Setup Menu - Boot KP-5360 Fanless POS Terminal...
  • Page 34 BIOS SETTING Exit Saves or discards changes to Setup program options. Figure 5-F BIOS System Setup Menu – Exit NOTE: The Maintenance menu is displayed when the BIOS jumper is set to Configure mode. KP-5360 Fanless POS Terminal...

  • Page 35: How To Set Video Configuration

    BOARD SETTING 5.3 How to Set Video Configuration For NP-3260 and KP-5360, the terminal display will not function correctly after being pressed <F9> load default in BIOS setup. Connect an external display by using VGA port and set Video Configuration...
  • Page 36 Figure 3 Video Configuration – Warning Step5. Set Monitor Configuration and LCD Panel Type as shown below: Figure 4 Video Configuration – Settings Step6. Press <F10> to save the settings. Then press <ESC> to exit and reboot. KP-5360 Fanless POS Terminal...

  • Page 37: Bios Setup Program Function Keys

    <Enter>: Exits the menu, saves changes, and boots from the selected device <Esc>: Exits the menu without saving changes A TTENTION To avoid system malfunctions, DO NOT change the BIOS default setting by yourself. Contact your dealer for assistance if needed. KP-5360 Fanless POS Terminal...

  • Page 38: Chapter 6 Troubleshooting

    CHAPTER 6 Troubleshooting This chapter provides suggestions on how to locate and solve problems that may arise while using your KP-5360. If you cannot solve a problem with the following information, contact your dealer for further assistance. With the power on, there is no image on the terminal screen.
  • Page 39 Press <F9> during POST to load the default configuration values for the current menu. NOTE: If the problem goes beyond the scope of this manual or remains unresolved, DO NOT repair it by yourself, contact your dealer for assistance. KP-5360 Fanless POS Terminal...

  • Page 40: Appendix

    APPENDIX APPENDIX Magnetic Stripe Reader (MSR) Installation An optional MSR can be installed in both right/left side of KP-5360 By default, the MSR is installed on the right side. Step 1 Remove the cover from the MSR extension slot. Step 2 Connect the MSR cable correctly.
