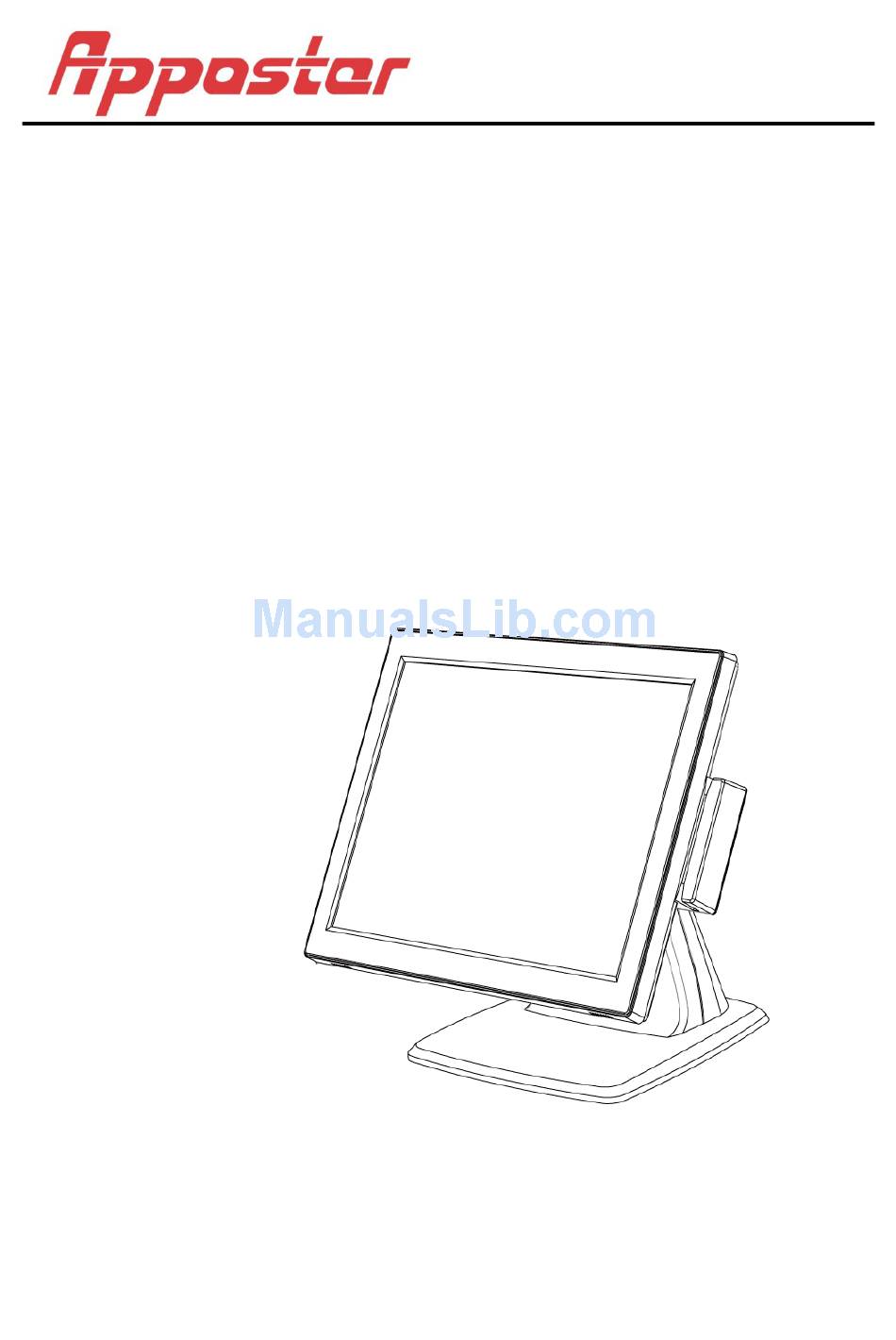

- Page 1 Grand POS GP-3472/GP-3474/GP-3476 User’s Manual Edition: Jan 2015 Version 1.0...
- Page 2 GP-3472/G GP-3474/GP P-3476 POS S Terminal ...
- Page 3 The material in this document is for information purpose and is subject to change without prior notice. APPOSTAR has made every effort to ensure that this user’s manual is accurate and complete. However, no liability is assumed for any errors and omissions that may have occurred.
-
Page 4: Important Safety Instructions
6. Do not place heavy objects on top of the product or lean them against the product. These items may fall down and cause injury. 7. Do not block the air vent of the product as this can cause heat accumulation inside the box machine and may cause a fire. GP-3472/GP-3474/GP-3476 POS Terminal ... -
Page 5: Table Of Contents
Table Of Contents CHAPTER 1 PRODUCT OVERVIEW ............. 2 1.1 UNPACKING ................... 2 1.2 APPEARANCE ................. 3 1.3 I/O INTERFACE ................5 1.4 SPECIFICATION ................6 CHAPTER 2 HARDWARE INSTALLATION ........... 7 2.1 MAGNETIC STRIPE READER (MSR) INSTALLATION ......7 2.2 VFD/LCD CUSTOMER DISPLAY INSTALLATION ........ - Page 6 1. POS S Termina l Main Un . Power A Adapter 3. Power c cord (ord dered spe ecification) 4. Quic ck Refere nce Guide 5. Drive r CD (User r’s Manua l included GP-3472/G GP-3474/GP P-3476 POS S Terminal ...
-
Page 7: Chapter 1 Product Overview
PRODUCT OVERVIEW 1.2 Appearance Front View 15” LCD touch panel MSR module (optional) Front bezel Base Rear View Hinge cover I/O Cover Storage for power adaptor GP-3472/GP-3474/GP-3476 POS Terminal 3 ... -
Page 8: Side View
PRODUCT OVERVIEW Side View Tilt angle 0 ~ 85 degree 85° Left View Quick access slot for USB Type A GP-3472/GP-3474/GP-3476 POS Terminal ... -
Page 9: I/O Interface
With the rem movable HDD D / SSD bra acket, the H HDD / SSD c can be easily y removed from he slot. GP-3472/ /GP-3474/G GP-3476 PO OS Termina... -
Page 10: Specification
-20°C ~ 60°C Operating Humidity 15% ~ 80% RH Storage Humidity 20% ~ 90% RH Mechanical Housing Color Black Construction ABS + SECC Dimension(W x D x H) 350 x 242 x 320 mm Weight 5.8 kg GP-3472/GP-3474/GP-3476 POS Terminal ... -
Page 11: Chapter 2 Hardware Installation
An optional MSR can be installed at right side of GP-3462. Step 1 Remove the cover from the MSR expansion slot. Step 2 Connect the MSR cable correctly. Step 3 Fix the MSR module in position with 2 screws. ① ② ③ GP-3472/GP-3474/GP-3476 POS Terminal 7 ... -
Page 12: Vfd/Lcd Customer Display Installation
Use flat screw driver to remove the stand cover and break up the lid at the bottom of the cover. Step2 Fit in the bracket and screw it tight. Step3 Install the VFD onto the bracket and lead the cable through the stand to the RJ45 COM port. ③ ② ① GP-3472/GP-3474/GP-3476 POS Terminal ... -
Page 13: Second Lcd Installation
Fit the bracket in position with 2 screws. Step3 Reinstall the stand cover. Step4 Hang the LCD onto the bracket and REMEMBER to screw it tight. Step5 Connect the VGA and power cable to the main screen. ⑤ ② ③ ① ④ GP-3472/GP-3474/GP-3476 POS Terminal 9 ... -
Page 14: Chapter 3 Software Installation
Microsoft Windows platforms. Insert the driver CD into your CD-ROM drive. Windows will automatically detect it and the Appostar Driver Installer appears on the screen. If not, locate the Setup.exe file at CD:\ and double-click it to execute the one-step driver installation. - Page 15 BOARD SETTING f. Select “Install this driver software anyway” g. Select “Install” in Windows Security window in Windows Security window to continue to continue the installation procedure. the installation procedure. h. Select “Yes” to reboot system. GP-3472/GP-3474/GP-3476 POS Terminal 11 ...
-
Page 16: Peripheral Device Driver Installation
Ignore the “Install PS/2 interface to continue. driver” option. Click Next to continue. e. Select the “Install RS232 interface f. Select the None option and click driver” option. Click Next to Next to continue. continue. GP-3472/GP-3474/GP-3476 POS Terminal ... - Page 17 Type a Folder name or use the j. A progress window appears. Please default one listed. Click Next to wait. continue. k. Click Yes. The installation completes in seconds. GP-3472/GP-3474/GP-3476 POS Terminal 13 ...
-
Page 18: Chapter 4 Board Setting
Serial Port Voltage Switch for COM1 / COM2 through BIOS setting Enter BIOS / Advanced / F81866 Super IO Configuration / UART1 RI Function for COM1 or UART2 RI Function for COM2 GP-3472/GP-3474/GP-3476 POS Terminal ... - Page 19 JPC3 / JPC5 / JPC6: Serial Port Voltage Switch Jumper for JCOM3 / JCOM5 / JCOM6 Pin 1-2 Close: Pin 9=0V (Default) Pin 3-4 Close: Pin 9=5V Pin 5-6 Close: Pin 9=12V GP-3472/GP-3474/GP-3476 POS Terminal 15 ...
-
Page 20: Chapter 5 Troubleshooting
3. Wipe the MSR slot with a soft cloth then try again. NOTE: If the problem goes beyond the scope of this manual or remains unresolved, DO NOT repair it by yourself, contact your dealer for assistance. GP-3472/GP-3474/GP-3476 POS Terminal ...
