21 One80XM
Installation Guide
3.4

Rear view of the One80XM

This section describes the One80XM rear panel, so that the user can identify the interface type and port
numbering.

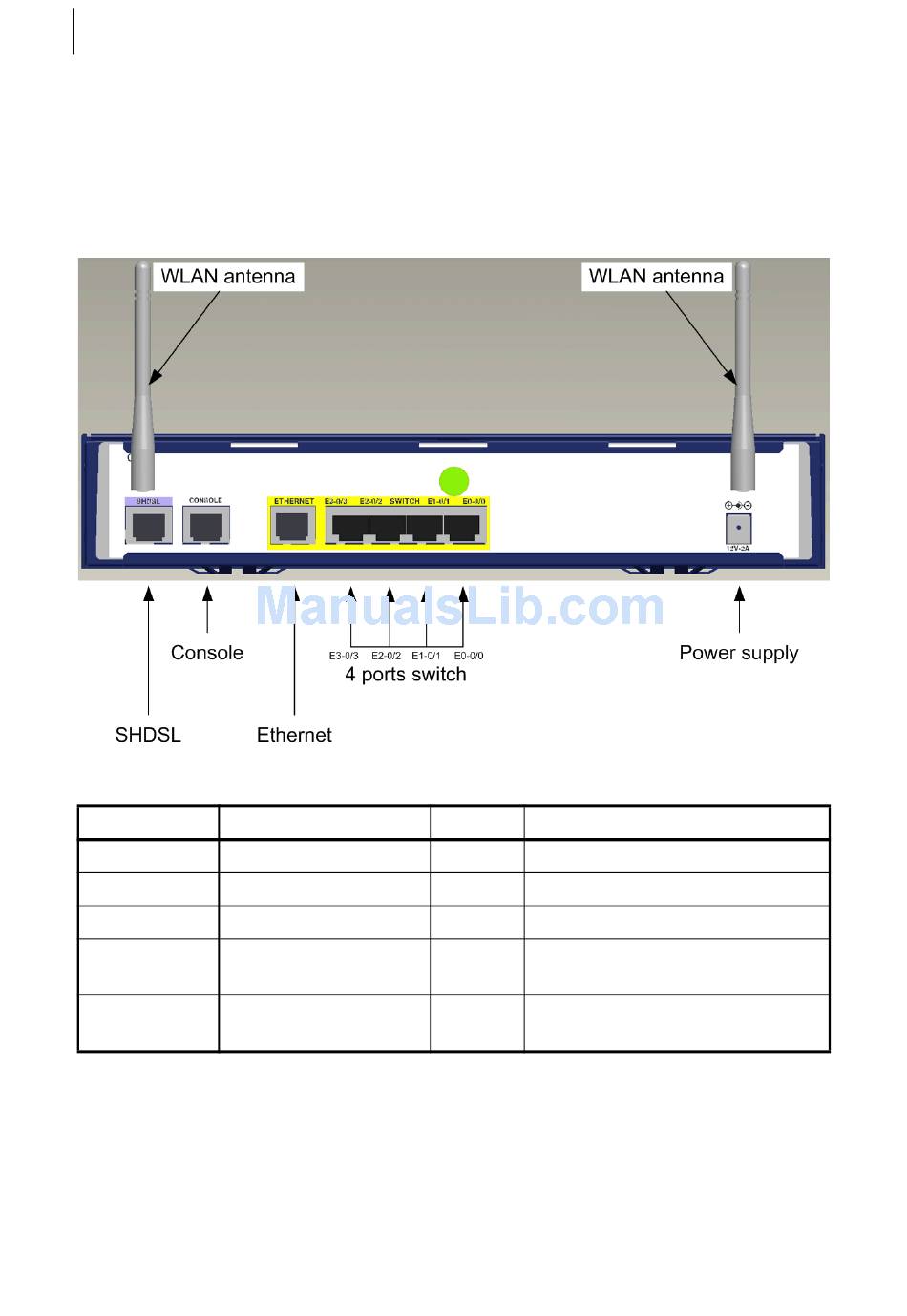

The following figure shows the back of the One80XM:
Following connectors are present:
Connector(s)
Line
Console
Ethernet
4 port Ethernet
switch
Power
For a detailed description of the function of the different connectors, refer to
One80XM Back Panel on page
Label
SHDSL
CONSOLE
ETHERNET
SWITCH
E0-0/0 ... E3-3/3
12V-2A
23.
Type Function
RJ45 SHDSL line connector
RJ45 V.24 DTE interface
RJ45 Ethernet LAN connector
RJ45 Ethernet LAN connectors
DC input Power input
jack
Chapter 3
Router Description
