3.3.1 Introducing the Front Panel LEDs
When all the connections are made and the One80XM is powered, the LEDs on the front panel reflect
the actual status of the device.

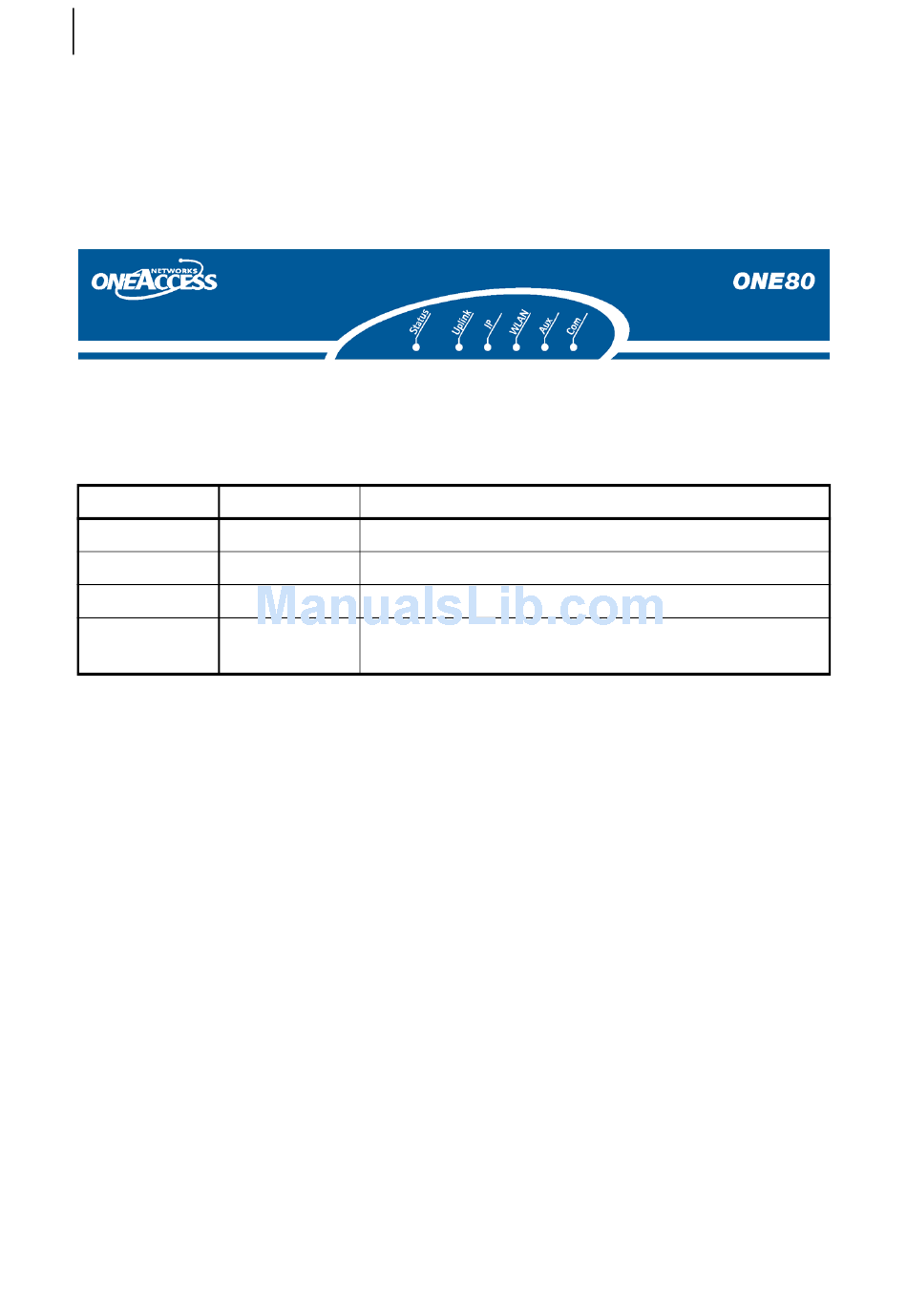

The following figure shows the front panel LED indicators of the One80XM:
LED states
One front panel LED can reflect different status modes by the way it lights up. The front panel LEDs can
light up as follows:
LED state
OFF
ON
blinking
flashing
LED duty cycle Description
0 % The LED never lights up.
100 % The LED lights up continuously.
50 % The LED is as much lit as it is out.
75 % The LED lights up during 75% of the time, i.e. 1,5 seconds ON
and 0,5 seconds OFF.
