LAN Interface Specifications

• Connector: RJ45 (EIA/TIA 568B)
• Cable to be used: standard Ethernet cable (shielded UTP Cat. 5)
• Applicable standards: IEEE 802.3 (10Mbps Ethernet), IEEE 802.3u (100Mbps Ethernet)
• Speed: 10/100 Mbps auto-sense
• Auto cross-over DTE/DCE (MDI/MDI-X, for connection to a terminal or switch)
• VLAN support (up to 12 VLANs)
• The following LEDs are available built-in on each Ethernet interface connector:
Colour
Green
Yellow

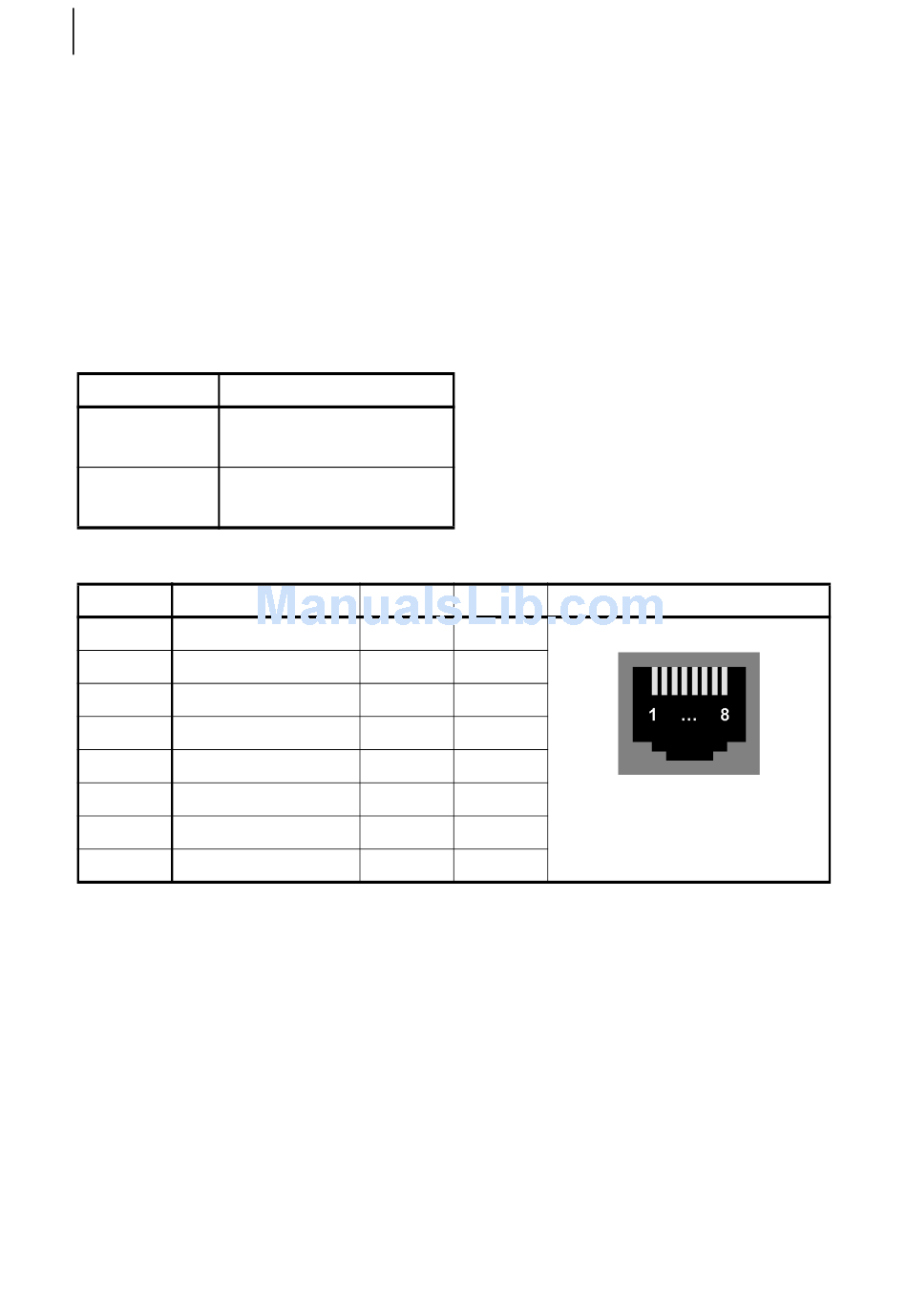

The following table shows the connector layout of the RJ45 Ethernet LAN interface connector:
Pin Signal
1 transmit (+)
2 transmit (-)
3 receive (+)
4 not used
5 not used
6 receive (-)
7 not used
8 not used
Description
• OFF: link inactive.
• ON: link active.
• OFF: no traffic in progress.
• ON: traffic in progress.
DTE
Out
Out
In
-
-
In
-
-
DCE Figure
In
In
Out
Out
