Parts and Instruction Manual
Kleen Sweep 27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kleen Sweep 27 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Minuteman Kleen Sweep 27

Summary of Contents for Minuteman Kleen Sweep 27

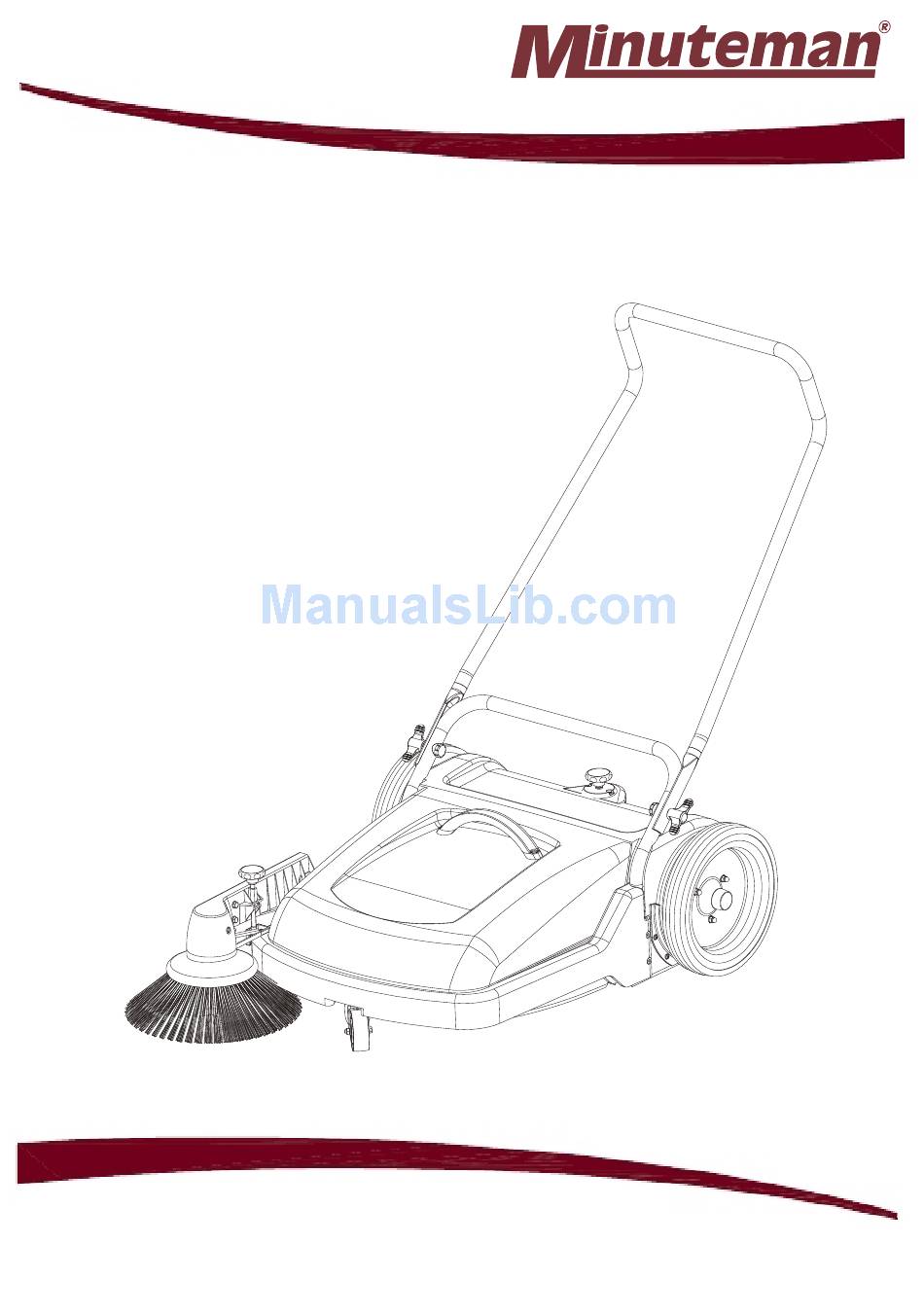

  • Page 1 Parts and Instruction Manual Kleen Sweep 27...

  • Page 2: Table Of Contents

    Contents Instruction Manual Preface ...........................1 Introduction Proper use ..........................1 Acceptance of the machine ....................2 General Safety Instructions General Safety Instructions ....................2 How to put the machine into operation Assembly..........................3 Side Brush Assembly.......................3 Operation Controls...........................4 Technical Specification......................6 Maintenance Schedule Maintenance Works.........................6 Maintenance Intervals......................6 Trouble Shooting........................7...

  • Page 3: Preface

    Dear Customer, It is our desire that the excellent properties of the Kleen Sweep 27 should justify the confidence you demonstrated in making this purchase. Before first operation of your Kleen Sweep 27 read these instructions carefully. They will inform you in detail about the operation of the item and contains valuable information on operation, service and maintenance.

  • Page 4: Acceptance Of The Machine

    The terms of the sales contract apply. Damages are not subject to warranty if they are due to non-compliance with the maintenance and service provisions. Any maintenance work has to be performed by an authorized Minuteman International service workshop and confirmed in the “Maintenance certificate “which is the warranty document.

  • Page 5: How To Put The Machine Into Operation Assembly

    1.0 How to put the machine into operation 1.1 Assembly For ease of packing, the handle and side brush assembly are packed separately. These parts must be installed before the machine is put into operation. The handle is mounted by means of knobs (3 - fig on next page) Handle can be fixed in two different positions as shown below.

  • Page 6: Operation Controls

    2.0 Operation 2.1 Controls 1. Pressure adjustment knob for Side Brush Used for setting of the side brush. The side brush may touch the floor only by its one third section, so as to throw the swept matter into the machine.
  • Page 7 2.2 Operation of the Kleen Sweep 27 The Kleen Sweep 27 operates with two brushes. The side brush takes dirt from the side into the reach of the main brush. The main brush maintains its direction of rotation to throw the dirt into the hopper in forward direction of the machine.

  • Page 8: Technical Specification

    If you are not capable of performing the works according to the maintenance schedule by yourself, please contact your Minuteman dealer. Our agents, who have trained staff and stock original Minuteman Spares will be glad to perform those works for you.

  • Page 9: Trouble Shooting

    5.0 Trouble Shooting TROUBLE REMEDIAL ACTION 1. Machine hard to push/pull Decrease main brush pressure setting Grease main Wheels 2. Sweeping unsatisfactory Increase Main/Side Brush Pressure Clean Main/Side Brush Check Main Brush for loose bristles 3. Traces of dirt left behind the machine Check side/rear rubber sealings 4.
  • Page 10 Notes...

  • Page 11: Spare Parts Manual

    KLEEN SWEEP 27 Spare Parts Manual...
  • Page 12 16-A 16-B 16-C 16 - 552180041-RUBBER STRIP KIT - FLIPPER + REF NO PART NO DESCRIPTION 552130015 SIDE RUBBER STRIP 552130025 REAR RUBBER STRIP 881097 ROCKET CLIP The above items will be supplied only as a kit.

  • Page 13: Frame Group

    FRAME GROUP Sl.No Part No Description 552130007 FRAME 552130027 STEPPED WASHER 921007 WASHER STEEL 10.5X18.0X4.0 922824 CASTOR WHEEL ASSY (LOCAL) 844101 WASHER STEEL 10.5X20.0X2.0 802510 HEX HEAD SCREW - STEEL 8.8 - M10X45 859106 HEX NYLOCK NUT M10 552130051 SPLASH SHIELD 921131 SELF TAPPING SCREW W/COLLAR 4.8X13 552130028...

  • Page 15: Brush Shaft Group

    BRUSH SHAFT GROUP Sl.No Part No Description 552180031 BRUSH SHAFT GROUP 552180033 PRESSURE ADJUSTMENT GROUP 552130089 INDICATOR 844041 WASHER STEEL 4.3X9.0X0.8 836210 CRPH SELF TAP SCREW 3.5X25 552130039 TRUNNION SHAFT 552130092 SPACER THREAD ROD 552180036 THREAD ROD GROUP 552130085 TOP COVER THREAD ROD 817207 CR PAN HEAD SCREW STEEL -M5X20 926057...
  • Page 16 15 16 17 18 19...

  • Page 17: Handle And Gear Assembly

    HANDLE & GEAR ASSY Sl.No Part No Description 552130082 GEAR COVER BOTTOM 875010 DG BALL BEARING 6003 2 RS 923422 CIRCLIP EXTERNAL A17 921065 WASHER STEEL 16X22X1.5 552130044 PINION 921066 WASHER STEEL 16X22X0.5 552130078 WASHER STEEL 20X28X0.5 552180040 GEAR ASSY 552130083 GEAR COVER 926057...

  • Page 19: Hopper Group

    HOPPER GROUP Sl.No Part No Description 802307 HEX HEAD SCREW - M6X20 817207 CR PAN HEAD SCREW_M5X20 844061 WASHER STEEL 6.4X12.5X1.6 859068 HEX NYLOCK NUT M6 999161 WASHER STEEL 5.3X13X1 552130060 HANDLE FLIPPER 552130111 BOOT FRONT 552130098 STIFFNER HOPPER 552130099 STIFFNER HANDLE 552130100 GASKET HOPPER...
  • Page 20 5 6 7 14 15...

  • Page 21: Side Brush Group

    SIDE BRUSH GROUP Sl.No Part No Description 552180025 SIDE BRUSH GROUP MM 921017 SUPPORT SIDE BRUSH ARM 844061 WASHER-STEEL-6.4X12.5X1.6 835709 CRPH SELF TAPPING SCREW-STEEL-6.3X30 921107 TAPER BUSH SIDE BRUSH ARM 921013 CLEVIS PIN SIDE BRUSH ARM 923418 CIRCLIP EXTERNAL A12 552130014 MOLDED SIDE ARM 833084...
  • Page 23 Warranty...
  • Page 24 “Excellence Meets Clean” Minuteman is a Full Line Manufacturer of Sweepers and Scrubbers, for Industrial Facilities. 14N845 U.S. Route 20, Pingree Grove, IL 60140 USA Phone (800) 323-9420 - www.minutemanintl.com A Member of the Hako Group 552170041 Rev C 09/16...
