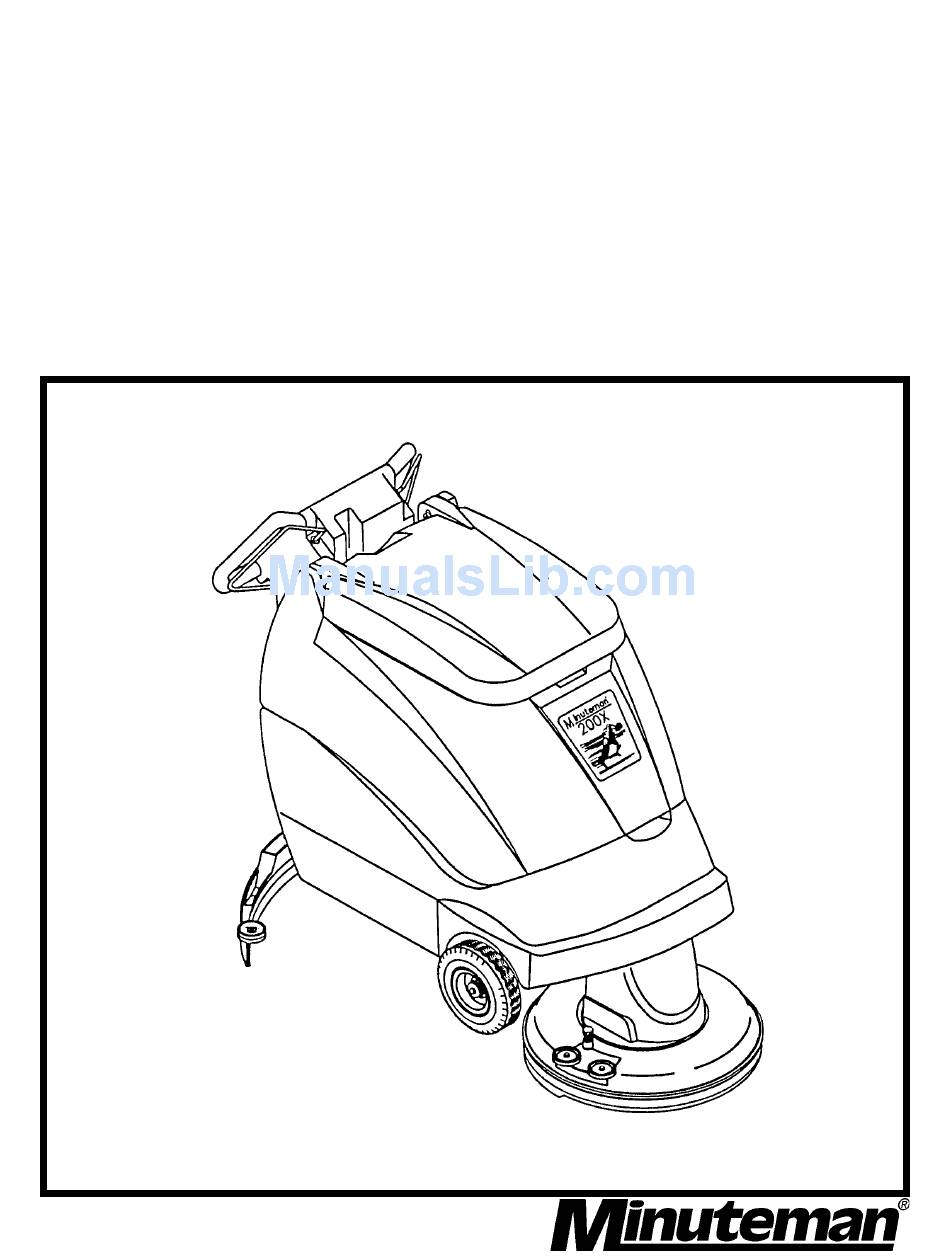

- Page 1 200X Model: MC20000QP, CE Brush Drive Floor Scrubber Battery OPERATION SERVICE PARTS CARE Revised 9/03...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Page Safety Instructions Electrical Requirements Control Panel Identification Operating Instructions Squeegee Adjustments Brush Installation/Removal Base Assembly 7 & 8 Tank Assembly 9 & 10 Upper Assembly Console Assembly Motor Lift Assembly Scrubhead Assembly Dashboard & Back Panel Assembly Squeegee Lift &... -
Page 4: Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION Operators must read and understand this manual before operating or maintaining this equipment. • Keep hands and feet clear of moving parts while machine is in operation. • All switches must be in the “OFF” position when charging batteries. •... -
Page 5: Electrical Requirements
ELECTRICAL REQUIREMENTS: This piece of equipment operates on 24 Volt DC. BATTERY REQUIREMENTS: 2 x 12V 105 Amp Hour 20 Hour Rate Deepcycle P/N 956712 BATTERY SERVICE AND INSTALLATION: Warning: Battery acid can cause burns. When working on or around batteries, wear protective clothing and safety glasses. -
Page 6: Control Panel Identification
1. Squeegee lift lever 2. Recovery dump hose 3. Dashboard control panel 4. Solution control lever 5. Solution dump hose 6. Quick disconnect aux. out (optional) 7. Food pedal 8. Circuit breaker - Brush 9. Circuit breaker - Vac 10. Main power 11. -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS BEFORE STARING, FAMILIARIZE YOURSELF WITH THE MACHINE AND ITS CONTROLS (SEE “MACHINE OVERVIEW” & CONTROL PANEL DIAGRAMS) 1. Filling: Fill the solution tank with the desired amount of water and add liquid cleaning solution to the proper dilution ratio. DO NOT USE powdered cleaning chemicals. Powders are unlikely to dissolve thoroughly, resulting in clogging the in-line solution filter. -
Page 8: Squeegee Adjustments
SQUEEGEE ADJUSTMENTS The squeegee set up is pre adjusted at the factory. Adjustments may be required to get optimum performance for different floors and conditions. Ensure that the scrubber is on a relatively flat surface. Turn on the main power switch and lower the scrubhead assembly to the floor. -
Page 9: Brush Installation/Removal
BRUSH INSTALLATION - REMOVAL INSTALLATION Brush Drive 1. Raise the scrubhead to the “UP” position by depressing the pedal (A) downward as shown on Fig. 1. 2. Center brush (D) under the scrubhead shroud while lining up the center hex drive hub and pressing the brush up until the brush engages on the drive hub. -
Page 10: Base Assembly
BASE ASSEMBLY... -
Page 11: Base Assembly
BASE ASSEMBLY Parts List Item Part No. Qty. Description 200102 Base 200250 Axle Weldment 712310 WSR-Flat .52 x .87 x .06 762332 Wheel, 8 x 2 w/Bearing 711375 Nut-Nyloc 3/8-16 711578 WSR-Flat 1/2 Brass 712318 WSR-Flat 3/4 x 1.12 x .12 712759 WSR-Flat 5/16 x 1.37 x .06 SS 712042... -
Page 12: Tank Assembly
TANK ASSEMBLY... -
Page 13: Tank Assembly
TANK ASSEMBLY Parts List Item Part No. Qty. Description 200101 Solution/Recovery Tank 200147 Bracket, Vac Motor 200173 Float, Housing 210122 Drain Hose, Wirelock 200232 Cable, Tank 200251 Stand Pipe Assembly 200258 Muffler Assembly 200270 Hose, 3/4 Solution Drain 200023 Garden Hose Cap 210409 Fitting, Brass 3/8 MPT 210410... -
Page 14: Upper Assembly
UPPER ASSEMBLY Parts List Item Part No. Qty. Description 200160 Tank Assembly 200178 Gasket, Lid 200136 Gasket, Solution Lid 200103 Tank Lid 712120 Shoulder Bolt 1/2 x 2 710178 SCR-MC 1/4-20 x 1/2 711503 WSR-Flat #10 711125 SCR-ST-B #10 x 1/2 760286 Wire Formed Hook 200176... -
Page 15: Console Assembly
CONSOLE ASSEMBLY Parts List for 200170 Item Part No. Qty. Description 200104 Console 200134 Console Bracket Right 200135 Console Bracket Left 200151 Hinge Bracket Weldment 200299 Dashboard ASM BD 712320 WSR-Nylon .22 x .45 x .04 712540 SCR-MC #10-24 x .37 SS 711575 WSR-Flat .31 x .75 x.06 711545... -
Page 16: Motor Lift Assembly
MOTOR LIFT ASSEMBLY Parts List Item Part No. Qty. Description 200120 Base Plate Weldment 260036 712310 WSR-Flat .52 x .88 x .06 711527 WSR-Flat 5/8 x 1.12 x .12 762340 Oilite Bushing 260041 Oilite Flanged Bushing 200115 Lift Arm Weldment 711713 E-Ring 710207... -
Page 17: Scrubhead Assembly
SCRUBHEAD ASSEMBLY Parts List Item Part No. Qty. Description 200109 Motor Platform Weldment - BD 200187 Brush Shroud Weldment 200194 Pin, Brush Release 200294 Shroud Strap 210066 Retainer Bolt 200293 Shroud Skirt 260183 Nut 1/4 NPT Nylon 833621 Key, 1/4 x 1/4 x 1.00 430035 Drive Hub 500033... -
Page 20: Squeegee Assembly Complete
Parts List for 200348 Item Part No. Qty. Description Item Part No. Qty. Description 710530 SCR-MC 8-32 x .50 BR 200064 Caster Wheel 3/8”-16 x 1-5/8” 200065 Castor Support Bracket 711026 Nut, Hex 8-32 Nyloc SS 200169 200X Sq Lift Weldment New 711241 SCR-Hex 3/8-16 x .75”... -
Page 21: Wiring Diagram
WIRING DIAGRAM... -
Page 22: Wiring Diagram - Ce
WIRING DIAGRAM CE MC20000CE... -
Page 23: Limited Warranty
Minuteman International, Inc. warrants to the original purchaser/user that this product is free from defects in workmanship and materials under normal use and service for a period of three years from date of purchase. In addition, Minuteman International, Inc. will, at its option, honor labor warranty claims for the first 12 months from date of sale, provided such claims are submitted through and approved by factory authorized repair stations.
