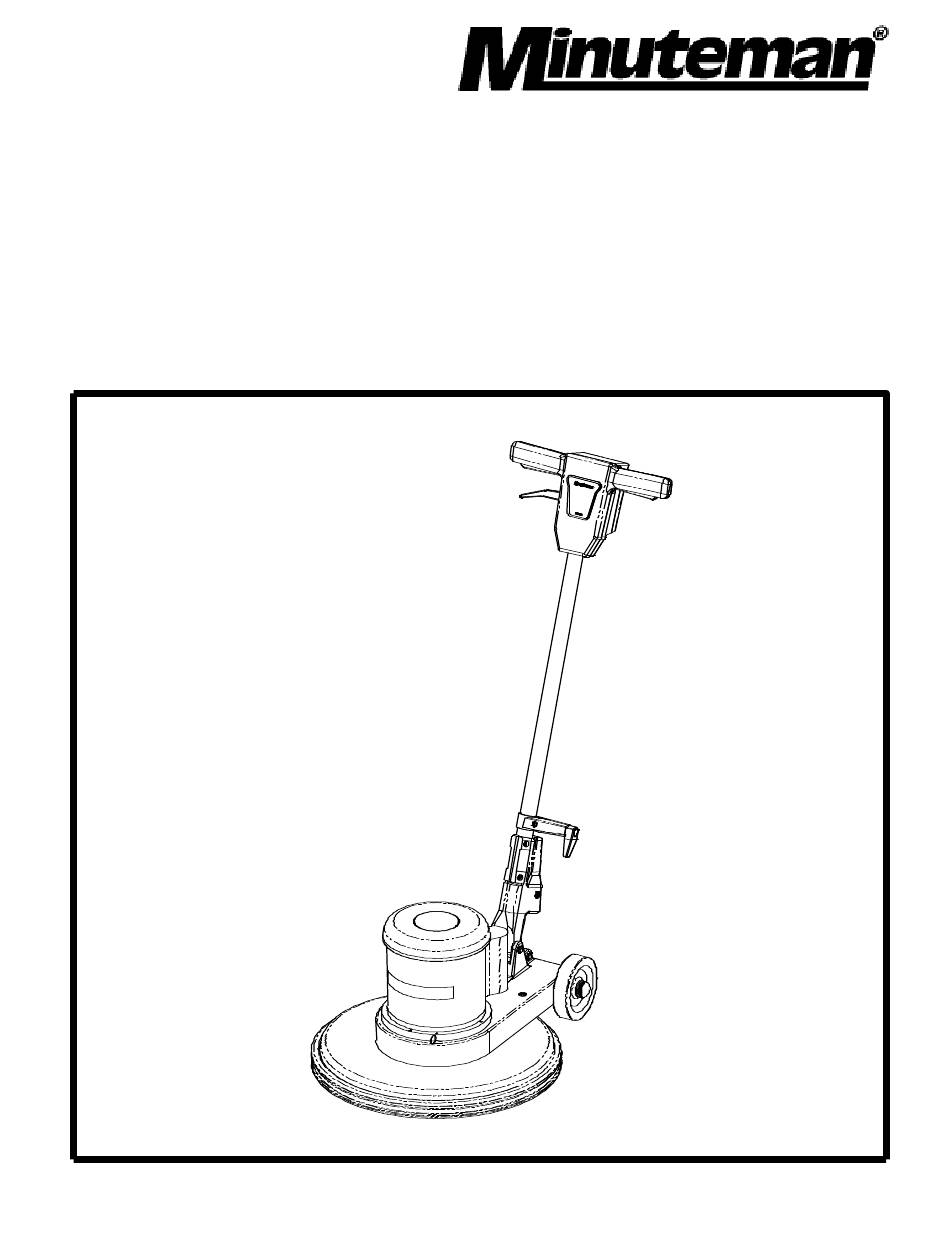

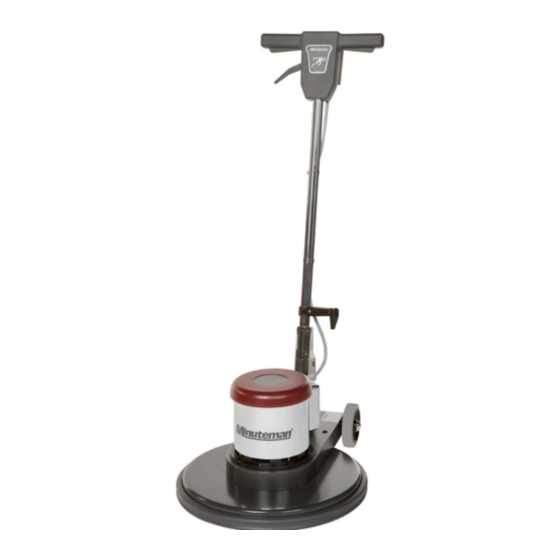

- Page 1 Front Runner Floor Machines Models: FR17115-11, FR17220-11, FR1722060-11, FR1722060-11SA, FR20115-11, FR20220-11, FR2022060-11, FR20115-2S, F420220-2S OPERATION SERVICE PARTS CARE Revised 07/2018...
- Page 2 FOR COMMERCIAL USE ONLY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING - To reduce the risk of fire, electric shock, or injury: • Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing. WARNING To reduce the risk of electrical shock - Do not expose to rain.
-
Page 3: Grounding Instructions
INSPECTION Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly inspected before shipment, and any damage is the responsibility of the delivery carrier who should be notified immediately. WARNING Read Instruction Manual before operating this piece of equipment. •... - Page 4 POUR USAGE COMMERCIAL SEULEMENT MODE D’EMPLOI SECURITAIRE Lorsque l’on utilise un appareil électrique, des précautions de base doivent toujours être suivies telles que: BIEN LIRE LE MODES D’EMPLOI AVANT USAGE AVERTISSEMENT Pour réduire les risques de feu, choc électrique ou blessure: Ne pas quitter l’appareil lorsque la prise de courant est branchée.
- Page 5 INSPECTION D éballer soigneusement en constatant s’il y, a lieu tout dommage apparent. Chacune des pièces d’équipement est entièrement inspectée à l’usine et tout dommage de transit est la responsabilité de la compagnie de transport qui devrait être prévenue immédiatement. AVERTISSEMENT •...
-
Page 6: User Maintenance Instructions
USER MAINTENANCE INSTRUCTIONS A qualified electrician should perform all service and repair. No user serviceable components are employed in this equipment. No lubrication of the motor is required. CORD STORAGE While not in use, storage can be accomplished by winding cord around handle assy. Cord should be completely unwound during operation. - Page 7 WIRING DIAGRAM...
- Page 9 RET RING-E TYPE M12 X 24 X 1.2 STL ZINC 715459 DECAL, FR MOTOR COVER 714205 WSR-WAVE M14 715382 DECAL, MINUTEMAN 715383 DECAL, MINUTEMAN, LIGHT GRAY 715062 DECAL, WARNING GENERAL FM 195039 PIN, FRONT PIVOT 714000 SC-SHCS M6 X 1.0 X 25 STL ZINC 195038...
- Page 11 SC-SHCS M6 X 1.0 X 25 STL ZINC 740238 CIRCUIT BREAKER, 120V – 18A 741400 CIRCUIT BREAKER, 240V – 10A 741507 WIRE-14G BLACK 4.72" WITH TERMINAL 844064 WAVE WASHER L+M KAS 22 (ROHS) 742399 PLUG, 13A/250V ( FOR FR1722060-11SA ONLY...
- Page 13 PART LIST ITEM PART NO. REQ’D DESCRIPTION 741701 STATIONARY SWITCH 741704 CENTRIFUGAL SWITCH, 200025 & 200025-1 GM 741705 CENTRIFUGAL SWITCH, 750571 & 750571-11 GM 741706 START CAPACITOR, 200025 & 200025-1 GM 741707 START CAPACITOR, 750571 & 750571-11 GM 741708 RUN CAPACITOR, 200025 & 200025-1 GM 741709 RUN CAPACITOR, 750571 &...
- Page 14 Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in workmanship and materials under normal use. Minuteman will, at its option, repair or replace without charge, parts that fail under normal use and service when operated and maintained in accordance with the applicable operation and instruction manuals.
- Page 15 Model Parts Labor Poly Travel** Cord Electric Group 5yrs 12yrs 90 days Battery Auto Scrubbers (incl. on board 5yrs 3yrs 12yrs 90 days charger) Battery and Manual Sweepers 3yrs 3yrs 12yrs 90 days Exceptions……. Model Parts Labor Poly Travel** Port A Scrub, all models (incl. on board 6months 12yrs 90 days...
- Page 16 “Excellence Meets Clean” Minuteman is a Full Line Manufacturer of Sweepers and Scrubbers, for Industrial Facilities. 14N845 U.S. Route 20 · Pingree Grove, Illinois 60140 USA Phone: (847) 683-5210 · Fax (847) 683-5207 www.minutemanintl.com 988344 Revision J 07/18 A Member of the Hako Group...
