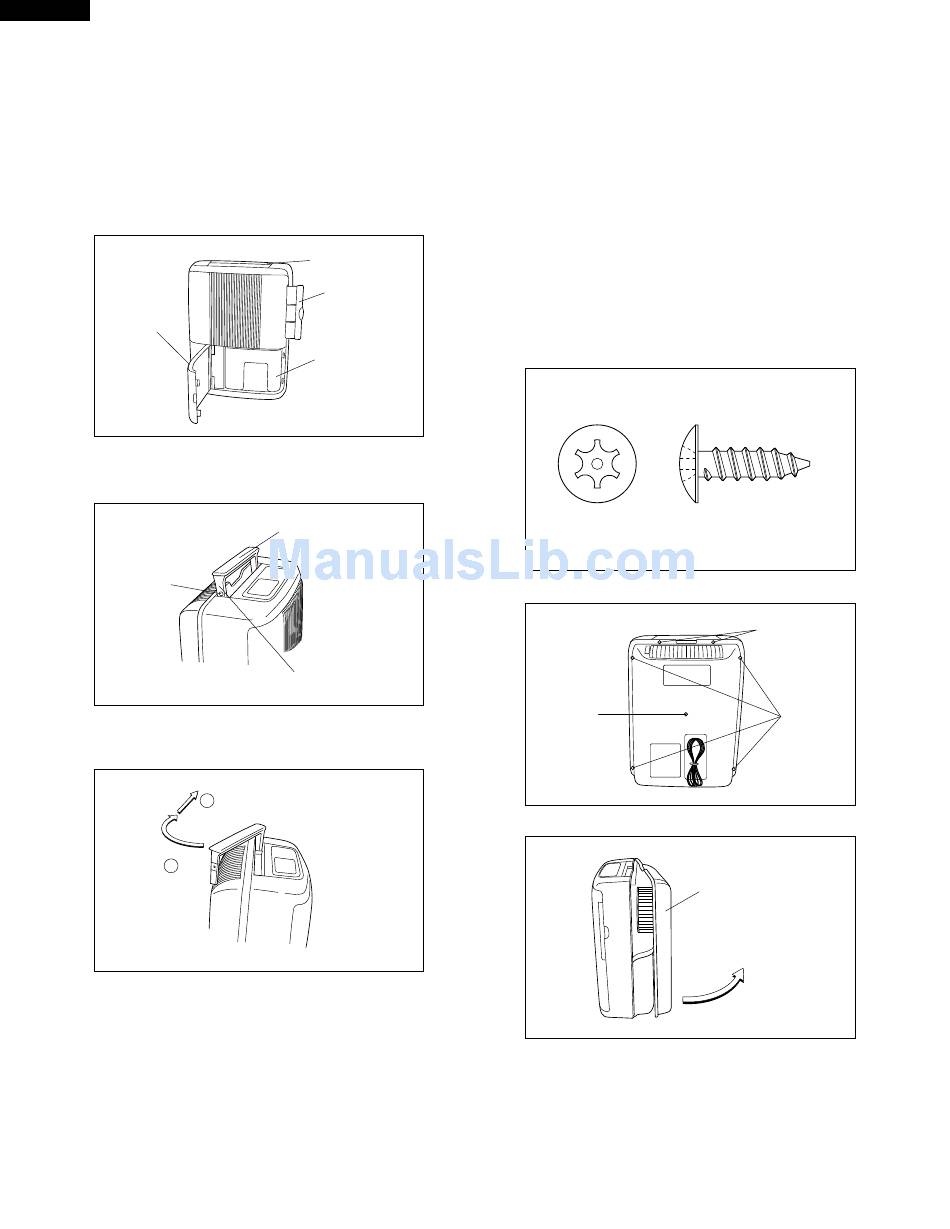

DISASSEMBLING AND REPLACEMENT OF MAIN PARTS

(*Assemble the parts in the reverse order of disassembling)
Before disassembling
Remove the filter frame and the water tank.
1. Removing the handle
Front cover
(1) Withdraw the handle from the main unit, remove
the flat countersunk head screw at the lest side,
and remove the handle stopper.
Screw
(2) Turn the released side of handle by 90˚C to remove
the handle from the square hole of main unit.
2. Removing the rear part of main unit
2
1
(1) *Remove the screws (2 pcs.) at the rear upper side
of main unit. [Screw A]
(2) Remove four screws on the rear of main body.
[Screw B]
(Two screws on the bottom of main body are longer.)
Handle
Filter frame
Water tank
Handle
Handle stopper
12
(3) Remove one screw at the center on the rear of main
body. [Screw C]
Use the special screwdriver which matches the
shape of the screw head as shown in the drawing.
(The special screwdriver is used as a
countermeasure to make the qualified engineer of
the manufacturer or its representative replace the
power cable if it is broken.)
Part code for request of special screwdriver
UKOG-A001FBE0 ; Special screw
Screw C
(Special screw)
(4) Withdraw the main unit rear part to this side.
Screw A
Screw B
Main unit rear part
