15000 / 23000 Appliances Hardware; Front Panel - Check Point 15000 Getting Started Manual

15000 / 23000 Appliances Hardware

Front Panel

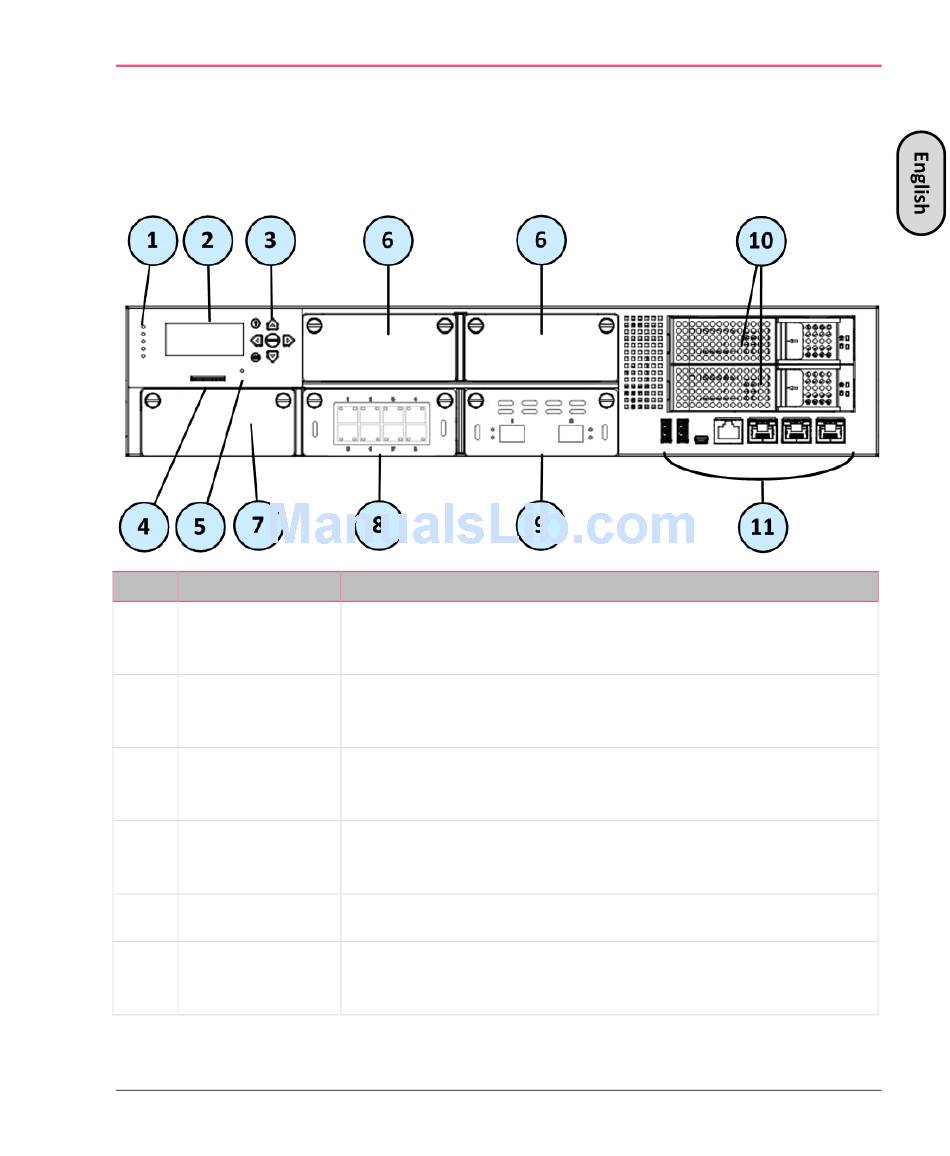

The line drawing shows the front panel elements in the 23800 appliance. Differences
in other appliances are described in the table.
Item Component
1 System LEDs
2 LCD screen
3 Keypad
4 Identification
service tag
5 Reset
6 Expansion line
cards
36 | Check Point 15000 and 23000 Appliances Getting Started Guide
Description
System power, hard disk activity, power supply status, alert,
and location ("Front Panel LCD
Allows system monitoring and configuration
LCD Screen" on page 40).
Use the buttons to control the LCD screen
Panel " on page 41).
A slide out card that identifies the appliance and shows its
serial number and MAC address.
Insert a pin for 5 to 8 seconds to perform a hardware reset.
Expansion slots (in 23500 and 23800 appliances only).
Screen" on page 40).

("Front Panel

("Using the LCD
