Summary of Contents for Gefen 1080P HDMI

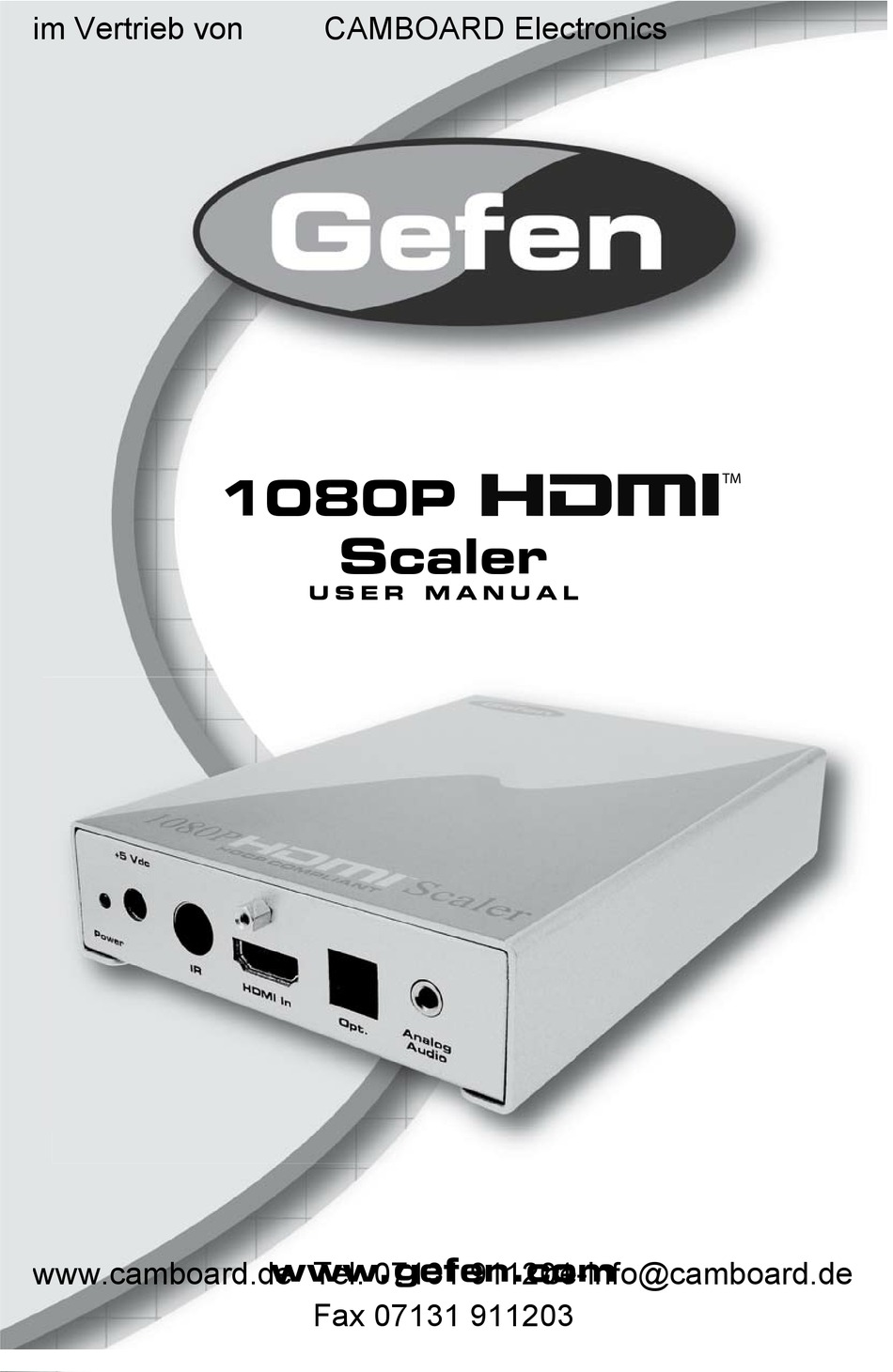

- Page 1 Vertrieb von CAMBOARD Electronics 1080P HDMI Scaler U S E R M A N U A L www.camboard.de Tel. 07131 911201 ce-info@camboard.de www.gefen.com Fax 07131 911203...
- Page 2 Chatsworth, CA 91311 support@gefen.com www.gefen.com Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. is a trademark of Gefen Inc. 1080P HDMI Scaler ©...
-
Page 3: Table Of Contents
CAMBOARD Electronics TABLE OF CONTENTS Introduction / Operation Notes Features Panel Descriptions Connecting And Operating The 1080P HDMI Scaler Operation Controls and Functions Operation Controls and Functions / Color Settings OSD Adjustment / Information / Using the RMT-SR-IR RMT-SR-IR Installation Input and Ouptut Resolutions Specifi... - Page 4 HDMI sources to resolutions up to 1080p. Anything from set- top boxes, DVD players to the next generation of gaming consoles including the Xbox 360 Elite and Playstation 3 can be plugged into the 1080P HDMI Scaler.
-
Page 5: Features
48MB frame memory for frame rate conversion. • Supports DDWG standard for DVI compliant monitors • HDMI 1.2a compliant Includes: (1) 1080P HDMI Scaler (1) 5V Power Supply (1) 6 ft HDMI (M-M) cable (1) User’s Manual www.camboard.de Tel. 07131 911201 ce-info@camboard.de... -
Page 6: Panel Descriptions
im Vertrieb von CAMBOARD Electronics PANEL DESCRIPTIONS Front view 5V DC Power HDMI Mono-Lok Analog Stereo Input Input Audio Input Power Status IR Sensor S/PDIF (Optical) Audio Input Back view S/PDIF (Optical) OSD Menu Menu UP Audio Output Button Button Analog Stereo HDMI Mono-Lok Menu DOWN... -
Page 7: Connecting And Operating The 1080P Hdmi Scaler
Connect your HDMI or DVI (with a DVI to HDMI adapter) source to the input of the 1080P HDMI Scaler. If using a separate audio input, plug it into the 1080P HDMI Scaler by either the Toslink (digital optical) or stereo mini jack inputs. -
Page 8: Operation Controls And Functions
im Vertrieb von CAMBOARD Electronics OPERATION CONTROLS AND FUNCTIONS After you power on the unit, press the menu button and it will bring up the main menu as follows: Main Menu Video Output Info Picture Mode Color Tone H-Position Source Contrast SVGA V-Position... -
Page 9: Operation Controls And Functions / Color Settings
NOTE: Normal, Warm, or Cool set- tings cannot be adjusted. Please use the USER option to use a custom setting that will be saved in the 1080P HDMI Scaler. Value of normal setting www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203... -
Page 10: Osd Adjustment / Information / Using The Rmt-Sr-Ir
Connect the HDMI/DVI source to the 1080P HDMI Scaler Connect the HDMI/DVI displays to the DVI output, with the proper cable and/or adapter, on the 1080P HDMI Scaler. Connect the 5VDC power supply to the 1080P HDMI Scaler. Controlling the 1080P HDMI Scaler using the RMT-SR-IR: By Pressing... -
Page 11: Rmt-Sr-Ir Installation
im Vertrieb von CAMBOARD Electronics RMT-SR-IR INSTALLATION 1. Remove battery cover from the back of the RMT-SR-IR remote. 2. Verify that dip switches 1 & 2 are in the down (OFF) position. 3. Insert the battery, hold the battery so that you can see the positive side fac- ing up. -
Page 12: Input And Ouptut Resolutions
Vertrieb von CAMBOARD Electronics INPUT AND OUTPUT RESOLUTIONS Input: The 1080P HDMI Scaler can accept a wide variety of PC and HD resolutions as follows. VGA @ (60/72/75/85) / SVGA @ (56/60/72/75/85) XGA @ (60/70/75/85) / SXGA @ (60/75/85) UXGA @ 60 (1600x1200) WXGA @ 60 (1280x800 &... -
Page 13: Specifi Cations
im Vertrieb von CAMBOARD Electronics SPECIFICATIONS Digital Video Amplifi er Bandwidth............165 MHz Input DDC Signal ..............5 Volts p-p (TTL) Input Video Signal ................1.2 Volts p-p Single Link Range ............... 1080p/1920 x 1200 Input/Output HDMI Connector .......... Type A 19 pin female Input/Output Digital Audio ............ -
Page 14: Terminology
im Vertrieb von CAMBOARD Electronics TERMINOLOGY Short form for Display Data Channel. It is a VESA standard for communication between a monitor and a video adapter. Using DDC, a monitor can inform the video card about its properties, such as maximum resolution and color depth. The video card can then use this information to ensure that the user is presented with valid options for confi...
