Summary of Contents for Atlona AT-HDR-M2C-QUAD

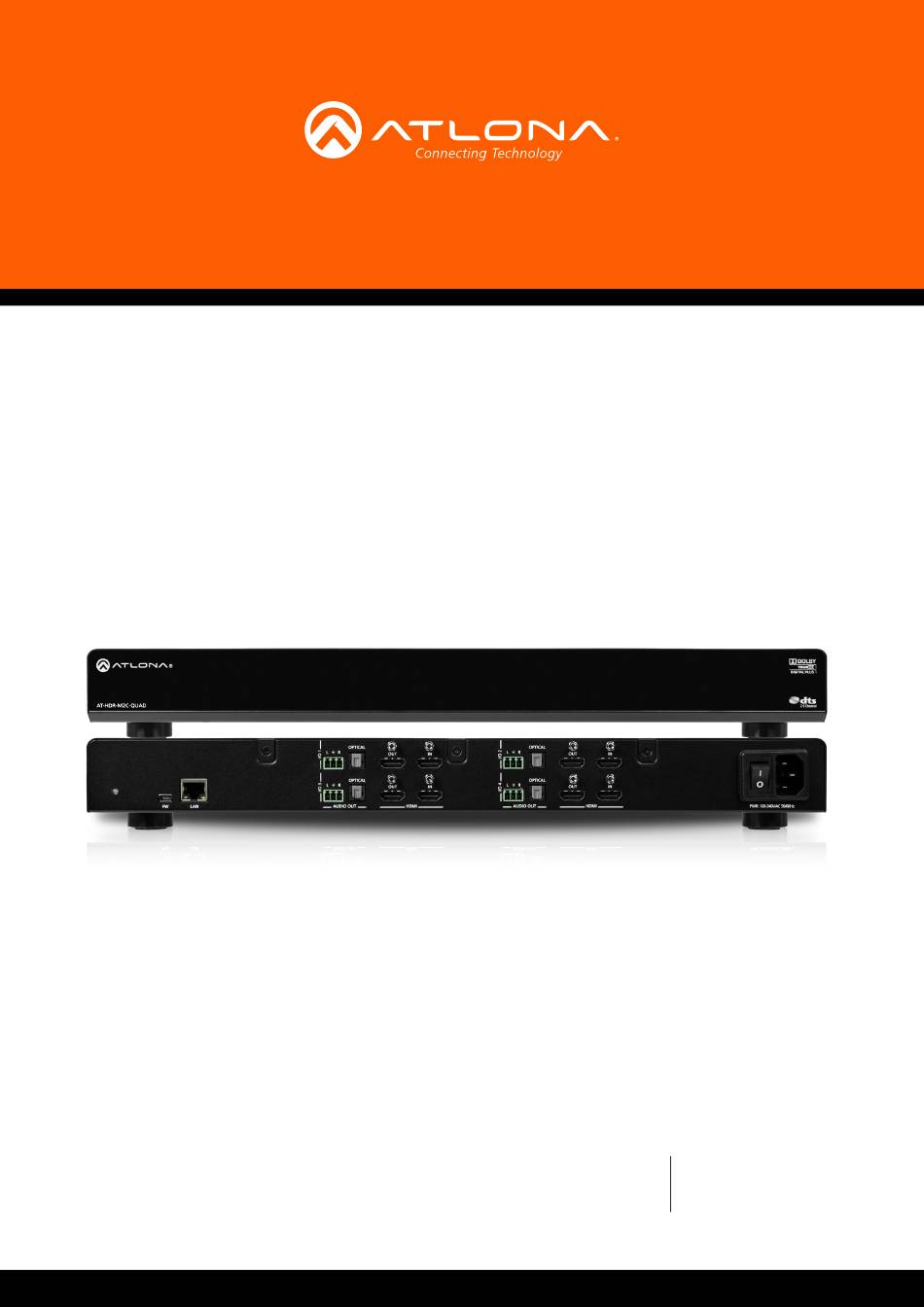

- Page 1 4K / HDR Multichannel Digital to Two-Channel Audio Converter Atlona Manuals AT-HDR-M2C-QUAD Audio...
- Page 2 Version Information Version Release Date Notes 07/18 Initial release AT-HDR-M2C-QUAD...
- Page 3 Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take a extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware.
- Page 4 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
- Page 5 Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
- Page 6 Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations. AT-HDR-M2C-QUAD...
-
Page 7: Table Of Contents
Video Info Video Info Audio Info Video page Video Audio page I/O 1 - I/O 4 Config page Configuration System page Network System Appendix Updating the Firmware Using the Web GUI Using USB Mounting Instructions Default Settings Specifications Index AT-HDR-M2C-QUAD... -
Page 8: Introduction
HDMI data rates up to 18 Gbps. This quad HDMI audio conversion device includes EDID management features as well as audio volume and bass / treble controls for each converter, all available via Ethernet through the Atlona Management System (AMS), the web GUI, or a control system. The HDR-M2C-QUAD is ideal for serving surround sound and/or two-channel audio systems from up to four HDMI sources, while facilitating pass-through to a matrix switcher. -

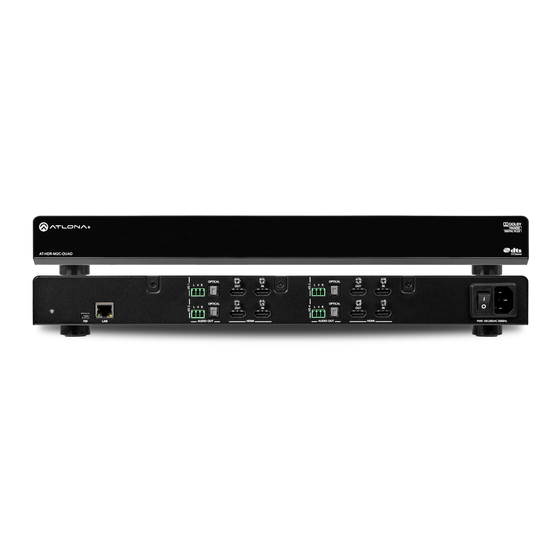

Page 9: Panel Description
## for more information. RESET LED Indicator This indicator displays the current state of the AT-HDR-M2C-QUAD. During normal operation, this indicator will glow solid green. When a firmware update is in process, it will flash green. Connect a mini USB cable from a computer to this port to update the firmware. Refer to ## for more information. -
Page 10: Installation
Installation Audio Connector The AT-HDR-M2C-QUAD provides analog audio output of two-channel audio, using the included 3-pin captive-screw terminal block. 1. Use wire strippers to remove a portion of the cable jacket. 2. Remove at least 3/16” (5 mm) from the insulation of each wire. -
Page 11: Connection Instructions
1. Connect a UHD/HD source to each of the HDMI IN ports on the AT-HDR-M2C-QUAD. 2. Connect an HDMI cable from each HDMI OUT port on the AT-HDR-M2C-QUAD to a display or other sink device. HDMI OUT ports support multichannel audio. -
Page 12: Ip Configuration
IP address on the network. If the AT-HDR-M2C-QUAD is unable to detect a DHCP server within 15 seconds, then the unit will be placed in Auto IP mode and will be assigned an IP address within the range 169.254.xxx.xxx. If this occurs, the AT-HDR-M2C- QUAD can be set to a static IP address. -
Page 13: Setting The Ip Address Using The Web Gui
21), in the web GUI, can be used to set the AT-HDR-M2C-QUAD to either DHCP or static IP mode. In order to access the web GUI, the IP address of the AT-HDR-M2C-QUAD must be known. Refer to Introduction to the Web GUI (page 14). -
Page 14: The Web Gui
The Web GUI Introduction to the Web GUI The AT-HDR-M2C-QUAD includes a built-in web GUI. Atlona recommends that the web GUI be used to set up the AT-HDR-M2C-QUAD, as it provides intuitive management of all features. The AT-HDR-M2C-QUAD is shipped with DHCP enabled. Once connected to a network, the DHCP server will automatically assign an IP address to the unit. -
Page 15: Menu Bar
Once the desired menu element is highlighted, click the left mouse button to access the settings within the menu. Menu bar In this example, clicking A/V Settings, in the menu bar, will display the A/V Settings page. AT-HDR-M2C-QUAD... -
Page 16: Info Page
The model SKU of this product. Software Version The version of firmware that the AT-HDR-M2C is running. Always make sure to check the AT-HDR-M2C product page, on the Atlona web site, for the latest version of firmware. Boot Version The version of the boot loader. -
Page 17: Video Info
I/O 1 - I/O 4 Audio Format The audio format detected on the input. Sampling Rate The sampling rate of the input audio signal, expressed in kilohertz (kHz). Channels The number of audio channels detected on the input signal. AT-HDR-M2C-QUAD... -
Page 18: Video Page
HDCP compliant displays. Disabling this feature will not decrypt HDCP content. • ON - Reports to the source device that the AT-HDR-M2C is an HDCP-compliant sink. • OFF - Reports to the source device that the AT-HDR-M2C is a non-HDCP-compliant sink. AT-HDR-M2C-QUAD... -
Page 19: Audio Page
Click and drag this slider bar to adjust the bass on the analog and TOSLINK outputs. Range: -15 to 15. Output Treble Click and drag this slider bar to adjust the treble on the analog and TOSLINK outputs. Range: -15 to 15. AT-HDR-M2C-QUAD... -
Page 20: Config Page
Old Password Confirm New Password Enter the current password for the “root” username in Verify the new password by retyping it in this field. this field. The default password is “Atlona”. New Username This field cannot be changed. Save Click this button to save all changes. -
Page 21: System Page
The System page is divided into two sections: Network and System. The Network section allows configuration of the IP settings of the AT-HDR-M2C-QUAD. The System section provides controls for resetting the AT-HDR-M2C- QUAD to factory-default settings and updating the firmware. -
Page 22: System
The Web GUI System Factory Default Click this button to reset the AT-HDR-M2C-QUAD to factory-default settings. Choose File Click this button to select the firmware file. Update Click this button to begin the firmware update procedure. Refer to Updating the Firmware (page 23) for more information on firmware updates. -
Page 23: Appendix
Appendix Updating the Firmware Updating the firmware can be completed using either the USB interface or the web GUI. Atlona recommends using the web GUI for updating the firmware. However, If a network connection is not available, the AT-HDR-M2C-QUAD firmware can be updated using a USB-A to USB mini-B cable. - Page 24 7. Click the OK button to begin the firmware update process. Click the Cancel button to abort the process. 8. The update process will take approximately 60 seconds and will automatically reboot the AT-HDR-M2C-QUAD. During the update process, the PWR LED indicator will flash.
-
Page 25: Using Usb
2. Connect the USB-A to USB mini-B cable from the computer to the FW port on the rear panel of the AT-HDR- M2C-QUAD. 3. Power-on the AT-HDR-M2C-QUAD. After a few moments, a USB Drive folder will be displayed. If this folder is not displayed, automatically, select the USB UPDATE drive from Windows Explorer, as shown below. -
Page 26: Mounting Instructions
Appendix Mounting Instructions The AT-HDR-M2C-QUAD includes two rack ears, which can be used to install the unit into a rack. Use the two enclosure screws, on the sides of the unit to attach the rack ears. 1. Using a small Phillips screwdriver, remove the two screws from the left side of the enclosure. -
Page 27: Default Settings
Atlona System Network IP Mode DHCP Netmask Gateway Telnet Port Telnet Login Mode Telnet Timeout (seconds) Broadcast NOTE: When the AT-HDR-M2C-QUAD is set to static IP mode, then the IP, Netmask, and Gateway settings will be used by default. AT-HDR-M2C-QUAD... -
Page 28: Specifications
1080p - Meters HDMI IN / HDMI OUT Signal Maximum TMDS Clock 600 MHz HDMI HDCP Temperature Fahrenheit Celsius Operating 32 to 122 0 to 50 Storage -4 to 140 -20 to 60 Humidity (RH) 20% to 90%, non-condensing AT-HDR-M2C-QUAD... - Page 29 44.00 x 438.00 x 254.00 H x W x D (w/ ears) 2.18 x 18.93 x 10.23 55.50 x 481.00 x 260.00 Weight Pounds Kilograms Device 7.15 3.24 Certification Power Supply CE, FCC, cULus, RoHS, CCC, RCM Product CE, FCC AT-HDR-M2C-QUAD...
-
Page 30: Index
Subnet mask setting FCC statement Features Firmware Telnet port displaying default updating setting Treble adjusting Gateway setting Users adding editing primary user name Installation removing configuration IP address default setting Volume IP settings output, adjusting default Warranty Web GUI AT-HDR-M2C-QUAD... - Page 31 • 408.962.0515 • 877.536.3976 © 2018 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability...
