58 C 4: M
HAPTER AINTAINING
Upgrading Software
Using TFTP
S
OFTWARE

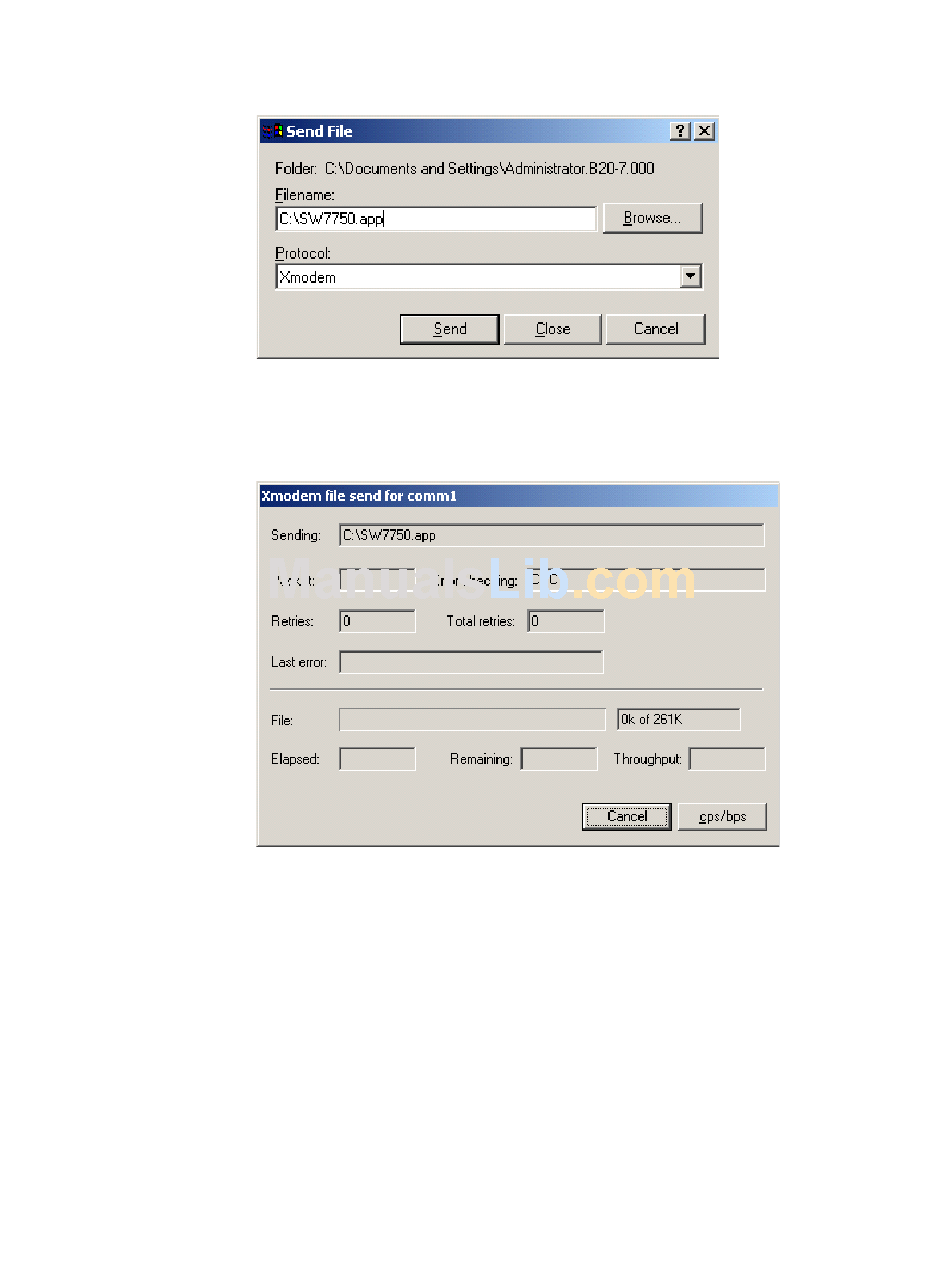

Figure 37 Send File dialog box
11 Change the protocol name for the download to Xmodem.
12 Click Send. The dialog box shown in Figure 38 displays.
Figure 38 Xmodem File Send Dialog Box
13 After the download is complete, the system interface is shown, as follows:
Loading ...CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC done!
14 Select to return to the Boot Menu.
0
15 From the boot menu, select option
TFTP (Trivial File Transfer Protocol) is a simple file transfer protocol that is used
without complex interaction between clients and servers.
The client initiates a TFTP transmission. To download files, the client sends a read
request packet to the TFTP server, receives the packet from the server, and sends
the acknowledgement to the server. To upload files, the client sends a write
request packet to the TFTP server, sends the data packet to the server, and receives
the acknowledgement from the server.
The Switch 7750 provides the functions of the TFTP client.
then select the newly downloaded file.
