Fabric Module

OMPONENTS
There are two Fabric modules for the Switch 7750:
Fabric 64 (3C16857 or 3C16857R)
■
Fabric 32 (3C16872)
■
PoE Fabric 96 (3C16886)
■
The Fabric 64 and Fabric 32 are not interchangeable. You can install the Fabric 32
only in a 4-slot chassis. You can install the Fabric 64 only in the 7-slot chassis. You
can install the PoE Fabric 96 in both chassis.
The Fabric module is the core of Switch 7750 system. It has the following
functions:
Connects the I/O modules through the backplane and forwards Layer 2 and
■
Layer 3 data
Manages and calculates routing
■
Performs the switch's software upgrade and system reset functions
■
Monitors system power and the fan frame
■

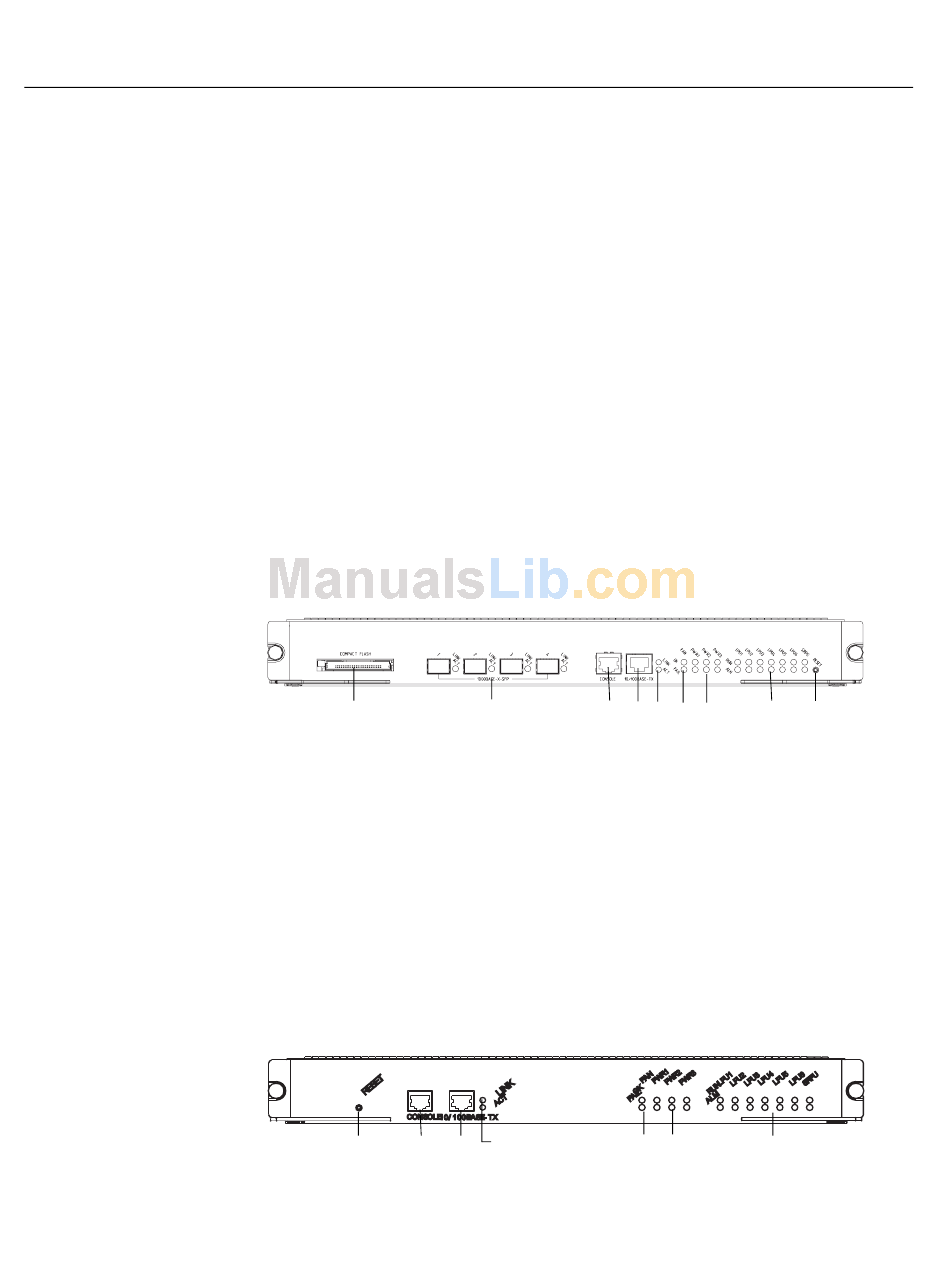

Figure 1 illustrates the front panel of the PoE Fabric 96.
Figure 1 PoE Fabric 96
3C16886
1
1 Compact Flash port
2 1000BASE-X-SFP ports
3 Console port
4 Ethernet port
5 Ethernet port LEDs
6 Fan LEDs
7 Power LEDs
8 I/O module LEDs
9 Reset button
Figure 2 illustrates the front panel of the Fabric 64.
Figure 2 Fabric 64
3C16857 3C16857
1 2
1 Reset button
2 Console port
3 Ethernet port
4 Ethernet port LEDs
2
3 4 5 6 7
3 4
8
9
5 6 7
