3Com 3C16895 Installation Manual page 46

46 C 3: C
HAPTER ONFIGURING THE
S 7750
WITCH

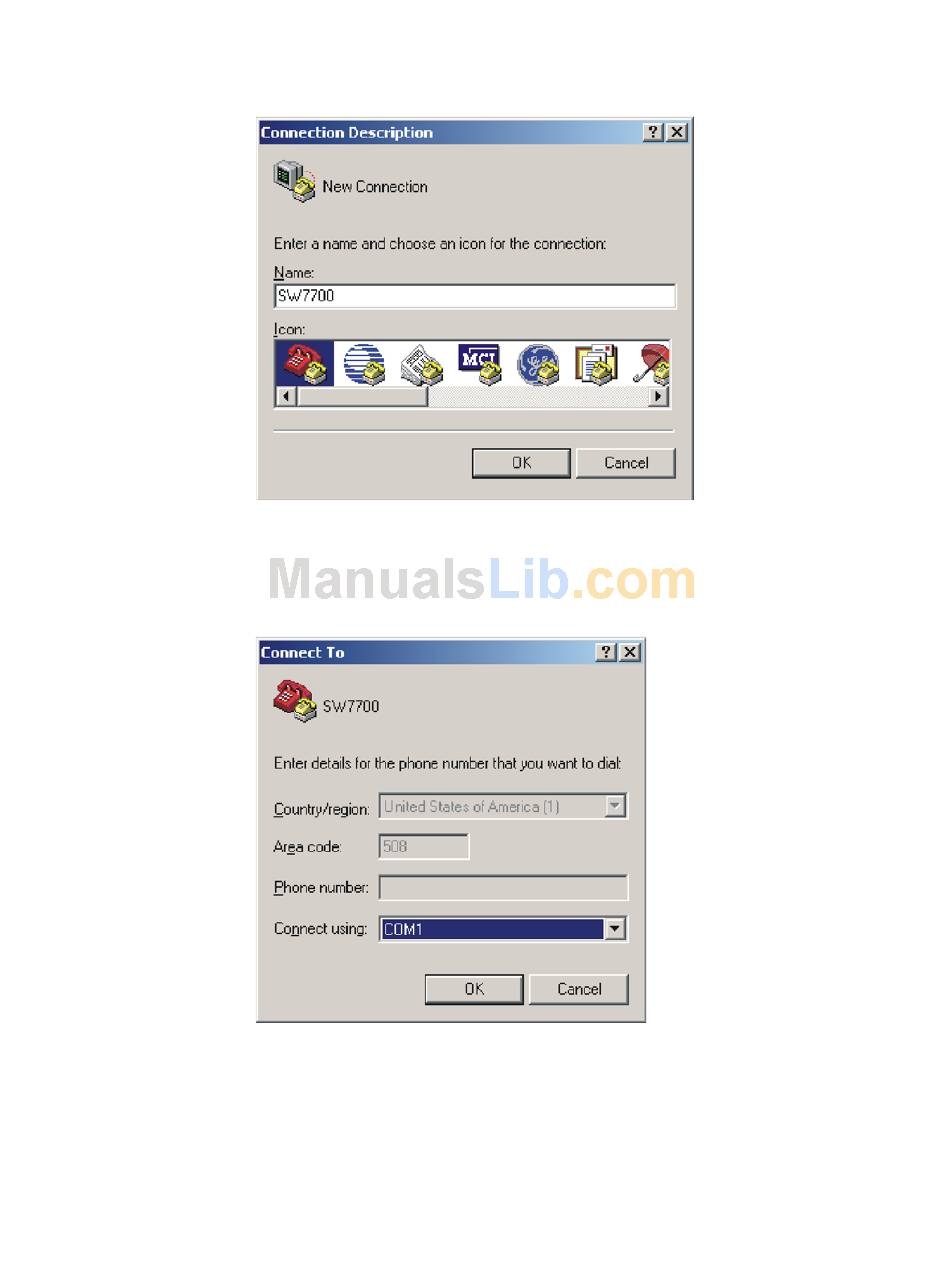

Figure 32 Connection Description Dialog Box
2 Enter the name of the new connection in the Name field and click OK. The dialog
box, shown in Figure 33 displays. Select the serial port to be used from the
Connect using dropdown menu.
Figure 33 Properties Dialog Box
3 After selecting serial ports, click OK. The port shown in Figure 34 displays and you
can set serial port parameters. Set the following parameters:
Baud rate = 9600
■
Databit = 8
■
Parity check = none
■
Stopbit = 1
■
Flow control = none
■
