3Com 3C16895 Installation Manual page 47

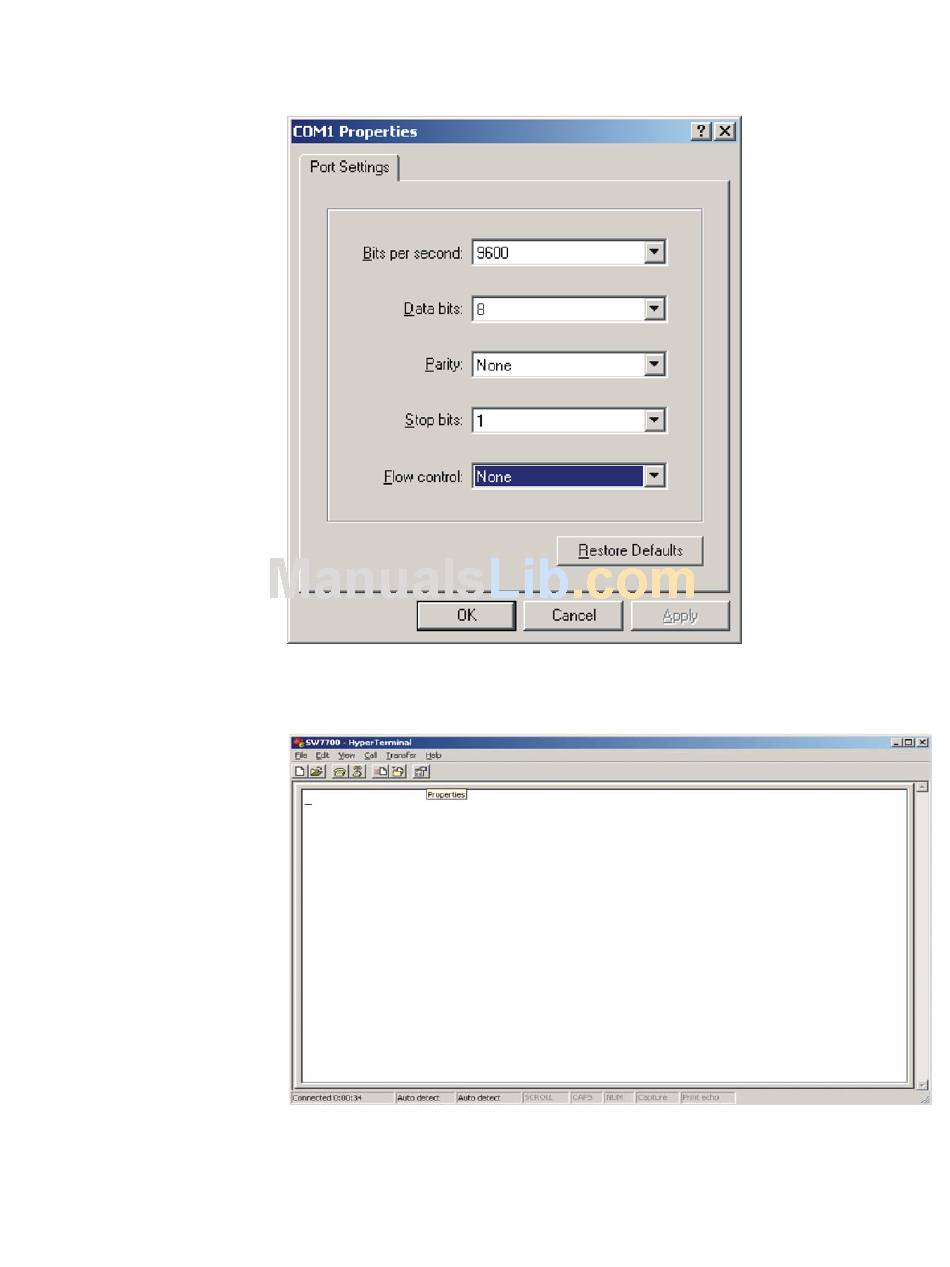

Figure 34 COM1 Properties Dialog Box
4 Click OK. The HyperTerminal dialogue box displays, as shown in Figure 35.
Figure 35 HyperTerminal Window
5 Select Properties.
6 In the Properties dialog box, select the Settings tab, shown in Figure 36.
7 Select VT100 in the Emulation dropdown menu.
8 Click OK.
Setting Terminal Parameters 47
