- Page 1 ® 《User Manual》 H501A PLEASE READ THE MANUAL CAREFULLY BEFORE USE.
- Page 2 1.Quad + Phone/Pad 2.Quad + Phone +Relay 3.Quad + Transmitter...
- Page 3 Caution: For safety, the quadcopter is default set to CAN NOT FLY WHEN NO GPS. If you prefer to fly when GPS is not available, please reset the value as instructed below before using. Pull the throttle stick to the lowest position and press the Elevator stick for 1.5 seconds to enter into the MAIN MENU interface.
-
Page 4: Important Safety Notes
X-Hubsan H501A Important safety notes Operation: Be extremely careful and responsible when using the quad. Small electronic components can be damaged due to crashes or exposure to water. To avoid any injuries, do not use the quad with broken or damaged components. - Page 5 WWW.HUBSAN.COM Safety Advisory Notice for Lithium-Polymer (LIPO) Batteries LiPo batteries are different from conventional batteries in that their chemical contents are encased in a relatively lightweight foil packaging. This has the advantage of significantly reducing their weight but it does make them more susceptible to damage if roughly or inappropriately handled.
-
Page 6: Table Of Contents
H501A TROUBLESHOOTING 5 X-Hubsan App 6 TRANSMITTER SCHEMATIC DIAGRAM 6.1 INTRODUCTION 6.1.1 TRANSMITTER KEY FUNCTION H501A Spare Part Chart 6.1.2 INSTALL THE TRANSMITTER BATTERY 6.1.3 TRANSMITTER STICK CALIBRATION 6.1.4 ADJUSTABLE 5.8GHZ FREQUENCY 6.1.5 ANTENNA INSTRUCTION 7 START TO FLY 7.1 FLIGHT ENVIRONMENT 7.2 SAFETY CHECK BEFORE FLIGHT... -
Page 7: Introduction
WWW.HUBSAN.COM Introduction Thank you for buying the HUBSAN product. It is designed as an easy-to-use, multi-functional RC model, capable of hovering and acrobatic flight maneuvers. Please read the manual carefully and follow all the instructions. Be sure to keep the manual for future reference. FPV：FFirst Person View，this feature enables you to experience every live moment of the flight from the drone's point of view. -
Page 8: 2Quad Copter

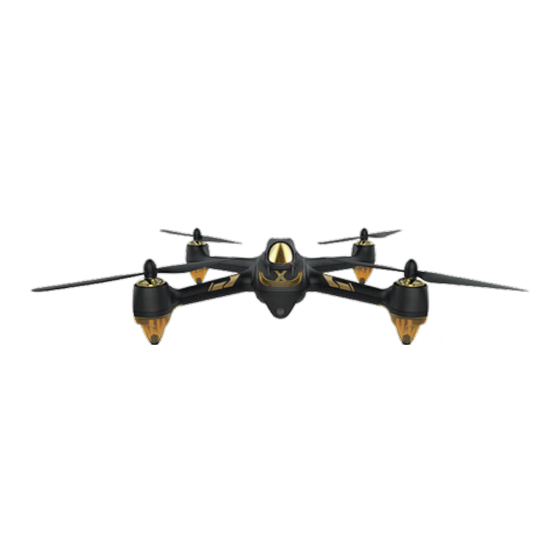

X-Hubsan H501A 2.Quadcopter Propeller B Propeller A Motor LED Light Upper Body Shell Lower Body Shell 1080P Camera Battery Compartment TF Slot [10] Rubber Feet 2.1 Quadcopter motor LED indicator Front LED is blue; Back LED is red. 1.Power on: 4 LED indicators blink simultaneously. -
Page 9: Charging
WWW.HUBSAN.COM 3.3 Charging Connect the battery to the balance charger and the wall charger. The left LED indicator on the balance charger will remain red and the right LED indicator will remain off when charging. The battery is fully charged when the right LED indicator turns green. It takes approximately 180 minutes to fully charge the battery. -
Page 10: Removing The Propellers
5 X-Hubsan App Hubsan designed an APP to go with the new X-Hubsan H501A. Users can use the APP to control the quad, take picture/videos and set the parameters of the quad. It is recommended to fly the quad within 100 meters and use smart devices with larger screen for the best visual experience. -
Page 11: Transmitter Key Function
WWW.HUBSAN.COM 6.1.1 Transmitter key function 17 2.4G Antenna 18 5.8G Antenna 13 GPS Switch 14 Home switch 12 Headless mode switch 15 Follow Me switch 11 T1 11 T2 16 LCD 19 Strap fastener (2)Elevator/Rudder stick (1)Throttle/Aileron stick 7 Photo/EXIT button 8 Video/ENTER button 3 Rudder trim button 4 Aileron trim button... - Page 12 X-Hubsan H501A Mode/ Control Function Push the stick forward or backward and the quadcopter will ascend or decend; Push the stick left or right and the quadcopter Throttle/Rudder stick will rotate in counter clockwise or in clockwise Push the stick forward or backward and the quadcopter will fly forward or backward;Push the stick left or right and the quadcopter...
-
Page 13: Install The Transmitter Battery
WWW.HUBSAN.COM Display flight data and live stream 2.4G Antenna Transmit control signals 5.8G Antenna Receive the video transmission Strap fastener To fasten the strap on tansmitter 6.1.2 Install the transmitter battery Install 8 x AA batteries Close the cover Remove the cover according to the correct polarities Do not mix old and new batteries Do not mix different types of batteries... -
Page 14: Adjustable 5.8Ghz Frequency
X-Hubsan H501A 左手油门 Mode 2 Mode 2/Mode1 左手油门/右手油门 右手油门 Mode 1 右手油门/左手油门 Mode 2/Mode1 The transmitter mode can be shifted according to the above operation. 6.1.4 Adjustable 5.8GHz frequency The transmitter will automatically find the best frequency to ensure a good quality live video. -
Page 15: Antenna Instruction
WWW.HUBSAN.COM 6.1.5 Antenna instruction For maximum communication range, the 2.4G antenna should point skyward without obstructions in between; the 5.8G antenna should be bent vertically and have the side with ‘Hubsan’ logo pointing at the quadcopter. The maximum range of the video transmission is approximately 300 meters. -
Page 16: Fly With App
3.Click HUBSAN_H501A_XXXXXX,and password is 12345678.The password cannot be changed by user. 4.Connection completed 5.Open X-Hubsan APP, choose Hubsan H501A to enter into the user interface for flight. NOTICE： For safety,please don't use the smart device for other purposes while it is connecting with Hubsan App. -
Page 17: Horizontal Calibration
WWW.HUBSAN.COM Move the right stick left to right 左右拨动右边摇杆，直到遥控器 Pull the left stick to the 左边摇杆向左打到最大量程 quickly, the LCD screen displays 提示“calibrate compass 1” left side “Calib compass 1” 左右来回拨动右边摇杆，直到 左边摇杆向左打到最大量程 左边摇杆向左打到最大量程 遥控器显示“calib compass1” 开始 START 开始 左右来回拨动右边摇杆，直到 左边摇杆向左打到最大量程 左边摇杆向左打到最大量程 遥控器显示“calib compass1”... -
Page 18: Rotation Calibration
X-Hubsan H501A 7.4.4 Rotation calibration Rotation calibration is required when the quadcopter yaw during flight. Please follow the calibrating procedures: 1) Push the left stick up, and move the right stick from left to right quickly until the 4 LED indicators blink slowly ;... - Page 19 WWW.HUBSAN.COM Transmitter Remarks Transmitter Mode 2 Remarks Mode 2 The throttle stick controls the ascent and descent . Push up the stick and the X4 will ascend. Pull down the stick and the X4 will descend. When the stick is in the center, the X4 will hover and hold its alititude automatically .
-
Page 20: Advanced Performance Setup
X-Hubsan H501A Transmitter Remarks Mode 2 Transmitter Remarks Mode 2 The GPS Switch is position-hold function switch. In position 1 (up), the GPS functions are position 1 (upward) position 2 (downward) active. In position 2 (down), the GPS functions are deactivated. -
Page 21: Headless Mode
WWW.HUBSAN.COM 8.3 Headless mode Headless mode means the X4 will default the current head direction as its head when enter into the headless mode. Push the A switch up to enter Headless mode and push the A switch down to cancel Headless mode. -
Page 22: Home Mode
X-Hubsan H501A Push the B switch up to enter Follow Me mode and push the B switch down to cancel Follow Me mode. When the switch is pushed up, the screen will display ‘Follow Mode’ in green and the quadcopter will turn and have the camera pointing at the transmitter. Only the throttle stick will still function under Follow Me mode. -
Page 23: Failsafe Mode
The X4 cannot avoid obstacles automatically while in Failsafe mode. If the power is low, please land the quadcopter in case of any damages. H501A TROUBLESHOOTING 1. Transmitter and X4 do not pair 1) Check if the transmitter and the X4 are both power on or not. - Page 24 X-Hubsan H501A 4. No Video or Video is Under Strong Interference 1)Check if any strong interference sources around or not 2)Check if the frequencies of the X4 and the transmitter are under cross interference or not. (If so,please re-pair the X4 and the transmitter) 5.
-
Page 25: Schematic Diagram
WWW.HUBSAN.COM SCHEMATIC DIAGRAM Black & White Black & White Black Black Black Yellow Yellow Black Black & White Black & White Black Yellow Black Black Black Yellow... -
Page 26: H501A Spare Part Chart
X-Hubsan H501A H501A Spare Part Chart H501A-01 H501S-01 H501S-17 H501S-03 Body Shell- Black Body Shell- White Eye Lampshade Canopy H501S-18 H109-04 H501S-04 H501S-05 Motor LED Lampshade Rubber Feet Screw Propeller A- Gold H501S-05B H501S-06 H501S-06B H501S-07 Propeller A- Black Propeller B- Gold... - Page 27 WWW.HUBSAN.COM H501A-03 H501A-05 H501S-13 H501S-14 5 . 8 G Tr a n s m i s s i o n GPS Module Compass Module Li-Po Battery Module H501C-02 H501S-27 H301S-12 H501S-16 Battery Cover H906A TX Balance Charger Propeller Wrench H301S-11...
- Page 28 www.HUBSAN.com Hubsan Technology Company Limited...
