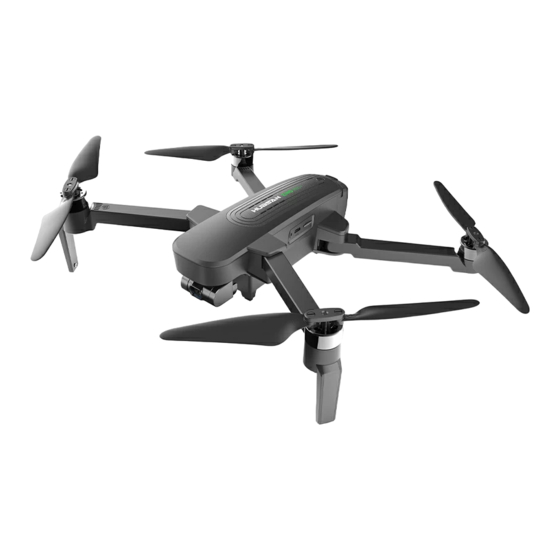

- Page 1 ® ZI NO P RO+ 《 U s er M a nu al》 Version 2.0...
- Page 3 Discl aimer & W ar nin g All users must read product operating instructions as well as this liability disclaimer before using any Hubsan product. By using a Hubsan product(s), users are accepting the terms and conditions of Hubsan liability and opera- tional guidelines.
- Page 4 IMPO R T A NT SAFETY INFO R M ATI O N OPERATION Be extremely careful and responsible when using the aircraft. Small electronic components can be damaged due to crashes or exposure to moisture / liquid. To avoid any injuries, do not use the aircraft with broken or damaged components.
- Page 5 Hubsan Safety Advisory Notice for Intelligent battery ● If you do not plan to fly the aircraft for a long time, store the battery ~50% charged to maintain battery performance and life. ● Please use Hubsan chargers for battery charging. ●...
-
Page 6: Table Of Contents
Contents Important safety information 4. Flight Controller Using this manual 4.1 Flight Control Mode Read Before the First Flight 4.2 Flight Orientation Indicator 1.Aircraft (Single-Color Lamp) 1.1 Aircraft Diagram 4.3 Return-to-Home(RTH) 1.2 Aircraft battery charging 4.4 Search the Drone Apron 1.3 Aircraft battery installation 4.5 Intelligent Flight Mode 1.4 Propeller installation and... -
Page 7: Aircraft
1 A ircraf t 1.1 Aircraft Diagram 1. Propeller A 2. Propeller B 3. LED indicator 4. Motor 5. Body shell 6. 4K HD Camera 7. Micro-SD/TF Slot 8. Gimbal 9. Power 10. Gimbal Protection Guard 1.2 Aircraft battery charging Aircraft Lithium Battery Capacity: 5000mAh, 11.4V lithium battery equipped with a standard charger,charging time is about 3 hours.Charging opera-... -
Page 8: Aircraft Battery Installation
1.3 Aircraft battery installation Extend the front arms first then extend the rear arms to the maximum angle. Pinch the sides of the battery and push the battery in until you hear a click. Make sure the b a t t e r y i s l o c k e d i n . T o r e m o v e t h e b a t t e r y , h o l d t h e head of the aircraft and pinch the sides of the battery then pull the battery out. -
Page 9: Propeller Installation And
1.4 Propeller installation and disassembly Before installing the propeller, please carefully check the letters beside the aircraft motor and the letters on the propeller. The two letters must be the same when installing; When the blade is dam- aged or needs to be replaced, remove the screw counterclockwise to remove the propeller. -
Page 10: Remote Controller Features
2.2 Remote Controller Features S/N Key / Switch Function Push the stick forward or backward and the Throttle / Rudder quadcopter will ascend or descend (respectively). Stick Push the stick left or right and the quadcopter will fly left or right (respectively). Push the stick forward or backward and the quadcopter will fly forwards or backwards (respec- Elevator / Aileron... -
Page 11: Connecting Your Mobile Device
Key / Switch Function Low battery warning for the aircraft or remote Low Battery control: Remote control "Beep...Beep..." prompt (one time Warning per second) The remote control has no operation for 10 m i n u t e s a f t e r s t a n d b y , t h e r e m o t e c o n t r o l "Beep...Beep..."... -
Page 12: Remote Controller Antenna Angle
2.5 Remote Control Antenna Angle (1) Adjust the angle of the remote control antenna and try to face the flight direction of the aircraft as much asap; (2) Long-distance state, the distance between the two antennas is prop- e r l y t i g h t e n e d t o m a i n t a i n t h e antenna directivity;... -
Page 13: Main Interface Guide
3.2 Main Interface Guide Flight Status Sport Mode Remote Aircraft Aircraft Motor Home Page Setting Status (Video) Control Battery Switch Signal Signal Signal Level Not Connected N 1 0 0 % 1 1 V Camera Flight Mode Headless On / Off Setting Photo / Video Switch... - Page 14 4. Start binding (This step is only required when first binding or replace the transmitter, do it manually.) (1) Go to APP - Setting - Controller, transmitter connection method: Synchleas Synchleas Tr a n s m i t t e r m o d e l C o n t ro l l e r S e t t r a n s m i t t e r a n d a i rc r a f t c o n n e c t i o n J o y s t i c k s e t t i n g...
-
Page 15: Calibration
3.4 Calibration 3.4.1 Horizontal Calibration During the flight, when the horizontal deviation of the aircraft is found to be large, please land the aircraft and lock the motor, and place it on a level ground. After entering the APP setting interface, click "aircraft", select horizontal calibration, the aircraft will automatically calibrate, the four heading lights will flash, and after the calibration is completed, it will become steady light. -
Page 16: Gps Accuracy Test
3.4.3 GPS Accuracy Test After entering the APP interface, tap on "Aircraft", select "GPS Accuracy Test" then tap on "Enable / Restart GPS Accuracy Test". The aircraft will automatically proceed to test. If the GPS signal of the mobile phone or the aircraft is poor that may cause the GPS accuracy test to fail. -
Page 17: Staring/Stopping The Motors
3.5 Staring/Stopping the Motors Motor starting condition 1. The aircraft, remote control and mobile phone have been connected; 2. The aircraft has been calibrated by the compass (four Orienta- tion LEDs are always on); 3. The aircraft must be placed horizontally. 4. -
Page 18: Flight Controller
4 F li ght Con troll e r 4.1 Flight Control Mode Hover mode works best when the GPS signal Hover mode is strong. When the GPS signal is week or the compass is Attitude disturbed, the aircraft will enter the attitude m o d e . -
Page 19: Return-To-Home(Rth)
The front Orientation light flashes slowly in blue, and the rear Orientation light is steady Loss Of Flight red. Control Indicator (When there is a conflict with low battery, priority is displayed.) Headless Fore/front blue LEDS flash in vertical pairs Mode alternately and rear red LEDs stay solidly Rear red LEDs flash once... - Page 20 RTH-Process 1. Record "Home Point" 2. Trigger return conditions 3. Adjust the direction of the head 4. Return to the return altitude set by APP (1) Regardless of the current height of the aircraft, if the aircraft is within 5 meters of the horizontal distance, land directly; (2) If the horizontal distance is 5 meters away and within 20 meters, return at the current altitude;...
-
Page 21: Search The Drone Apron
4.4 Search the Drone Apron When the aircraft landed or returned to a height of about 10 meters from the ground, it will automatically enter the search for the drone apron function. Connected 1 0 0 % 4 5 . 8 7 7 5 0 3 , - 1 0 6 . 1 2 3 9 8 4 S P E E D 0 . -
Page 22: Intelligent Flight Mode
4.5 Intelligent Flight Mode 4.5.1 Headless Mode Record a flight path，the direction of the nose is the direction of advance，the heading and forward direction of the aircraft are inde- pendent of the direction of the nose during flight. Connected 1 0 0 % S P E E D 0 . -
Page 23: Image Tracking
4.5.3 Image Tracking Select the target on the APP. After the selecting successfully, tap on "Go" and the aircraft will follow the movements of the target. The range of tracking altitude and distance is 5-15 meters. Connected N 1 0 0 % N o r m a l M o d e Waypoint... -
Page 24: Line Fly Mode
Waypoint Planning: You can preset the waypoint parameters such as the number of waypoints, the altitude of each waypoints and other parameters. The aircraft will follow the preset parameters after you activate waypoint mode. You can control the flying speed during flight or you can pause or resume the Waypoint mode. -
Page 25: Time-Lapse Photography
3. You can pause/resume/stop the flight at any time. 4. When the aircraft is low on battery or lost connection,the aircraft will always set Return to Home as the priority mission. Line Fly Mode Devices ConnecLineted 1 0 0 % A n g l e ：... -
Page 26: Panorama Mode
Hover mode 1 0 0 % T h e S h u t t e r I n t e r v a l 1 5 s The Maximum Flight Speed 0.5m/s 3.0m/s Cricle Time-lapse The aircraft will take a certain number of photos and compose time-lapse video automatically according to the circle point of interest and the parameters which you set. -
Page 27: Camera And Gimbal
In this mode, the aircraft will perform the shooting task automatically. After the shooting done, you can view photos and videos from the TF card, also export photos and videos and composite it. During shooting, the user will quit the task automatically. Hover mode 1 0 0 % Wide Angle... -
Page 28: Gimbal Pitching Axis
4.6.3 Gimbal Pitching Axis Adjustment APP Adjustment Method 1: Long press the blank space in the video preview inter- face, the mobile device should vibrate once and the icon (1) should appear by your finger then you can move your finger up and down on the screen to adjust the pitching axis. -
Page 29: Loss Of Flight Control Failsafe
4.7.2 Loss of Flight Control Failsafe When the flight control connection between the aircraft and transmitter is lost, the aircraft will automatically land or return to where the remote control / transmitter was last located and land there. This can drastically reduce the possibility of the aircraft crashing or being lost. - Page 30 4. The aircraft is hovering unsteadily Change the flight site, please do not fly near tall buildings and signal towers. (2) The aircraft compass calibration and Horizontal calibration. (3)Whether the wind is too strong to affect the flight. 5. Aircraft GPS accuracy is not accurate or cannot pass GPS accuracy test.The GPS accuracy of the aircraft is inaccurate or cannot pass the GPS accuracy test (1) Search for GPS 6 or more in outdoor open spaces...
- Page 31 L i m i t a t i o n o f L i a b i l i t y Hubsan accepts no liability for damages, injuries or any legal responsibili-ties incurred directly or indirectly from the use of Hubsan products under the following conditions: 1.Damages, injuries or any legal responsibilities incurred when users are drunk, under the influence of drugs or anesthesia, dizzy,...
- Page 32 Hubsan website announcements, product quick start guides, user manuals, etc. 17. Other losses, damages, or injuries t hat are not within the boundaries of H ubsan responsibility. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE LOCAL REGU- LATIONS.
- Page 33 F C C I N F O R M A T I O N This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 36 Please read the operating instructions carefully before use! ●Never leave units unattended when charging Flight Academy ●Unplug the charging cable immediately after charging ●Propellers may cause injury ●This product is not a toy ●Not suitable for children under 14 years of age Product name: ZINO PRO+ Product Standard Number:Q / HBS 001-2017 Vendor: Shenzhen Hubsan Technology Co., Ltd...
