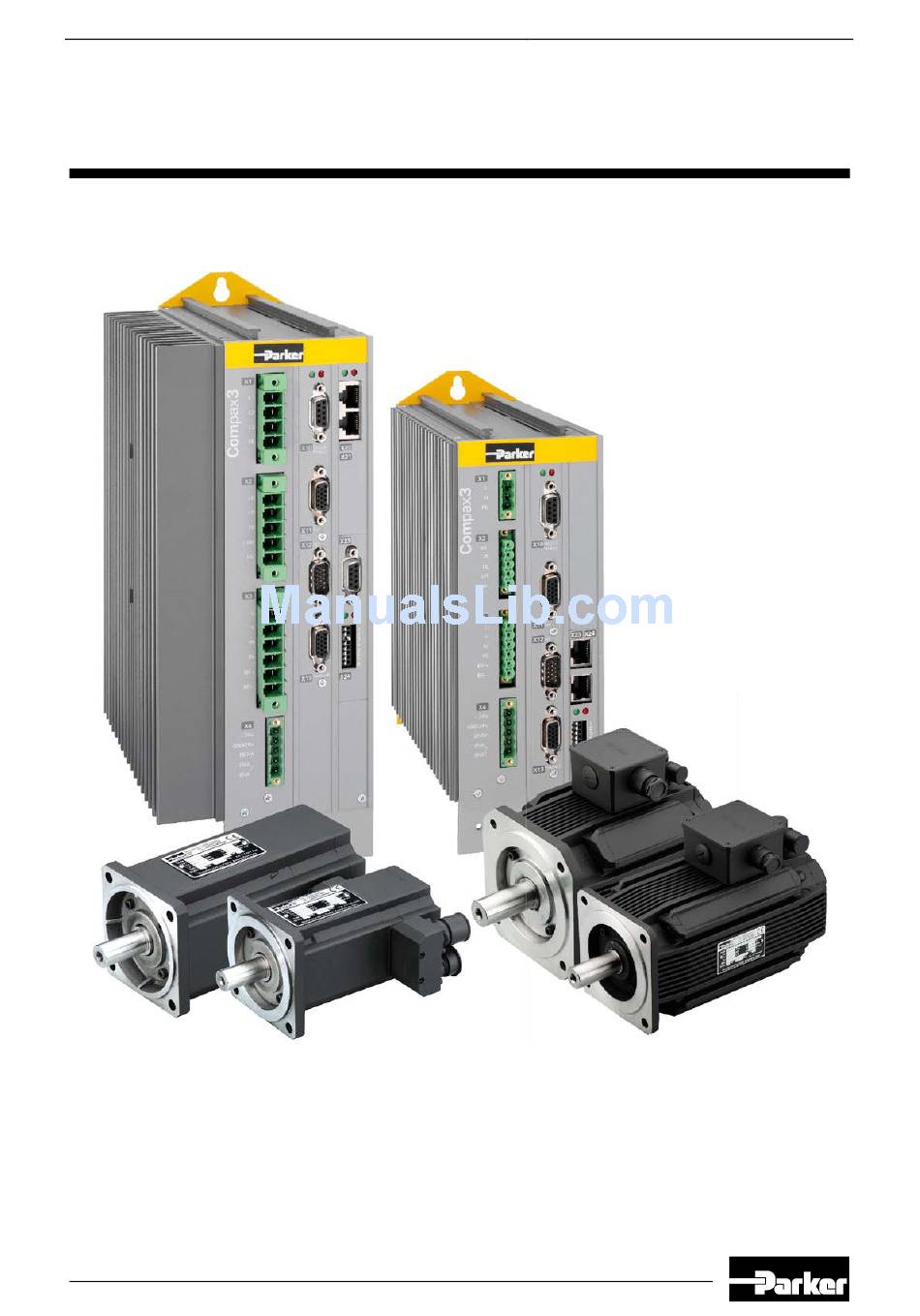

  • Page 1 Single axis devices Electromechanical Automation Compax3S quick reference guide Single axis devices C3Manager-Compax3S 192-121102 N23 2016-04 Release as from R09-63 20.04.16 14:42 192-120102N23 2016-04 We reserve the right to make technical changes. The data correspond to the current status at the time of printing.
  • Page 2 Tel.: + 49 (0781) 509-0 Fax: + 49 (0781) 509-98176 Internet: http://www.parker.com/eme E-mail: mailto:EM-Motion@parker.com Parker Hannifin GmbH - registered office: Bielefeld HRB 35489 Management Board: Ellen Raahede Secher, Dr.-Ing. Hans-Jürgen Haas, Günter Schrank, Kees Veraart - Chairman of the board: Hansgeorg Greuner Italy: Parker Hannifin Manufacturing Srl Electromechanical &...

  • Page 3: Notes On The Documents Supplied

    C3 ServoManager Parker EME 1. Notes on the Documents Supplied Compax 3 - short This short reference guide does contain only the basic information; for more reference guide detailed information please refer to the Help-files of the individual Compax3 device types.

  • Page 4: Table Of Contents

    Warranty conditions ................9 Conditions of utilization ................9 2.7.1. Conditions of utilization for CE-conform operation ........9 2.7.2. Conditions of utilization for UL certification Compax3S ......11 2.7.3. Current on the mains PE (leakage current) ........... 12 2.7.4. Supply networks ....................12 EC declaration of conformity ..............

  • Page 5: Introduction

    Cable clamps in different sizes for large area shielding of the motor cable, the  screw for the cable clamp as well as the mating plug connectors for the Compax3S plug connectors X1, X2, X3, and  a toroidal core ferrite for one cable of the motor holding brake ...

  • Page 6: Type Specification Plate

    Introduction Single axis devices Type specification plate The present device type is defined by the type specification plate (on the housing): Compax3 - Type specification plate (example): Explanation: Type designation: The complete order designation of the device (2, 5, 6, 9, 8). C3: Abbreviation for Compax3 S025: Single axis device, nominal device current in 100mA (025=2.5A) M050: Multi-axis device, nominal device current in 100mA (050=5A)

  • Page 7: Packaging, Transport, Storage

    Packaging, transport, storage Parker EME Packaging, transport, storage Packaging material and transport Caution! The packaging material is inflammable, if it is disposed of improperly by burning, lethal fumes may develop. The packaging material must be kept and reused in the case of a return shipment.

  • Page 8: Safety Instructions

    Introduction Single axis devices Safety instructions 2.5.1. General hazards General Hazards on Non-Compliance with the Safety Instructions The device described in this manual is designed in accordance with the latest technology and is safe in operation. Nevertheless, the device can entail certain hazards if used improperly or for purposes other than those explicitly intended.

  • Page 9: Warranty Conditions

    Warranty conditions Parker EME Before you can work on the device, the supply voltage must be switched off at the  L1, L2 and L3 clamps. Wait at least 15 minutes so that the power direct current may sink to a secure value (<50V). Check with the aid of a voltmeter, if the voltage at the DC+ and DC- clamps has fallen to a value below 50V.
  • Page 10 We offer the mains filter as an accessory: LIR01/01  Accessories: Make sure to use only the accessories recommended by Parker. Connect all cable shields at both ends, ensuring large contact areas! This is restricted operation category product according to EN 61800-3. This product can cause high-frequency disturbance in domestic areas.

  • Page 11: Conditions Of Utilization For Ul Certification Compax3S

    Conditions of utilization Parker EME 2.7.2. Conditions of utilization for UL certification Compax3S UL certification for Compax3S conform to UL: according to UL508C  Certified E-File_No.: E235342  The UL certification is documented by a "UL" logo on the device (type specification plate).

  • Page 12: Current On The Mains Pe (Leakage Current)

    Introduction Single axis devices 2.7.3. Current on the mains PE (leakage current) This product can cause a direct current in the protective lead. If a residual current device (RCD) is used for protection in the event of direct or indirect contact, only a type B (all current sensitive) RCD is permitted on the current supply side of this product .

  • Page 13: Ec Declaration Of Conformity

    EC declaration of conformity Parker EME EC declaration of conformity 192-120102N23 2016-04...

  • Page 14: Compax3 Device Description

    Compax3 device description Single axis devices 3. Compax3 device description In this chapter you can read about: State of delivery ....................... 14 Meaning of the status LEDs - Compax3 axis controller ............ 14 Mounting and dimensions ....................15 State of delivery Compax3 is delivered without configuration! After switching on the 24VDC supply, the red LED is flashing while the green LED is dark.

  • Page 15: Mounting And Dimensions

    Mounting and dimensions Parker EME Mounting and dimensions In this chapter you can read about: Mounting and dimensions Compax3S0xxV2 ..............15 Mounting and dimensions Compax3S100V2 and S0xxV4..........16 Mounting and dimensions Compax3S150V2 and S150V4 ..........17 Mounting and dimensions Compax3S300V4 ..............18 3.3.1.

  • Page 16: Mounting And Dimensions Compax3S100V2 And S0Xxv4

    Compax3 device description Single axis devices 3.3.2. Mounting and dimensions Compax3S100V2 and S0xxV4 Mounting: 3 socket head screws M5 Stated in mm Please respect an appropriate mounting gap in order to ensure sufficient convection: At the side: 15mm  At the top and below: at least 100mm ...

  • Page 17: Mounting And Dimensions Compax3S150V2 And S150V4

    Mounting and dimensions Parker EME 3.3.3. Mounting and dimensions Compax3S150V2 and S150V4 Mounting: 4 socket head screws M5 Stated in mm Please respect an appropriate mounting gap in order to ensure sufficient convection: At the side: 15mm  At the top and below: at least 100mm ...

  • Page 18: Mounting And Dimensions Compax3S300V4

    Compax3 device description Single axis devices 3.3.4. Mounting and dimensions Compax3S300V4 Mounting: 4 socket head screws M5 Stated in mm Please respect an appropriate mounting gap in order to ensure sufficient convection: At the side: 15mm  At the top and below: at least 100mm ...

  • Page 19: Technical Data

    6Arms 10Arms 16Arms 22Arms consumption Maximum fuse rating per device MCB miniature circuit breaker, K characteristic Control voltage 24VDC Compax3S and Compax3H Controller type Compax3 Voltage range 21 - 27VDC Current drain of the device 0.8 A Total current drain 0.8 A + Total load of the digital outputs + current...
  • Page 20 Technical Data Single axis devices 192-120102N23 2016-04...
