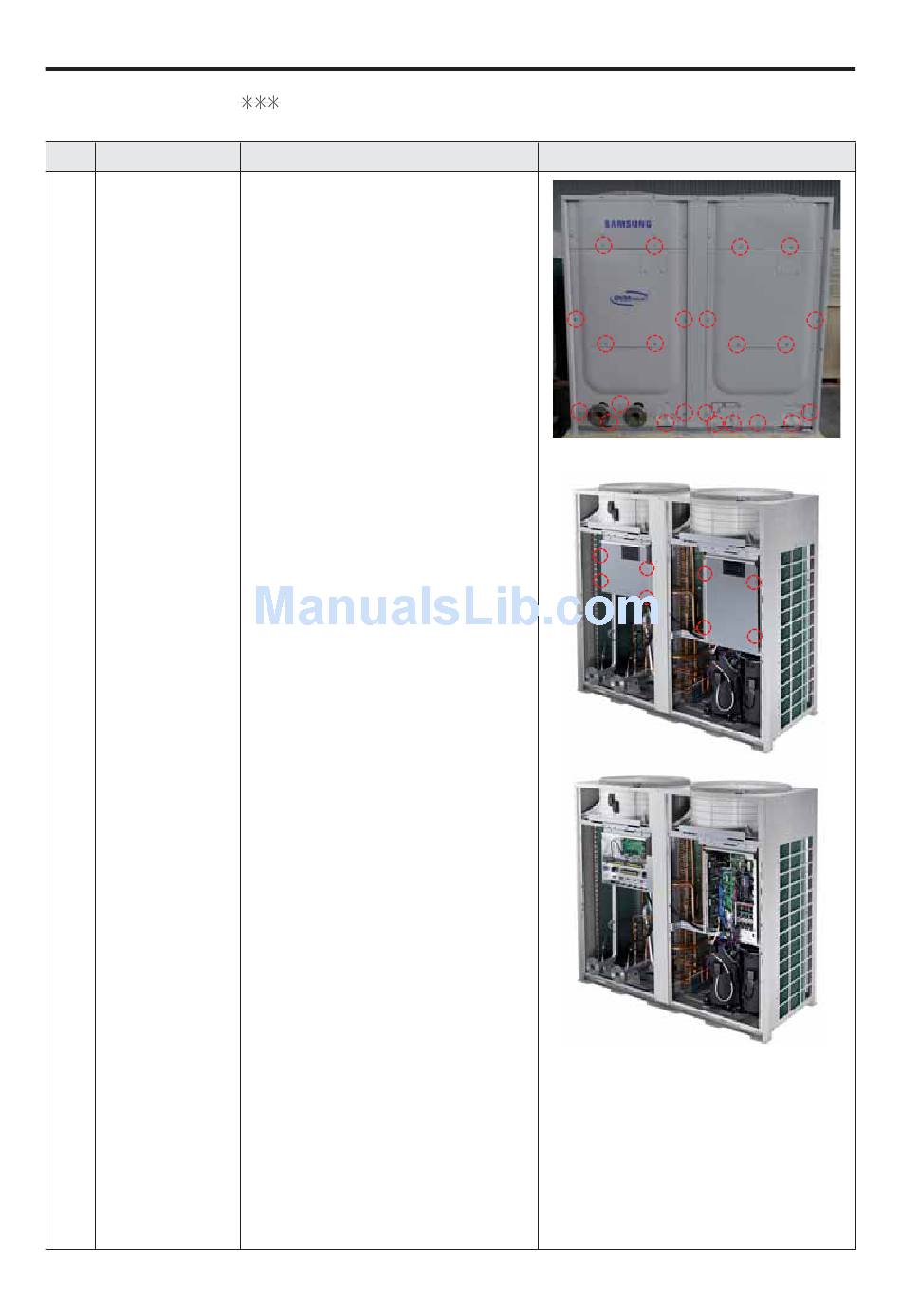

3-2 Disassembly and Reassembly
3-2-1. AG042/056/070KSV
No.
Parts
1
Electrical
equipment parts
Procedure
1)
Remove 24 screws from the Cabinet.
(Use + Screw Driver)
2)
Remove the 8 screws and then separate the left
side Cover Control Box of Hydro part and right
side Cover Control Box of Inverter part. (Use +
Screw Driver)
3)
Remove the Power, Compressor, Valve, Motor,
Sensor connector of Assy PCB.
12
Remark
