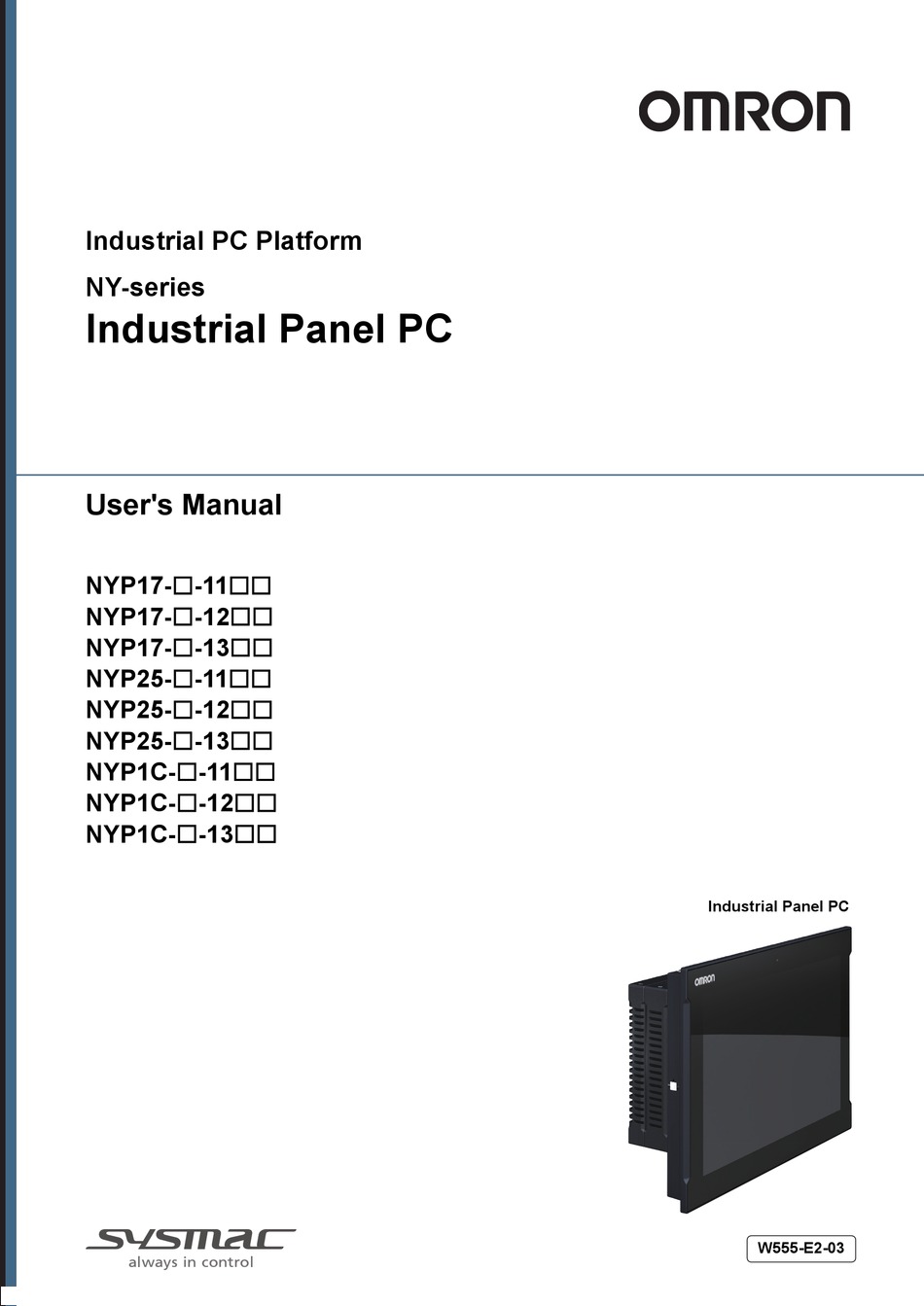

Page 1 Industrial PC Platform NY-series Industrial Panel PC User's Manual NYP17-£-11££ NYP17-£-12££ NYP17-£-13££ NYP25-£-11££ NYP25-£-12££ NYP25-£-13££ NYP1C-£-11££ NYP1C-£-12££ NYP1C-£-13££ Industrial Panel PC W555-E2-03...
Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, OMRON assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publica- tion.
Page 3: Intended Audience
Introduction Introduction Thank you for purchasing the Industrial Panel PC. This manual contains information that is necessary to use the Industrial Panel PC (hereafter also named as Panel PC). Please read this manual and make sure you understand the functionality and performance of the Panel PC before attempting to use it.
Page 4: Table Of Contents
CONTENTS CONTENTS Introduction ......................1 Intended Audience............................1 Applicable Products ............................1 Manual Information....................7 Page Structure..............................7 Special Information ............................8 Terms and Conditions Agreement................9 Warranty and Limitations of Liability ........................9 Application Considerations ..........................10 Disclaimers ..............................10 Safety Precautions....................12 Definition of Precautionary Information......................12 Symbols .................................12 Warnings................................13 Cautions.................................15...
Page 5 CONTENTS Section 1 Overview Intended Use ........................1 - 2 Hardware Features.......................1 - 3 ID Information Label ......................1 - 4 Product Configuration......................1 - 5 Industrial PC Platform Overview ..................1 - 6 1-5-1 Industrial Monitor ........................1 - 6 1-5-2 Industrial Box PC ........................1 - 7 1-5-3 Industrial Panel PC ........................1 - 7 Section 2...
Page 6 CONTENTS 3-2-2 Installed IPC Support Software ....................3 - 4 3-2-3 Industrial PC Support Utility .....................3 - 5 3-2-4 Industrial Monitor Utility ......................3 - 9 3-2-5 Industrial Monitor Brightness Utility ..................3 - 12 3-2-6 Rescue Disk Creator .......................3 - 14 3-2-7 Industrial PC Tray Utility ......................3 - 18 3-2-8 Power Attendant Lite Utility .....................3 - 21...
Page 7 CONTENTS Wire .............................5 - 27 5-4-1 Wiring Warnings and Cautions....................5 - 27 5-4-2 Ground ............................5 - 28 5-4-3 Wire the Power Connector ......................5 - 34 5-4-4 Wire the I/O Connector ......................5 - 37 Connect..........................5 - 40 5-5-1 Connector Identification ......................5 - 41 5-5-2 Connection Procedure ......................5 - 42 Initial Power ON .........................5 - 44...
Page 8 CONTENTS 7-2-6 Replace the PCIe Card ......................7 - 25 7-2-7 Restore and Repair Data ......................7 - 30 7-2-8 Allocate a Drive in Windows....................7 - 37 7-2-9 Windows Event Viewer......................7 - 38 7-2-10 Windows Low on Memory .......................7 - 40 7-2-11 Windows Blue Screens ......................7 - 41 7-2-12 Correct Display Functionality when Nothing is Displayed ............7 - 41...
Page 9: Manual Information
Manual Information Manual Information This section provides information about this manual. Page Structure The following page structure is used in this manual. 5 Installation Unpack This section provides details on how to unpack the Industrial Panel PC. 5-1-1 Unpack Procedure Check the package for damage.
Page 10: Special Information
Manual Information Special Information Special information in this manual is classified as follows: Precautions for Safe Use Precautions on what to do and what not to do to ensure safe usage of the product. Precautions for Correct Use Precautions on what to do and what not to do to ensure proper operation and performance. Additional Information Additional information to read as required.
Page 11: Terms And Conditions Agreement
Omron’s exclusive warranty is that the Products will be free from defects in materials and workman- ship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, expressed or implied.
Page 12: Application Considerations
• Omron Companies shall not be responsible for the user’s programming of a programmable Product, or any consequence thereof. • Omron Companies shall not be responsible for the operation of the user accessible operating sys- tem (e.g. Windows, Linux), or any consequence thereof.
Page 13: Nyp25
Terms and Conditions Agreement Errors and Omissions Information presented by Omron Companies has been checked and is believed to be accurate; how- ever, no responsibility is assumed for clerical, typographical or proofreading errors or omissions. NY-series Industrial Panel PC User's Manual (W555)
Page 14: Safety Precautions
Safety Precautions Safety Precautions Definition of Precautionary Information The following notation is used in this manual to provide precautions required to ensure safe usage of the Industrial Panel PC. The safety precautions that are provided are extremely important to safety. Always read and heed the information provided in all safety precautions.
Page 15: Warnings
Safety Precautions Warnings WARNING Disassembly and Dropping Do not attempt to disassemble, repair, or modify the product in any way. Do- ing so may result in malfunction or fire. Installation Always connect to a ground of 100 Ω or less when installing the product. Ensure that installation and post-installation checks of the product are per- formed by personnel in charge who possess a thorough understanding of the machinery to be installed.
Page 16 Safety Precautions Actual Operation Security setting adjustments should only be performed by the engineer in charge that possesses a thorough understanding of the security settings. Selecting non-recommended security settings can put your system at risk. Changing BIOS information is only allowed for the engineer in charge that possesses a thorough understanding of the BIOS settings because it can change the behavior of the product.
Page 17: Cautions
Safety Precautions Cautions Caution Wiring The product has an internal non-isolated DC power supply. Circuit ground (0 VDC) and frame ground are connected together. When connecting a non- isolated device or a non-isolated interface to the product, take appropriate actions to avoid communication failures or damage to the mentioned ports. Non-isolated Industrial PC Platform Product Device...
Page 18: Precautions For Safe Use
Precautions for Safe Use Precautions for Safe Use Disassembly, Dropping, Mounting, Installation and Storage • Do not drop the product or subject it to abnormal vibration or shock. Doing so may result in product malfunction or burning. • When unpacking, check carefully for any external scratches or other damages. Also, shake the product gently and check for any abnormal sound.
Page 19: Power Supply Design And Turning On/Off The Power Supply
• Correctly perform wiring and setting, and ensure that the shutdown by the UPS can be executed. • Always use the SMART monitoring feature for storage devices that do not comply to the Omron Storage Device Specifications. Monitor the operating temperature and vibrations to ensure they stay within the environmental specifications of the storage device.
Page 20: Operation
Precautions for Safe Use Operation • Do not carry out the following operations when accessing a USB device or an SD Memory Card. • Turn OFF the power supply of the product. • Press the Power Button of the product. •...
Page 21 Precautions for Safe Use • The following information must be displayed for all products that contain primary lithium batteries with a perchlorate content of 6 ppb or higher when shipped to or transported through the State of California, USA. Perchlorate Material - special handling may apply. See http://www.dtsc.ca.gov/hazardouswaste/perchlorate.
Page 22: Precautions For Correct Use
• Ensure the selected operating system supports ACPI to enable operating system shutdown using the power button. • Download the enhanced Video Driver from the OMRON Download Center and install it on the Indus- trial PC. Wiring •...
Page 23: Actual Operation And Operation
Precautions for Correct Use Actual Operation and Operation • After an OS update or a peripheral device driver update for the product is executed, the product be- havior might be different. Confirm that operation is correct before you start actual operation. •...
Page 24: Regulations And Standards
EMC Directive EMC Directive OMRON devices that comply with EU Directives also conform to the related EMC standards so that they can be more easily built into other devices or the overall machine. The actual products have been checked for conformity to EMC standards.
Page 25: Conformance To Kc Standards
Software Licenses and Copyrights This product incorporates certain third party software. The license and copyright information associat- ed with this software is available at http://www.fa.omron.co.jp/nj_info_e/. NY-series Industrial Panel PC User's Manual (W555)
Page 26: Related Manuals
Related Manuals Related Manuals The following manuals are related. Use these manuals for reference. Related Products Manuals Manual Cat. Model num- Application Description name bers U702 S8BA Learning the information An introduction to the UPS is provided S8BA User's that is necessary to use along with the following information: •...
Page 27: Industrial Monitor Manual
Related Manuals Industrial Monitor Manual This table contains the related manual of the Industrial Monitor. Manual Cat. Model num- Application Description name bers • Industrial W554 Learning all basic information An introduction to the Industrial NYM15W- Monitor C100£ about the Industrial Monitor. This Monitor is provided along with User’s •...
Page 28: Terminology And Abbreviations
Term / Abbreviation Description Industrial PC Platform An integrated range of OMRON products designed for use in any industrial applica- tion that will benefit from advanced PC technology Industrial Monitor An industrial monitor with a touchscreen as the user interface designed to work in...
Page 29: Software
Terminology and Abbreviations Software Term / Abbreviation Description ACPI Advanced Configuration and Power Interface protocol for operating systems Application Programming Interface BIOS Basic Input Output System. The first software run by a PC when powered on. Developer Any person involved with the development of software Daylight Saving Time Enhanced Write Filter FBWF...
Page 30: Revision History
Revision History Revision History A manual revision code appears as a suffix to the catalog number on the front and back covers of the manual. W555-E2-03 Cat. No. Revision code Revision code Date Revised content • May 2017 Added operating system Windows 10 IoT Enterprise LTSB •...
Page 31: Sections In This Manual
Sections in this Manual Sections in this Manual Overview Hardware Software Specifications Installation Operating Procedures Maintenance Appendices NY-series Industrial Panel PC User's Manual (W555)
Page 32 Sections in this Manual NY-series Industrial Panel PC User's Manual (W555)
Page 33 Overview This section provides general information about the Industrial Panel PC. Intended Use ....................1 - 2 Hardware Features ..................1 - 3 ID Information Label..................1 - 4 Product Configuration ................. 1 - 5 Industrial PC Platform Overview ..............1 - 6 1-5-1 Industrial Monitor ..................
Page 34: Overview
1 Overview Intended Use The Industrial Panel PC is intended to be used as a panel mounted industrial PC in factory automation environments. This Panel PC can be configured with Windows, Linux or a realtime operating system (RTOS). It can be used with third party software to serve as a powerful PC platform. A user can access the Panel PC for control, configuration and supervisory operations using the inte- grated touchscreen display.
Page 35: Hardware Features
Up to 5 simultaneous touches are supported for complex functions. • Backlit Logo The standard product logo is OMRON. Check your sales representative for the possibilities to cus- tomize the product logo. The product logo is provided with a controllable backlight to increase visibil- ity.
Page 36: Id Information Label
A custom ID [NYC£££-££££££££] (Optional) Only for Industrial Monitors and Industrial Panel PCs with a custom logo Standards and QR The applicable standards and a QR code for OMRON internal use code LOT number and Production details, consisting of: •...
Page 37: Product Configuration
C: Projected Capacitive Touch type Frame type 1: Aluminum frame, black Design 0: Standard Built-in options 0: None Logo 0: OMRON 2: Customization Not available for Windows 10 IoT Enterprise LTSB. 1 - 5 NY-series Industrial Panel PC User's Manual (W555)
Page 38: Industrial Pc Platform Overview
In line with OMRON’s established quality standards, each element in the Industrial PC Platform, rang- ing from the standalone Industrial Box PC to the touchscreen Industrial Monitor, is engineered with long-life components and built to the most advanced design standards.
Page 39: Industrial Box Pc
1 Overview 1-5-2 Industrial Box PC The Industrial Box PC is designed to meet the specific needs of the industrial environment. Design simplification and future-proof architecture minimize the risk of failure. In addition, new PC features can be seamlessly incorporated, without the need for wholesale redesign. 1-5-3 Industrial Panel PC The Industrial Panel PC intelligently combines the functionality of the Industrial Box PC and Industrial...
Page 40 1 Overview 1 - 8 NY-series Industrial Panel PC User's Manual (W555)
Page 41 Hardware This section provides an overview of the hardware of the Industrial Panel PC. Component Names and Functions ............. 2 - 2 2-1-1 Front and Top of the Industrial Panel PC............2 - 2 2-1-2 Back and Bottom of the Industrial Panel PC..........2 - 3 LED Indicators ....................
Page 42: Component Names And Functions
2 Hardware Component Names and Functions This section shows views of the Industrial Panel PC with information about all items. 2-1-1 Front and Top of the Industrial Panel PC This section shows the component names and functions for the front and top of the Panel PC. Item Name Description...
Page 43: Back And Bottom Of The Industrial Panel Pc
2 Hardware 2-1-2 Back and Bottom of the Industrial Panel PC This section shows the component names and functions for the back and bottom of the Panel PC. Item Name Description Cover Provides access to: • The battery • The fans (only for Panel PCs that have active cooling) •...
Page 44 2 Hardware Item Name Description DVI connector Digital Visual Interface connector 10BASE-T / 100BASE-TX / 3 RJ45 Gb Ethernet interface connectors 1000BASE-T Ethernet con- nectors USB 2.0 connectors 2 USB 2.0 interface connectors USB 3.0 connectors 2 USB 3.0 interface connectors Two 2.5 inch drive bays for HDD/SSD storage devices: Drive bays •...
Page 45: Led Indicators
2 Hardware LED Indicators The Industrial Panel PC has two rows of four LED indicators on the bottom of the Panel PC and two LED indicators on the front of the Panel PC. These LED indicators provide the current operating status of the Industrial Panel PC.
Page 46 2 Hardware ERR LED Indicator The Error LED (ERR) indicates the presence and type of an error within the Industrial Panel PC. Color Status Meaning • Not lit The 24 VDC power is not supplied • No error is present •...
Page 47: Front Led And Led Indicator
2 Hardware 2-2-2 Front LED and LED Indicator The front of the Industrial Panel PC has a logo LED and a Status LED indicator. The Status LED indicator provides the same information as the Power and Error LEDs on the bottom of the Industrial Panel PC.
Page 48 2 Hardware Logo LED The Logo LED brightness can be changed with the Industrial Monitor Utility. Additional Information The Logo LED brightness is adjustable. Refer to Industrial Monitor Utility for brightness details. The Industrial Monitor Utility information is available: • For products NYM£ in the section Software in this manual. •...
Page 49: Power Button
2 Hardware Power Button The power button is used to manually switch the Panel PC ON and OFF. Additional Information • Refer to 6-2 Power ON on page 6 - 3 for ON details. • Refer to 6-3 Power OFF on page 6 - 5 for OFF details. 2 - 9 NY-series Industrial Panel PC User's Manual (W555)
Page 50: Drive Bays
2 Hardware Drive Bays The drive bays in the Industrial Panel PC accept 2.5 inch Hard Disk Drives (HDD) or Solid State Drives (SSD). Depending on the model one or two drives are supported. Additional Information • Refer to 4-1-4 CPU Specifications on page 4 - 6 for the number of supported drives. •...
Page 51: Sd Memory Card Slot
2 Hardware SD Memory Card Slot The SD Memory Card slot on the Industrial Panel PC accepts SD Memory Cards with the following specifications. • SDHC type (SD 2.0 specification) • Up to 32 GB capacity Additional Information Refer to 2-9-1 SD Memory Cards on page 2 - 19 for SD Memory Card details. 2 - 11 NY-series Industrial Panel PC User's Manual (W555)
Page 52: Pcie Card Slot
2 Hardware PCIe Card Slot The PCI Express (PCIe) Card slot of the Industrial Panel PC accepts various PCIe Cards for specific hardware needs. The PCIe Card connectors are available behind the cover and the PCIe Card is mounted in the PCIe drawer Additional Information •...
Page 53: Connectors
2 Hardware Connectors This section gives an overview of the available connectors for the Industrial Panel PC. 2-7-1 Power Connector The power connector on the Panel PC is used to supply 24 VDC power to the Panel PC. The power connector is supplied with the Panel PC. Additional Information •...
Page 54: Usb Connectors
2 Hardware Additional Information • Refer to 4-2-2 I/O Connector Specifications on page 4 - 13 for specifications. • Refer to 5-4-4 Wire the I/O Connector on page 5 - 37 for wiring details. • Refer to 5-5 Connect on page 5 - 40 for connection details. 2-7-3 USB Connectors The USB connectors support USB 2.0 and USB 3.0 specifications.
Page 55: Ethernet Connectors
2 Hardware 2-7-4 Ethernet Connectors The Ethernet connectors provide 3 individual Ethernet ports on the Industrial Panel PC. Each port offers 10BASE-T/100BASE-TX/1000BASE-T Ethernet speeds. Additional Information • Refer to 4-2-4 Ethernet Connector Specifications on page 4 - 18 for specifications. •...
Page 56: Rs-232C Connector (Optional)
2 Hardware 2-7-6 RS-232C Connector (Optional) Depending on the product configuration an optional RS-232C connector is available. Additional Information • Refer to 1-4 Product Configuration on page 1 - 5 for configuration details. • Refer to 4-2-7 RS-232C Connector Specifications on page 4 - 22 for specifications. •...
Page 57: Spare Parts
2 Hardware Spare Parts The following spare parts for the Industrial Panel PC are available. 2-8-1 Battery One battery is supplied with the Panel PC. The battery supplies power to the real-time clock. The battery is located inside the Panel PC. Model Appearance Specifications...
Page 58: Accessory Kit
2 Hardware 2-8-3 Accessory Kit The accessory kit for the Panel PC. Model Appearance Specifications NY000-AK00 Accessory Kit containing all acces- sories supplied with the Panel PC. • Power connector • I/O connector • Drive bracket for drive installation • 4 mounting screws for drive in- stallation •...
Page 59: Optional Hardware
The following optional hardware is available for the Industrial Panel PC. 2-9-1 SD Memory Cards SD Memory Card details are provided below. OMRON is not responsible for the operation, performance or write life of any other brand of SD Memo- ry Card. Model Appearance...
Page 60: Storage Devices
Storage Device Considerations For a storage device that is not an OMRON NY000-A£££ consider the following: • OMRON is not responsible for the operation, performance or write life of any storage device other than those supplied by OMRON. • Test and measure the environmental performance of the intended storage device before actual op- eration, using the SMART monitoring feature of the selected storage device.
Page 61: Dvi Cables
90 mm 2-9-5 USB Type-A to USB Type-B Cables USB Type-A to USB Type-B cable details are provided below. OMRON is not responsible for the operation or performance of any other brand of USB Type-A to USB Type-B cable. Model Appearance...
Page 62: Industrial Monitor
Additional Information Refer to the OMRON website for specifications and manuals. 2-9-7 Power Supply Details for the recommended power supply are provided below. OMRON is not responsible for the operation or performance of any other power supply. Model Appearance Specifications S8VK-G£££24...
Page 63: Ups
• Refer to 4-1-3 Power Consumption Specifications on page 4 - 3 for power consumption de- tails. • Refer to the OMRON website for S8BA specifications or to the UPS S8BA User's Manual (Cat. No. U702) for the UPS manual.
Page 64 2 Hardware 2 - 24 NY-series Industrial Panel PC User's Manual (W555)
Page 65: Software
Software This section provides software information for the Industrial Panel PC. Windows Operating System................ 3 - 2 3-1-1 Determine Your Version of the Windows Operating Systems....... 3 - 2 3-1-2 Determine Your Ethernet Ports ..............3 - 3 Support Software ..................3 - 4 3-2-1 Overview IPC Support Software for Windows ..........
Page 66: Windows Operating System
3 Software Windows Operating System This section provides an overview of Windows Operating System information. 3-1-1 Determine Your Version of the Windows Operating Systems This section provides methods to find version details of your Windows Operating System. Windows 7 To determine your version of the Windows Operating System: Select the Start Button.
Page 67: Determine Your Ethernet Ports
3 Software 3-1-2 Determine Your Ethernet Ports This section provides information to determine the relation between the physical Ethernet ports on your Industrial Panel PC and the ports in Windows. Available Ethernet Ports The Ethernet ports available are: ® • Port 1 - Local Area Connection - I218 (Intel Ethernet Connection I218-LM) ®...
Page 68: Support Software
Industrial Monitor Brightness Utility Industrial PC Support Utility Industrial PC Tray Utility Select and download the utilities required from the OMRON download website. Additional Information • An internet connection is required to install support software. • Refer to NY-series Industrial Panel PC User’s Manual (Cat. No. W555) for support software details.
Page 69: Industrial Pc Support Utility
3 Software 3-2-3 Industrial PC Support Utility This section provides an overview of the Industrial PC Support Utility. Industrial PC Support Utility Overview The Industrial PC Support Utility is a software utility to assist in diagnosing and resolving problems of the Industrial Panel PC.
Page 70 3 Software Production Data Tab The Production Data tab displays generic Industrial Panel PC information. These are e.g. Model name, Lot number, Serial number, Hardware version, BIOS version, BMC version, and software ver- sions (Industrial PC Support Utility and Industrial PC System API). •...
Page 71 3 Software System Status Tab The System Status tab displays actual states and diagnostic information like internal temperature, fan revolution, battery and power supply status. A status that requires attention is indicated with a red bar. Item Description The average CPU temperature. Internal Temperature The actual rotation speed for each fan in revolutions per minute (r/min).
Page 72 Values are not updated automatically. Select the Update Screen Button to display the latest values. Installation The Industrial PC Support Utility is pre-installed on the Industrial Box PC and Industrial Panel PC. Download the Industrial PC Support Utility from the OMRON download website if reinstallation is re- quired. Startup The Industrial PC Support Utility can be started from: •...
Page 73: Industrial Monitor Utility
3 Software 3-2-4 Industrial Monitor Utility This section provides an overview of the Industrial Monitor Utility. Industrial Monitor Utility Overview The Industrial Monitor Utility provides a user interface to control settings and display details of con- nected Industrial Monitors. Item Description Details Connected Monitors...
Page 74 Refer to 3-2-7 Industrial PC Tray Utility on page 3 - 18 for Industrial PC Tray Utility details. Compatibility This monitor utility can be used on any PC that is connected to an OMRON Industrial Monitor. This monitor utility can be used with: •...
Page 75 • Industrial Monitor Brightness Utility In the Windows Event Viewer filter for event source IndMonService. • Industrial PC Support Utility In the Windows Event Viewer filter for event source IPCServiceHost or OMRON Industrial PC Support Utility. Additional Information Refer to 7-2-9 Windows Event Viewer on page 7 - 38 for the logged messages.
Page 76: Industrial Monitor Brightness Utility
• Bring the Panel PC in a low ambient light environment • Lighten the display with a bright flashlight Compatibility This monitor utility can be used on any PC that is connected to an OMRON Industrial Monitor. This monitor utility can be used with: • Windows Embedded Standard 7 •...
Page 77 Installation of the Industrial Monitor Brightness Utility is part of the installation of the Industrial Monitor Utility. Download the Industrial Monitor Utility from the OMRON download website for re-installation or for in- stallation on another PC with Windows 7. The Industrial Monitor Brightness Utility is installed onto Windows, and can be accessed via the Win- dows start menu and the Industrial PC Tray Utility.
Page 78: Rescue Disk Creator
3 Software 3-2-6 Rescue Disk Creator This section provides an overview of the Rescue Disk Creator. Rescue Disk Creator Overview The Rescue Disk Creator creates a Rescue Disk. A Rescue Disk is a disk with the Rescue Disk Utility; this is the software that performs the system backup and system restore procedures.
Page 79 The installer window opens. Follow the installer steps to complete the Rescue Disk Creator installation. The Rescue Disk Creator is installed and available in the OMRON folder in the Windows Start Menu. Startup To manually start the Rescue Disk Utility: Locate the Rescue Disk Utility using the Windows Start menu or the Windows search box.
Page 80 3 Software Additional Information The procedure to use Run as administrator is: • For Windows 10 using the Start menu: Rightclick the Rescue Disk Utility, select More and then Run as administrator. • For Windows 10 using Search: Rightclick the Rescue Disk Utility in the search results and select Run as administrator. •...
Page 81 (8) Retry the operation with the same target disk. (9) Retry the operation with a different target disk. (10) Restart the IPC and then retry the operation. (11) If the issue persists, contact your OMRON representative. 3 - 17 NY-series Industrial Panel PC User's Manual (W555)
Page 82: Industrial Pc Tray Utility
The Industrial PC Tray Utility provides the following features: • Display the overall state of all installed OMRON utilities in the icon in the system tray area. • Display a menu that can start all installed utilities and show the state of each installed utility.
Page 83 • The Industrial Monitor Brightness Utility is available in the menu when installed. • The application area can be configured to show and launch both OMRON and third party utilities. • The About entry shows details of the Industrial PC Tray Utility.
Page 84 3 Software Installation The Industrial PC Tray Utility is pre-installed on an Industrial Box PC and an Industrial Panel PC. The Industrial PC Tray Utility is included in the installers of the Industrial PC Support Utility and Indus- trial Monitor Utility. Install the Industrial PC Support Utility or Industrial Monitor Utility to install the In- dustrial PC Tray Utility.
Page 85: Power Attendant Lite Utility
Installation The Power Attendant Lite Utility is not pre-installed on a Panel PC. The Power Attendant Lite Utility installer is included in the installers directory (D:/OMRON-NY/Instal- lers). Download the installer from the OMRON download website if required. To install the Power Attendant Lite Utility:...
Page 86 A UPS selection window will be displayed. Select the connected UPS. A Login window will be displayed. Login with ID Admin and password omron. The Top window with UPS status information will be displayed. Configure the parameters for your specific situation.
Page 87 3 Software Refer to UPS Power Attendant Lite for Windows User's Manual for details. Select Detailed Setting / Other Settings / Communication Setting / UPS Communication Port to display the parameter COM search to UPS detection. Set the parameter to Do not search for COM ports to prevent interference for the COM ports. Select Submit to save the setting.
Page 88: Software For Developers
Industrial PC System API Industrial Panel PC Industrial Monitor SDK Industrial Monitor API Industrial PC System SDK Industrial PC System API Select and download the software required from the OMRON download website. 3 - 24 NY-series Industrial Panel PC User's Manual (W555)
Page 89: Industrial Pc System Api
The Industrial PC System API allows programmers to create programs that can retrieve information or set an indicator status of the product. The API makes use of the included OMRON IPC System Service to manage the hardware. Features The Industrial PC System API can: •...
Page 90: Industrial Monitor Api
The main function of the Industrial Monitor API is to enable the brightness of the backlight and the LEDs of the monitor to be increased or decreased according to the working environment. The API makes use of the included OMRON Industrial Monitor Service to manage the hardware. Features For all connected Industrial Monitors, the Industrial Monitor API can: •...
Page 91: Specifications
Specifications This section provides specifications of the Industrial Panel PC. General Specifications ................4 - 2 4-1-1 Dimensions and Weight ................4 - 2 4-1-2 General Electrical Specifications ..............4 - 3 4-1-3 Power Consumption Specifications .............. 4 - 3 4-1-4 CPU Specifications ..................
Page 92: General Specifications
4 Specifications General Specifications This section provides general specifications of the Industrial Panel PC. 4-1-1 Dimensions and Weight The following table provides specification details on dimensions and weights. Model Specifications Item 12.1 Inch 15.4 Inch Dimensions Width X = 332 mm Width X = 401 mm Height Y = 234 mm Height Y = 277 mm...
Page 93: General Electrical Specifications
4 Specifications 4-1-2 General Electrical Specifications The following table provides the general electrical specifications. Item Specifications Rated power supply voltage 24 VDC Allowable power supply voltage range 20.4 to 28.8 VDC Power supply standard SELV Grounding method Ground to less than 100 Ω Inrush current At 24 VDC: 12 A / 6 ms max.
Page 94 4 Specifications The total power consumption is the sum of the power consumption of all items that are installed in your Industrial Panel PC. ® ™ The required supply specifications for a Panel PC with an Intel Core i7-4700EQ CPU. Item Minimum power requirements Power supply...
Page 95 4 Specifications Power consumption Item 12.1 Inch models 15.4 Inch models HDD 320 GB Drives SSD SLC 32 GB SSD SLC 64 GB SSD iMLC 128 GB 14 W max. ((2 x 500 mA at 5 VDC) + (2 x 900 mA at 5 Expansions VDC)) PCIe...
Page 96: Cpu Specifications
4 Specifications 4-1-4 CPU Specifications This section gives the specifications of the CPUs that are available for the Industrial Panel PC. Refer to 1-4 Product Configuration on page 1 - 5 for product configuration details. ® ™ Intel Core i7-4700EQ CPU Specifications ®...
Page 97: Memory Specifications
4 Specifications ® ® Intel Celeron 2980U CPU Specifications ® ® CPU specifications for Industrial Panel PCs with an Intel Celeron 2980U CPU. Item Specifications Cores / Threads 2 / 2 CPU base frequency 1.6 GHz Maximum turbo frequency Cache 2 MB Cooling details Passive cooling (fanless)
Page 98: Storage Device Specifications
4 Specifications 4-1-6 Storage Device Specifications This section provides the specifications of the storage devices. Hard Disk Drive Specifications Specifications for the Hard Disk Drive (HDD) are provided in the table below. Model Specifications Item 320 GB Model NY000-AH00 S.M.A.R.T. support Rotation speed 5,400 r/min Interface...
Page 99 4 Specifications Model Specifications Item 32 GB 64 GB 128 GB Life 1500 TB/11 years at a 3000 TB/23 years at a 114 TB/3 years at a daily daily workload of 350 GB daily workload of 350 GB workload of 100 GB Refer to 1-4 Product Configuration on page 1 - 5 for product configuration details.
Page 100: Pcie Card Specifications
4 Specifications 4-1-7 PCIe Card Specifications The PCI Express (PCIe) Card slot of the Industrial Panel PC accepts various cards for specific hard- ware needs. Ensure that, according to the PCIe hardware specifications, the indent is present in the PCIe Card. The following tables provide PCIe Card details per CPU type.
Page 101 4 Specifications ® ® PCIe Card Slot Specifications with an Intel Celeron 2980U CPU ® ® The table below provides PCIe Card slot details for Industrial Panel PCs with an Intel Celeron 2980U CPU. Item Specifications Configuration X1 (1 lane) up to Gen 2 Card height Standard height cards, 4.20 inches (106.7 mm) Card length...
Page 102: Connector Specifications
4 Specifications Connector Specifications This section provides the Connector Specifications of the Industrial Panel PC. 4-2-1 Power Connector Specifications The power supply connector can be locked to prevent unintentional disconnection. The connector can only be inserted the correct way. The connector is a Phoenix Contact type SPC5/2-STCL-7.62 BK (1711708). The Panel PC provides protection against reverse polarity.
Page 103: I/O Connector Specifications
4 Specifications Locking and Removing the Power Connector The power connector automatically locks into place when the black part of the connector is held and pushed in. Pushing both orange sliders towards the end of the connector will release the lock when remov- ing the connector.
Page 104 4 Specifications I/O Connector Pin Details The pin details of the I/O connector. The pin layout represents the I/O connector on the Panel PC. The I/O signals connected must be powered from a power supply which conforms to the SELV stand- ards.
Page 105 4 Specifications I/O Connector Power Status Output Details This section provides details of the Power Status Output relay. The Power Status Output is a relay between pin 1 and 2 of the I/O Connector.  Power ON Power Status Output Operation This section provides power ON details of the Power Status Output operation.
Page 106 4 Specifications Product ON Shutdown Shutdown Product OFF start finished Closed (ON) Relay Open (OFF) Power supply removed Closed (ON) Relay Open (OFF) Additional Information Refer to 5-4-4 Wire the I/O Connector on page 5 - 37 for I/O connector wiring details. Lock and Remove the I/O Connector The I/O connector locks into place when the black part of the connector is held and pushed in.
Page 107: Usb Connector Specifications
4 Specifications 4-2-3 USB Connector Specifications The Industrial Panel PC includes four USB connectors. Two connectors provide version 2.0 perform- ance and two connectors provide version 3.0 performance. Details of the USB interface connectors are provided below. The connector layout represents the USB connectors on the Panel PC. Interface Connector Details •...
Page 108 4 Specifications 4-2-4 Ethernet Connector Specifications Details of the RJ45 Ethernet connectors are provided below. The Ethernet connector locks automatically to prevent unintentional disconnection. The view represents the Ethernet connector on the Industrial Panel PC. Ethernet Connector LED Indicators Each connector has LED indicators for speed, link and activity. Item Indicator Color...
Page 109: Ethernet Connector Specifications
4 Specifications Item Indicator Color Status Description Speed Not lit Not lit 10 Mbps or no link Green 100 Mbps link Orange 1 Gbps link Ethernet Connector Specifications Item Specifications Number of available ports Physical layer 10BASE-T, 100BASE-TX or 1000BASE-T Frame length 1,514 bytes max.
Page 110 4 Specifications ® ™ DVI-I Connector Specifications with an Intel Core i7-4700EQ ® ™ DVI-I connector specifications for Industrial Panel PCs with an Intel Core i7-4700EQ CPU. Item Specifications Video interface Digital or Analog Resolution Up to 1920 x 1200 pixels at 60 Hz Type Dual link Maximum DVI cable length...
Page 111: Dvi-D Connector Specifications
4 Specifications 4-2-6 DVI-D Connector Specifications The optional video interface on the Panel PC uses a DVI dual link connector. Item Specification Video interface Digital only Resolution Up to 1920 x 1200 pixels at 60 Hz Type Dual link Maximum DVI cable length Dependent upon connected monitor type and resolution Additional Information •...
Page 112: Rs-232C Connector Specifications
4 Specifications 4-2-7 RS-232C Connector Specifications The optional RS-232C interface on the Panel PC uses a standard SUBD9 connector. The RS-232C interface is not isolated from the internal Panel PC's components. Additional Information • Refer to 5-4-2 Ground on page 5 - 28 for grounding details. •...
Page 113: Software Specifications
4 Specifications Software Specifications This section provides the Software Specifications of the Industrial Panel PC. 4-3-1 Available Windows Operating Systems The available Windows Operating Systems are: • Windows Embedded Standard 7 SP1 - 32 bit An Internet Browser, Firewall and Anti-virus software are not pre-installed. •...
Page 114: Display Specifications
4 Specifications Display Specifications This section provides the display specifications of the Industrial Panel PC. WARNING Do not use the input functions of the touchscreen in applications that in- volve human life, in applications that may result in serious injury, or for emergency stop switches.
Page 115: Environmental Specifications
4 Specifications Environmental Specifications This section provides environmental specifications of the Industrial Panel PC. 4-5-1 Operation Environment Specifications The following table provides general environmental specifications for the Industrial Panel PC. Item Specifications Ambient operating temperature 0 to 55°C Ambient storage temperature -20 to 70°C Ambient operating humidity 10% to 90% (with no condensation)
Page 116: Temperature And Humidity Specifications
4 Specifications 4-5-2 Temperature and Humidity Specifications The maximum ambient operating temperature depends on CPU type, mounting orientation, and stor- age device type. The following tables provide ambient temperature and humidity details per CPU type. Temperature and Humidity Graphs The maximum ambient operating temperature and ambient humidity are specified per CPU type, mounting orientation and storage device type.
Page 117 4 Specifications • Operate the Panel PC with a SSD within the ambient temperature and humidity ranges as shown in the following graph. Operating temperature- Operating humidity range temperature-humidity range Temperature [°C] Additional Information Refer to the ambient temperature and humidity specifications per CPU type for CPU-specific limitations.
Page 118 4 Specifications ® ™ Temperature Specifications with an Intel Core i7-4700EQ CPU ® ™ Ambient operating temperature specifications for a Panel PC with an Intel Core i7-4700EQ CPU. Configuration Product Orientation Mounting Angle With 1 or 2 SSD's With 1 HDD Landscape and Portrait 0°...
Page 119 4 Specifications ® ™ Temperature Specifications with an Intel Core i5-4300U CPU ® ™ Ambient operating temperature specifications for a Panel PC with an Intel Core i5-4300U CPU. Configuration Product Orientation Mounting Angle With 1 or 2 SSD's With 1 HDD Landscape and Portrait 0°...
Page 120: Recycling Specifications
4 Specifications ® ® Temperature Specifications with an Intel Celeron 2980U CPU ® ® Ambient operating temperature specifications for a Panel PC with an Intel Celeron 2980U CPU. Configuration Product Orientation Mounting Angle With 1 or 2 SSD's With 1 HDD Landscape and Portrait 0°...
Page 121: Installation
Installation This section provides all installation details for the Industrial Panel PC. Unpack ......................5 - 3 5-1-1 Unpack Procedure ..................5 - 3 5-1-2 Items Supplied ....................5 - 4 Install Options ....................5 - 5 5-2-1 Install a Drive ....................5 - 5 5-2-2 Install the PCIe Card..................
Page 122 5 Installation 5-8-2 Connect UPS Using the I/O Connector ............5 - 54 Create Backup and Repair Data..............5 - 57 5-9-1 Create a New Rescue Disk with the Rescue Disk Creator ......5 - 58 5-9-2 Create a Windows System Repair Disk and a Windows Backup ....5 - 60 5 - 2 NY-series Industrial Panel PC User's Manual (W555)
Page 123: Unpack
5 Installation Unpack This section provides details on how to unpack the Industrial Panel PC. 5-1-1 Unpack Procedure Check the package for damage. If there is any visible damage: • Take photos of the package and save them. • Inform your supplier immediately. Open the package.
Page 124: Items Supplied
5 Installation 5-1-2 Items Supplied This section describes the items supplied with your Industrial Panel PC. • Industrial Panel PC • Documentation: • Safety Precautions sheets (English and Japanese) • EU Compliance sheet • Standards and Certifications sheet • Bag with: •...
Page 125: Install Options
5 Installation Install Options This section describes the installable options for the Industrial Panel PC. 5-2-1 Install a Drive A drive is a storage device for the Industrial Panel PC. Additional Information • Depending on the product configuration a drive is already installed. Refer to 1-4 Product Configuration on page 1 - 5 for storage details.
Page 126 5 Installation Pull the metal shielding cover out of the Panel PC. Align the connectors of the drive as shown on the bracket. Then insert the replacement drive in the bracket and insert the 4 mounting screws . Tighten these screws with a tor- que of 0.35 N·m.
Page 127 5 Installation Insert the bracket with the drive in the correct bay. • A drive for the operating system has to be inserted in bay A • The drive for additional storage can be inserted in bay B Ensure the bracket is completely in the Panel PC with an extra push. The drive bracket will lock into place when it is fully inserted.
Page 128 5 Installation Mount the drive cover. The lock lever will click when closed correctly. Finalize the drive installation when the Panel PC installation is completed. • If the drive is inserted in bay A: (1) Install an operating system (2) Power OFF and then Power ON (3) Ensure the drive is functional and confirm normal operation.
Page 129: Install The Pcie Card
5 Installation 5-2-2 Install the PCIe Card Prepare the following items: • The PCIe Card. A PCIe Card is not supplied with the Panel PC. Additional Information Refer to 4-1-7 PCIe Card Specifications on page 4 - 10 for PCIe specifications. •...
Page 130 5 Installation Pull the middle of the Card Clip to unlock it and remove it from the PCIe Drawer. Remove the slot cover from the PCIe Drawer. The thin sheet metal frame should stay in the PCIe Drawer. The slot cover is now removed. 5 - 10 NY-series Industrial Panel PC User's Manual (W555)
Page 131 5 Installation Place the PCIe Card in the PCIe Drawer. Ensure to insert the PCIe Card in the correct opening. Ensure the thin sheet metal frame is positioned between the PCIe Card and the PCIe Drawer to ensure a good conductive contact. Place the Card Clip in the PCIe Card and PCIe Drawer and then rotate the Clip to lock it...
Page 132 5 Installation Slide the Card Support so that it supports the side of the PCIe Card. The card should be in small groove so there is support below and above the card. Rotate the Card Support to lock it in place. Insert the PCIe Drawer in the Panel PC and then insert the two crosshead screws that hold the PCIe Drawer in place.
Page 133 5 Installation Remove the PCIe cover if the PCIe Card has external connectors. (1) Push the lock lever (2) Tilt the PCIe cover (3) Remove the PCIe cover The PCIe Card is installed. 5 - 13 NY-series Industrial Panel PC User's Manual (W555)
Page 134: Mount
5 Installation Mount This section describes how to mount the Industrial Panel PC in either a landscape or portrait orienta- tion in a control panel. WARNING Ensure that installation and post-installation checks of the product are performed by personnel in charge who possess a thorough understand- ing of the machinery to be installed.
Page 135: Product Orientation
5 Installation 5-3-2 Product Orientation The Industrial Panel PC can be mounted in a landscape or portrait orientation. Do not install the Industrial Panel PC in any of the following orientations. 5 - 15 NY-series Industrial Panel PC User's Manual (W555)
Page 136: Temperature
5 Installation 5-3-3 Temperature The temperature inside a control panel may be at least 10 to 15°C higher than outside the panel. Im- plement the following measures against overheating at the installation site and in the control panel, and allow a sufficient margin for the temperature. Distance for Cooling Adequate airflow around the Industrial Panel PC is required.
Page 137 Panel PC. • Do not install the Panel PC directly above any heat-generating equipment, such as heaters or transformers. • Do not install the Panel PC in a location exposed to direct sunlight. OMRON product OMRON product Natural Cooling ...
Page 138: Humidity
5 Installation OMRON product OMRON product Forced Air Circulation  Room Cooling Cool the entire room where the control panel is located. Cooler Control panel Room Cooling Low Temperatures The Panel PC may not start normally if the temperature is below 0°C when the power is turned ON.
Page 139: Atmosphere
Installation Location Install the Panel PC as far away as possible from high-voltage (600 V or higher) and power devices to ensure safe operation and maintenance. Example of Recommended Equipment Arrangement OMRON product Control panel Control panel High-voltage...
Page 140 • Keep the wiring between the transformer and the Panel PC as short as possible, twist the wires well, and keep the wiring separate from high-voltage and power lines. Power circuits Power supply for general operations circuits I/O power supply for Omron product I/O power supply for Omron product Noise Unit power supply for Omron product...
Page 141 5 Installation Wire External I/O Signal Lines Observe the following points when wiring the external I/O signal lines. • To absorb reverse electromotive force when an inductive load is connected to an output signal, con- nect a surge suppressor near the inductive load in an AC circuit, or connect a diode near the induc- tive load in a DC circuit.
Page 142 5 Installation • Power lines and signal lines • Input signals and output signals • Analog signals and digital signals • High-level signals and low-level signals • Communications lines and power lines • DC signals and AC signals • High-frequency devices (such as Inverters) and signal lines (communications) ...
Page 143 Ground of 200 mm 100 Ω or less Example: Separating an OMRON product from Power Lines  Wiring Ducts Whenever possible, route the cables and wires through wiring ducts. Install the wiring ducts so that it is easy to route the wires from the Industrial Panel PC directly into the duct.
Page 144: Prepare The Mounting Surface
5 Installation 5-3-8 Prepare the Mounting Surface The Industrial Panel PC can be mounted in a landscape or portrait orientation. The mounting hardware is integrated into the back of the Panel PC. Model Specifications Item 12.1 Inch models 15.4 Inch models Panel cutout dimen- -0 +1 -0 +1...
Page 145 5 Installation Ensure the mounting surface conforms to following requirements. Standards conformance Material Mounting panel requirements IP65 Steel Thickness 1.6 to 6.0 mm Aluminum Thickness 2.5 to 6.0 mm Create an opening in the mounting surface. The table before step 1 gives an overview of the cut out dimensions for the Panel PC. Prepare a rectangular cut out with the dimensions X1 and Y1.
Page 146: Mount The Panel Pc
5 Installation 5-3-9 Mount the Panel PC Ensure the panel cut out is ready before beginning the mounting procedure. Tools required: Torque screw driver with hexagon 2 mm bit. The Panel PC is equipped with 8 retractable mounting brackets on the back of the Panel PC. These brackets are used to fasten and secure the Panel PC to the mounting surface.
Page 147: Wire
5 Installation Wire This section describes how to wire the Industrial Panel PC. 5-4-1 Wiring Warnings and Cautions This section describes the Warnings and Cautions when wiring the Industrial Panel PC. WARNING Provide safety measures in external circuits to ensure safety in the sys- tem if an abnormality occurs due to malfunction of the product or due to other external factors affecting operation.
Page 148: Ground
5 Installation 5-4-2 Ground This section describes how to ground the Industrial Panel PC. WARNING Always connect to a ground of 100 Ω or less when installing the prod- uct. Caution The product has an internal non-isolated DC power supply. Circuit ground (0 VDC) and frame ground are connected together.
Page 149 5 Installation Considerations for Earthing Methods Local potential fluctuations due to lightning or noise occurred by power devices will cause potential fluctuations between ground terminals of devices. This potential fluctuation may result in device mal- function or damage. To prevent this, it is necessary to suppress the occurrence of a difference in elec- trical potential between ground terminals of devices.
Page 150 5 Installation Equipotential Bonding System Equipotential bonding is an earthing method in which steel frames and building structures, metal ducts and pipes, and metal structures in floors are connected together and make connections to the earth trunk line to achieve a uniform potential everywhere across the entire building. We recommend this earthing method.
Page 151 5 Installation Star Earthing If the earthing method used for the building is not equipotential bonding or the earthing system is un- known, choose (a) from among the earthing methods given below. (a) Connecting devices and noise sources to separate earth electrodes This is an earthing method to separately ground an earth electrode of the device that is connected with a communications cable or other devices and an earth electrode of a high-power device that could be a noise source, such as a motor or inverter.
Page 152 5 Installation Daisy Chain This is an earthing method to connect the device that is connected with a communications cable, other devices, and a device that could be a noise source using a daisy-chain topology to a common earth electrode. This earthing method is not recommended because the device that could be a noise source may inter- fere electromagnetically with other devices.
Page 153 5 Installation Ground Connection Details This section provides details about the ground connection. Use the ground terminal on the backside of the monitor to ground your Industrial Panel PC. The washers and screw are pre-mounted at the Industrial Panel PC. Remove the pre-mounted washers and screw and then mount the ground connection wire the Panel PC...
Page 154: Wire The Power Connector
5 Installation 5-4-3 Wire the Power Connector This section describes how to wire the power connector. Precautions for Safe Use • Do not perform a dielectric strength test. • Always use the recommended uninterruptible power supply (UPS) to prevent data loss and other system file integrity issues caused by unexpected power interruption.
Page 155 Maximum AWG according to UL/cUL • Power Supply Connector DC Power Supply The OMRON S8VK-series power supply is recommended for use with the Industrial Panel PC. Additional Information • Refer to 2-9-7 Power Supply on page 2 - 22 for more information.
Page 156 5 Installation Power Connector Wiring Procedure Use the following procedure to wire the power connector. 7 mm Remove the sheath from the power supply wires. Precautions for Safe Use Observe the following precautions to prevent broken wires. • When you remove the sheath, be careful not to damage the conductor. •...
Page 157: Wire The I/O Connector
5 Installation 5-4-4 Wire the I/O Connector This section describes how to wire the I/O connector. I/O Connector Wiring Materials Use the supplied I/O connector to connect the inputs and outputs to the Industrial Panel PC. Recommended I/O conductor sizes for the connector are provided in the table. Wire type Conductor cross-section Solid conductor...
Page 158 5 Installation Description Internal Circuit Details Power ON Input The Power ON Input and the UPS Mode Input are bi-di- rectional and isolated. Each input can be wired as sinking (NPN) or sourcing (PNP). Wire these according to the UPS Mode Input output device connected to the inputs.
Page 159 5 Installation I/O Connector Wiring Procedure Use the following procedure to wire the I/O connector. 7 mm Remove the sheath from the wires. Precautions for Safe Use Observe the following precautions to prevent broken wires. • When you remove the sheath, be careful not to damage the conductor. •...
Page 160: Connect
5 Installation Connect This section describes how to connect the Industrial Panel PC. 5 - 40 NY-series Industrial Panel PC User's Manual (W555)
Page 161: Connector Identification
5 Installation 5-5-1 Connector Identification The Industrial Panel PC connections are shown below. Item Name Description Power connector Lockable power connector I/O connector 2 inputs (UPS signal and power OFF control) and 1 output (power state) USB 3.0 connector 2 USB 3.0 connectors USB 2.0 connector 2 USB 2.0 connectors 10BASE-T/100BASE-TX/...
Page 162: Connection Procedure
5 Installation 5-5-2 Connection Procedure Use the following procedure to connect the Industrial Panel PC. Ensure the Panel PC is securely fastened to the mounting surface. Ensure the mounted Panel PC can be connected to power and peripheral devices. Remove dust cov- ers where applicable and store them in a safe place.
Page 163 5 Installation Connect the I/O connector. Hold the black part when inserting the connector, this enables the auto-locking mechanism. Do not tilt the orange levers because this will unlock the connector. Connect the DVI connector to an external monitor such as the Industrial Monitor and tighten the fastening screws.
Page 164: Initial Power On
Ensure that an optional connected monitor(s) is powered ON. Connect an optional keyboard and/or mouse. • If using an OMRON Industrial Panel PC this is not required because it has touch functionali- • Do not connect additional storage devices before the installation of the operating system completed.
Page 165 5 Installation Precautions for Safe Use Always use the SMART monitoring feature for storage devices that do not comply to the Omron Storage Device Specifications. Monitor the operating temperature and vibrations to ensure they stay within the environmental specifications of the storage device.
Page 166: Windows Startup First Time
Refer to 4-3-2 Supported Languages on page 4 - 23 for supported languages. • Legal stuff like license agreements • Windows 10: Select Accept to accept the combined Windows and OMRON license agree- ments. • Windows 7: Select Accept separately for Windows and for the OMRON utilities.
Page 167 5 Installation Additional Information • Use the Industrial Monitor Utility to adjust the display and/or connected OMRON Industrial Monitor. • Verify that the Panel PC is responding to finger touches on the touchscreen of the product. Install any third party software and drivers that may be required for your applications.
Page 168: Install Software
Use Windows Explorer to examine the contents of the user data partition mapped as drive let- ter D:. Open the Installer folder (D:\OMRON-NY\Installers) and locate the Internet Explorer installer files. Select the installer suitable for your system (32/64 bits) and language (English/Japanese).
Page 169: Firewall
5 Installation 5-7-2 Firewall An industrial network should be separated from an office network. Depending on the operating system a Firewall is preinstalled. • For Windows 10 the standard firewall software is installed and enabled. • For Windows 7 the Firewall software is not installed. Precautions for Safe Use •...
Page 170: Drivers And Custom Software
• For an Industrial PC without Operating System download the drivers from the OMRON download website. • For an Industrial PC with a Windows operating system the drivers for most OMRON devices and common third party devices are already available on the product. They will be installed automatically after the initial Windows configuration or upon connection of a device to the Panel PC.
Page 171: Connect Ups
PC can shutdown normally without data loss. The Panel PC can automatically start up again when the power is restored. To connect the Panel PC to the OMRON S8BA UPS use one of the following two options: • The USB connector and Power Attendant Lite Utility Software.
Page 172: Connect Ups Using The Usb Connector
• Installation files and manual for the UPS Settings Utility are available in the directory D:\OMRON-NY\Installers\UPS Settings Utility • For all other Panel PCs following software can be downloaded from the OMRON download site: • Drivers for the S8BA UPS •...
Page 173 5 Installation UPS (S8BA) 24 VDC Power Supply (S8VK) Output Industrial PC Input AC (L) 24 VDC AC (N) 0 VDC Refer to the UPS S8BA User's Manual (Cat. No. U702) for details. Refer to 5-4-3 Wire the Power Connector on page 5 - 34 for wiring details. Supply power to the Power Supply.
Page 174: Connect Ups Using The I/O Connector
• Installation files and manual for the UPS Settings Utility are availabe in the installer directory D:\OMRON-NY\Installers\UPS Settings Utility • For all other Panel PCs following software can be downloaded from the OMRON download site: • Drivers for the S8BA UPS •...
Page 175 5 Installation For Panel PCs that do not have Windows pre-installed: Download the above mentioned soft- ware. Wire the S8BA UPS. (1) Wire the input of the UPS to the output of the Power Supply. (2) Wire the output of the UPS to the power connector of the Panel PC. (3) Ground the UPS.
Page 176 5 Installation Simulate a power interruption and confirm a correct shutdown of the Panel PC. • Start the Panel PC • Start applications • Create a power interruption • Monitor the shutdown sequence and confirm a correct shutdown sequence The UPS is connected and configured. The Panel PC will shut down properly in case of a power supply interruption and restart automatically when the power is restored.
Page 177: Create Backup And Repair Data
5 Installation Create Backup and Repair Data Ensure the operating system, software and data can always be restored when required. Precautions for Correct Use Create backups according to the preventive maintenance schedule to prevent data loss and system integrity issues. Refer to 7-1-1 Preventive Maintenance Schedule on page 7 - 2 for intervals.
Page 178: Create A New Rescue Disk With The Rescue Disk Creator
5 Installation Creates a Windows System Repair Disk that will also include the MBR and the Windows partition. This procedure requires a separate PC with Windows 7 and a DVD writer and also an external DVD reader. The Repair Disk gives following options: •...
Page 179 5 Installation Select the connected USB storage device at Target disk:. Refer to Messages on page 3 - 16 for message details if required. The button Create Rescue Disk will be enabled as soon as a USB storage device is detected and accepted.
Page 180: Create A Windows System Repair Disk And A Windows Backup
5 Installation 5-9-2 Create a Windows System Repair Disk and a Windows Backup A Windows Repair Disk is a disk that enables users to restore the Windows operating system. A Windows Backup is a backup that enables users to restore a user-defined content set. Use the following procedures to ensure you can always go back to this situation.
Page 181 5 Installation Select Create a system repair disk. The Create a system repair disk window opens. Select the applicable drive letter of the DVD writer and then select Create disk. Wait until the disk is created and the remove it and store it in a safe place. Additional Information Refer to http://windows.microsoft.com/ for Backup and Restore details.
Page 182 5 Installation 5 - 62 NY-series Industrial Panel PC User's Manual (W555)
Page 183: Operating Procedures
Operating Procedures This section provides the operating procedures for the Industrial Panel PC. Touchscreen Operation ................6 - 2 Power ON ...................... 6 - 3 6-2-1 Power ON Using the Power Button .............. 6 - 3 6-2-2 Power ON Using the Power ON/OFF Input ..........6 - 3 6-2-3 Auto Power ON.....................
Page 184: Touchscreen Operation
6 Operating Procedures Touchscreen Operation WARNING Water or other liquid present on the touchscreen surface may create false touch behavior and unexpected operation. Wipe away liquid on the touchscreen before operation. Caution When using a system with multiple touch-screens, multiple users can perform simultaneous operations.
Page 185: Power On
6 Operating Procedures Power ON This section provides Power ON details. Precautions for Correct Use Do not turn ON the power supply to the product when a part of a human body or a conductive object is touching the surface of the touchscreen. Doing so will cause the touchscreen function- ality to be disabled.
Page 186: Auto Power On
6 Operating Procedures 6-2-3 Auto Power ON The Panel PC can be configured to start up when power is supplied to the power connector. The Power Loss Control BIOS setting controls this behavior. Set the Power Loss Control setting to Turn ON to activate the Auto Power ON function. Additional Information Refer to A-1-5 BIOS - Boot on page A - 10 for BIOS details.
Page 187: Power Off
6 Operating Procedures Power OFF This section provides Power OFF details. Before following power OFF procedures below, check that the Industrial Panel PC is ON by examining the LED indicators on the Panel PC. 6-3-1 Power OFF Using the Power Button Ensure all programs are closed.
Page 188: Power Off Using The Power On/Off Input
6 Operating Procedures 6-3-3 Power OFF Using the Power ON/OFF Input Ensure all programs are closed. If required, close all active programs. Supply a 24 VDC signal to the Power ON/OFF Input (pins 3 and 4) of the I/O connector. The input signal must remain ON for a minimum of 60 ms and a maximum of 750 ms to be correctly detected by the Industrial Panel PC.
Page 189: React To Product Messages
6 Operating Procedures React to Product Messages The Industrial Panel PC uses the Industrial PC Tray Utility icon in the system tray area of Win- dows to present Warnings and Errors. Additional Information Refer to 3-2-7 Industrial PC Tray Utility on page 3 - 18 for Industrial PC Tray Utility details. Check the Industrial PC Tray Utility icon for a Warning or Error symbol.
Page 190: React To Windows Messages
6 Operating Procedures React to Windows Messages Windows uses the Windows Action Center icon in the system tray area of Windows to present Warnings and Errors. Windows 10 Windows 7 Check the Windows Action Center icon for a Warning or Error symbol. A Warning or Error symbol displayed on the Windows Action Center icon indicates a Windows mes- sage.
Page 191 Maintenance This section provides an overview of all maintenance tasks for the Industrial Panel PC. Preventive Maintenance ................7 - 2 7-1-1 Preventive Maintenance Schedule ............... 7 - 2 7-1-2 Clean the Touchscreen Surface..............7 - 3 7-1-3 Clean the Panel PC ..................7 - 3 7-1-4 Check the Gasket Seal .................
Page 192: Preventive Maintenance
Monitor storage devices that do not Refer to Storage Device Considerations on page 2 - 20 for details. comply to the Omron specifications Clean the display Refer to 7-1-2 Clean the Touchscreen Surface on page 7 - 3 for display cleaning details.
Page 193: Clean The Touchscreen Surface
7 Maintenance Periodically but at least every 6 Reference months • Check the battery replacement date Refer to 7-2-2 Remove the Cover on page 7 - 15 to check the label. on the label at the inside of the cov- •...
Page 194: Check The Gasket Seal
• Firewall software • Internet browser • Windows security patches • OMRON software Precautions for Correct Use After an OS update or a peripheral device driver update for the product is executed, the product behavior might be different. Confirm that operation is correct before you start actual operation.
Page 195: Create Backup And Repair Data
7 Maintenance 7-1-6 Create Backup and Repair Data Ensure the operating system, software and data can always be restored when required. Precautions for Correct Use Create backups according to the preventive maintenance schedule to prevent data loss and system integrity issues. Refer to 7-1-1 Preventive Maintenance Schedule on page 7 - 2 for intervals.
Page 196 7 Maintenance • Startup Repair Examines Windows 7’s most integral files and repairs any missing or damaged files that may be keeping Windows 7 from starting. • System Restore Restores your Windows system files to an earlier point in time. It does not affect your personal files.
Page 197 7 Maintenance Create a System Backup with the Rescue Disk A Rescue Disk is a disk with the Rescue Disk Utility; this is the software that performs the system backup and system restore procedures of the Panel PC. A system backup contains the Windows partition, the boot partition and the MBR. Precautions for Correct Use The backup data of the Rescue Disk can be used to recover the data of the Panel PC that cre- ated that backup.
Page 198 7 Maintenance Use the arrow keys to select the Rescue Disk and then select Enter. The Recovery Manager window opens. The mentioned number can be different from the number displayed on your screen. Select Create Backup. The backup confirmation window opens. Windows 7 Windows 10 Select Continue to start the system backup process.
Page 199 7 Maintenance Create a Custom Backup with Windows Backup Use the following procedure to create a custom backup of the Industrial Panel PC with the Windows Backup and Restore mechanism. To manually or automatically create a customized backup: Select the Windows Start Button. In search field, input Backup.
Page 200 7 Maintenance Select Next. The following window will appear: Select Let me choose and then select Next. The following window will appear: Select all directories you want to include in the backup. Select Next. 7 - 10 NY-series Industrial Panel PC User's Manual (W555)
Page 201: Check The Backup And Repair Media
7 Maintenance Select Configure schedule or Change schedule and change the backup schedule. Ensure: • The interval is short enough to minimize data loss when a restore is required • The Industrial Panel PC is powered ON during the backup periods •...
Page 202 7 Maintenance Check the Custom Backup Medium (Windows) Use the following procedure to check the custom backup medium. Insert the backup in the Industrial Panel PC that created the backup. Follow the first few steps of the restore procedure to display the 'Restore files' screen. Refer to Restore a Custom Backup with Windows on page 7 - 33 for details.
Page 203: Corrective Maintenance
WARNING Do not attempt to disassemble, repair, or modify the product in any way. Doing so may result in malfunction or fire. Contact your local OMRON representative if the corrective maintenance actions did not solve the problem. 7-2-1 Warning and Error Messages Warning and Error messages are provided by the Industrial Panel PC when there is a potential prob- lem that may cause downtime.
Page 204 7 Maintenance Additional Information • Refer to 4-5-1 Operation Environment Specifications on page 4 - 25 for environmental details. • Refer to 7-2-2 Remove the Cover on page 7 - 15 for fan details. • Refer to 7-2-3 Replace the Fan Unit on page 7 - 16 for Fan Unit replacement details. •...
Page 205: Remove The Cover
7 Maintenance 7-2-2 Remove the Cover The Cover of the Industrial Panel PC provides access to the following items. • Battery • Fan Unit (applies to products with active cooling) The inside of the Cover contains the following information. • Battery replacement date •...
Page 206: Replace The Fan Unit
7 Maintenance 7-2-3 Replace the Fan Unit The fans are mounted in the Fan Unit. Use the following procedure to replace the Fan Unit. Precautions for Safe Use If the replacement Fan Unit has been stored over 6 months then check the performance of the Fan Unit after replacement.
Page 207 7 Maintenance Replace the complete Fan Unit. (1) Push the lever to unlock the Fan Unit. (2) Lift the lever to tilt the Fan Unit. (3) Remove the complete Fan Unit. Insert the new Fan Unit in the Panel PC. Ensure the end of the Fan Unit is positioned under the fan guide Connect the Fan Connectors to the board.
Page 208: Replace The Battery
7 Maintenance 7-2-4 Replace the Battery Precautions for Safe Use • The Battery may leak, rupture, heat, or ignite. Never short-circuit, charge, disassemble, heat, or incinerate the Battery or subject it to strong shock. • Dispose of any Battery that has been dropped on the floor or otherwise subjected to exces- sive shock.
Page 209 7 Maintenance Lift the battery from the compartment. Disconnect the battery from the battery connector Connect the new battery to the battery connector. Place the new battery in the Panel PC. Ensure the wires are at the side of the battery and not on top of the battery. If the wires are on top of the battery this might make closing and opening the cover more difficult.
Page 210: Replace A Drive
7 Maintenance 7-2-5 Replace a Drive Use the following procedure to replace a drive. Prepare the new drive. Additional Information • Refer to 1-4 Product Configuration on page 1 - 5 for the installed drive model. • Refer to 2-9-3 Storage Devices on page 2 - 20 for the available drive models. •...
Page 211 7 Maintenance Pull the metal shielding cover out of the Panel PC. Insert the drive cover in the drive bracket bay and move it down so that it locks in the drive bracket. 7 - 21 NY-series Industrial Panel PC User's Manual (W555)
Page 212 7 Maintenance Remove the drive bracket from the Panel PC using the drive cover. Remove the 4 mounting screws and then remove the drive from the drive bracket. 7 - 22 NY-series Industrial Panel PC User's Manual (W555)
Page 213 7 Maintenance Align the connectors of the replacement drive as shown on the bracket. Then insert the re- placement drive in the bracket and insert the 4 mounting screws . Tighten these screws with a torque of 0.35 N·m. Insert the bracket with the replacement drive into the correct bay of the Panel PC. Ensure the bracket is completely in the Panel PC with an extra push.
Page 214 7 Maintenance Insert the metal shielding cover. Mount the drive cover. The lock lever will click when closed correctly. Restore the drive data. • For products NYB£ and NYP£: • For an Industrial PC with RTOS Controller restore the drive data from a backup. •...
Page 215: Replace The Pcie Card
7 Maintenance 7-2-6 Replace the PCIe Card Use the following procedure to replace the PCIe Card. Prepare: • The PCIe Card Additional Information Refer to 4-1-7 PCIe Card Specifications on page 4 - 10 for PCIe specifications. • The PCIe Card mounting materials: Card Clip and Card Support These are supplied with the Industrial Panel PC.
Page 216 7 Maintenance Push the notch at the bottom of the Card Support up and rotate the Card Support. Slide the Card Support away from the card to create space and to remove it. Pull the middle of the Card Clip to unlock it and remove it from the PCIe Drawer. 7 - 26 NY-series Industrial Panel PC User's Manual (W555)
Page 217 7 Maintenance Remove the PCIe Card from the PCIe Drawer. The PCIe Card is now removed. Place the replacement PCIe Card in the PCIe Drawer. Ensure the PCIe Card is inserted into the correct opening. 7 - 27 NY-series Industrial Panel PC User's Manual (W555)
Page 218 7 Maintenance Place the Card Clip in the PCIe Card and PCIe Drawer and then rotate the Clip to lock it in place. Slide the Card Support so that it supports the side of the PCIe Card. Rotate the Card Support to lock it in place.
Page 219 7 Maintenance Insert the PCIe Drawer in the Panel PC and then insert the two crosshead screws that hold the PCIe Drawer in place. Remount the Panel PC. Confirm normal operation. The PCIe Card is replaced. 7 - 29 NY-series Industrial Panel PC User's Manual (W555)
Page 220: Restore And Repair Data
Refer to Repair Windows with the System Repair Disk on page 7 - 36 for Windows repair disk de- tails. Additional Information Contact your OMRON representative when the Panel PC needs to be restored and you do not have a system backup. 7 - 30...
Page 221 7 Maintenance Restore a System Backup with the Rescue Disk A Rescue Disk is a disk with the Rescue Disk Utility; this is the software that performs the backup and restore procedures. Use the Rescue Disk to restore the system backup. This will restore the Windows partition, the boot partition and the MBR to the moment the Rescue Disk backup was created.
Page 222 7 Maintenance Use the arrow keys to select the Rescue Disk and then select Enter. The Recovery Manager window opens. The mentioned number can be different from the number displayed on your screen. Select Restore Backup. The restore selection window opens. Windows 7 Windows 10 Select:...
Page 223 7 Maintenance Restore a Custom Backup with Windows Use the following procedure to restore a custom backup of user files with Windows Backup and Re- store. Additional Information • With Windows Backup and Restore it is not possible to restore the complete boot disk or the operating system.
Page 224 7 Maintenance Select Restore my files. The restore files window opens. Use the buttons Search and Browse for files or Browse for folders to find the created back- Add the files and folders to be restored and then select Next. Additional Information With this Windows Restore procedure it is not possible to restore files that are in use.
Page 225 7 Maintenance Select In the original location and then select Next. The progress window will appear. Wait until the message Your files have been restored appears and then select Finish. The files are restored. 7 - 35 NY-series Industrial Panel PC User's Manual (W555)
Page 226 7 Maintenance Repair Windows with the System Repair Disk Use the following procedure to repair the Windows operating system with a System Repair Disk. Ensure: • The Industrial Panel PC is powered OFF. • A System Repair Disk is created earlier and it is available. To perform a system repair: Connect a USB keyboard, a USB mouse and a USB external DVD drive to the Industrial Panel Power ON the Industrial Panel PC and immediately press the F11 key repeatedly.
Page 227: Allocate A Drive In Windows
7 Maintenance 7-2-8 Allocate a Drive in Windows An added drive must be allocated before it becomes visible in Windows. To allocate a drive in Windows: Ensure the Panel PC is ON. Select the Windows Start Button. In the search field, input partition. Select Create and format hard disk partitions.
Page 228: Windows Event Viewer
7 Maintenance 7-2-9 Windows Event Viewer The Windows Event Viewer displays logged events. These logged events can support you in corrective maintenance. Select the Windows Start Button. In the search field, input Event. Select View event logs. The Event Viewer opens. Item Selection tree Event list...
Page 229 7 Maintenance Filter Events and Event Details This procedure explains how to filter events in the Windows event log. To filter the events: Open the Windows Event Viewer. Refer to 7-2-9 Windows Event Viewer on page 7 - 38 for details. In the Actions list select Filter Current Log.
Page 230: Windows Low On Memory
7 Maintenance 7-2-10 Windows Low on Memory The Windows memory can become low when adding applications and/or updates. When the memory is low a new window with the message Close programs to prevent information loss will appear. Increase the paging file size to solve this problem. To increase the page file size: Select the Windows Start Button.
Page 231: Windows Blue Screens
7 Maintenance 7-2-11 Windows Blue Screens A blue screen will appear if Windows crashes. Possible solutions for repetitive blue screens: Install the latest updates of Windows. Install the latest device drivers. If changes to the system were made: Undo recent hardware changes, undo recent driver up- dates and then roll back system to latest working state.
Page 232: Correct Touchscreen Functionality
7 Maintenance 7-2-13 Correct Touchscreen Functionality The touchscreen functionality can have several unwanted situations. (1) With one display: • No touch response Refer to for details. • The touch response is at a different position than the actual touch Refer to Calibrate Touchscreen on page 7 - 43 for details. (2) With more than one display: When other monitors are connected it is possible the touch actions on the touchscreen monitor show a response on another monitor.
Page 233 7 Maintenance Calibrate Touchscreen When the resolution of the touchscreen monitor is changed the touch functionality might not scale ac- cordingly. The result is that touching the touchscreen monitor will display the touch at incorrect loca- tions. Use the following procedure to calibrate the touchscreen functionality of your Industrial Panel PC. Select the Windows Start Button.
Page 234 7 Maintenance Correct Touchscreen Functionality with a PenMount Message When a touchscreen monitor receives incorrect signals the message PenMount Device touch disabled at abnormal state. Please remove palm or water. appears. Touching the display has no effect. The OK Button will remove the pop-up so the display can be used with a mouse and a keyboard. Use the following procedure to enable the touchscreen functionality of your Industrial Panel PC.
Page 235 7 Maintenance Select the Setup Button. An empty screen appears with only the message Touch this screen to identify it as the touchscreen. If this is not the Table PC screen, press Enter to move to the next screen. To close the tool, press Esc.
Page 236 7 Maintenance 7 - 46 NY-series Industrial Panel PC User's Manual (W555)
Page 237 Appendices BIOS ......................A - 2 A-1-1 BIOS Overview ..................... A - 2 A-1-2 BIOS - Main ....................A - 4 A-1-3 BIOS - Advanced ..................A - 5 A-1-4 BIOS - Chipset....................A - 9 A-1-5 BIOS - Boot....................A - 10 A-1-6 BIOS - Security ...................
Page 238: A-1 Bios
Appendices A-1 BIOS This section provides the BIOS information of the Industrial Panel PC. WARNING Changing BIOS information is only allowed for the engineer in charge that possesses a thorough understanding of the BIOS settings because it can change the behavior of the product. A-1-1 BIOS Overview The BIOS contains settings that influence the behavior of the Industrial Panel PC.
Page 239 Appendices Refer to A-1-5 BIOS - Boot on page A - 10 for Boot details. • Security Refer to A-1-6 BIOS - Security on page A - 11 for Security details. • Save & Exit Refer to A-1-7 BIOS - Save & Exit on page A - 11 for Save and Exit details. BIOS - Navigation and Function Keys The right part of the BIOS screens is divided in two parts.
Page 240: A-1-2 Bios - Main
Appendices BIOS Password & Write Protection A BIOS password protects the BIOS setup program from unauthorized access. This ensures that users cannot change the system configuration without authorization. With an assigned BIOS pass- word, the BIOS prompts the user for a password on a setup entry. If the password entered is wrong, the BIOS setup program will not launch.
Page 241: A-1-3 Bios - Advanced
Appendices A-1-3 BIOS - Advanced This section provides advanced BIOS information. Changeable BIOS Advanced parameters and their factory default values: Item Default / Remark Disabled Machine Control Graphics Primary Graphics Device Auto Internal Graphics Device Auto IGD Pre-Allocated Graphics Memory IGD Total Graphics Memory 256M Primary IGD Boot Display Device...
Page 242 Appendices Item Default / Remark PCI & PCI Express PCI Express Gen 2 Set- Completion Timeout Default tings ARI Forwarding Disabled AtomicOp Requester En- Disabled able AtomicOp Egress Block- Disabled IDO Request Enable Disabled IDO Completion Enable Disabled LTR Mechanism Enable Disabled End-End TLP Prefix Disabled...
Page 243 Appendices Item Default / Remark PCI & PCI Express GbE Channel 0 PCI Express Port 0 Enabled ASPM Disabled GbE Channel 1 PCI Express Port 1 Enabled ASPM Disabled PCI Express Port 0, 1 (x4 PEG1 Speed Auto PEG1 ASPM Disabled Gen3) PEG1 De-emphasis Con-...
Page 244 Appendices Item Default / Remark CPU Information Display of CPU parame- ters Set Boot Freq Ratio Enabled *2 *1 Hyper-Threading Active Processor Cores Limit CPUID Maximum Disabled Execute Disable Bit Enabled Intel Vitalization Technology Enabled Hardware Prefetcher Enabled Adjacent Cache Line Prefetch Enabled Enabled *2 *1...
Page 245: A-1-4 Bios - Chipset
Appendices Item Default / Remark SMART Settings Disabled Smart Self Test UEFI Network Stack UEFI Network Stack Disabled NVMe Configuration No NVME device found Intel® Ethernet NIC Configuration Link Speed Auto Negotiated Connection I218-LM - Wake On LAN Enabled Unique MAC Address Blink LEDs ®...
Page 246: A-1-5 Bios - Boot
Appendices A-1-5 BIOS - Boot Provides Boot information and configuration settings. Changeable BIOS Boot parameters and their factory default values: Item Default / Remark Quiet Boot Disabled Setup Prompt Timeout Bootup NumLock State Battery Support Auto (Battery Manager) Remain Off Power Loss Control CSM &...
Page 247: A-1-6 Bios - Security
Appendices A-1-6 BIOS - Security Provides security information like BIOS Password and HDD information. WARNING Security setting adjustments should only be performed by the engineer in charge that possesses a thorough understanding of the security set- tings. Selecting non-recommended security settings can put your sys- tem at risk.
Page 248: A-2 Customize Windows
Appendices A-2 Customize Windows This section provides an overview of the tools to customize Windows. A-2-1 Enhanced Write Filter The Enhanced Write Filter (EWF) is applicable to Panel PCs with a Windows 7 operating system. The Enhanced Write Filter (EWF) intercepts disk changes and stores them into a memory overlay in RAM memory instead of applying them to the original volume.
Page 249: A-2-2 File-Based Write Filter
Appendices Command Function Remarks Writes all the changes in the mem- Protection is also disabled immedi- ewfmgr c: -commitanddisable - ory overlay to the physical disk im- ately. No restart is required. live mediately, and disables the disk protection. Disables the disk protection. The protection is not disabled until ewfmgr c: -disable the system is restarted.
Page 250 Appendices • Minimize write actions to the disk. For example, minimize write access to flash memory. Write cycles on flash memory are limited for technical reasons. Usage FBWF is included in the Windows Embedded Standard 7 image and disabled by default. The configu- ration of this component can be defined with the command line tool FBWFMGR.EXE To run to FBWF Manager, open the Command Prompt with Administrator rights.
Page 251: A-2-3 Unified Write Filter
Appendices A-2-3 Unified Write Filter The Unified Write Filter (UWF) is applicable to Panel PCs with a Windows 10 operating system. The UWF intercepts disk changes and stores them into a memory overlay in RAM memory instead of applying them to the original volume. Additional Information Refer to the Microsoft Developer Network (MSDN) for detailed information.
Page 252 Appendices • When the UWF function is enabled and a large amount of data is written, the system memory space will be reduced and operation may become unstable. To prevent this problem, it is recommended that a large amount of data be written to a different location. •...
Page 253: Trusted Platform Module
Appendices A-2-4 Trusted Platform Module The Trusted Platform Module (TPM) integrates encryption keys into the Industrial Panel PC in order to secure hardware and software. The TPM enables the following security functions: • Ensure the integrity of the platform: The TPM can be used in the BIOS and other software to protect against unauthorized manipulation.
Page 254: A-3 Dvi Connector Pin Details
Appendices A-3 DVI Connector Pin Details This section provides the pin details for the DVI-I and the DVI-D connectors. A-3-1 DVI-I Connector Pin Details Pin details of the DVI-I connector. C1 C2 C3 C4 The pin layout represents the DVI-I connector on the Industrial Panel PC. Pin numbers increase from left to right for every row.
Page 255: A-3-2 Dvi-D Connector Pin Details
Appendices Signal Name Function TMDS clock+ Digital clock+ TMDS clock− Digital clock− Analog red ® ™ For Intel Core i7-4700EQ CPU type Analog green ® ™ For Intel Core i7-4700EQ CPU type Analog blue ® ™ For Intel Core i7-4700EQ CPU type Analog horizontal sync ®...
Page 256 Appendices Signal Name Function TMDS data 0− Digital blue− (link 1) and digital sync TMDS data 0+ Digital blue+ (link 1) and digital sync 0 VDC TMDS data 0/5 shield Not connected Not connected 0 VDC TMDS clock shield TMDS clock+ Digital clock+ TMDS clock−...
Page 257: A-4 Rs-232C Connector Pin Details
Appendices A-4 RS-232C Connector Pin Details The pin layout represents the RS-232C connector on the Panel PC. Signal Name 0 VDC The 0 VDC pin is internally connected to the ground connection. Additional Information Refer to 5-4-2 Ground on page 5 - 28 for grounding details. A - 21 NY-series Industrial Panel PC User's Manual (W555)
Page 258 Appendices A - 22 NY-series Industrial Panel PC User's Manual (W555)
