Linear Sensor Indicator
K3HB - S
Visual clarity and instantaneous measurement.
Control status and judgement results can be ascertained
at a glance using the display color and position meter.

Advertisement

loading
Need help?

Need help?

Do you have a question about the K3HB-S and is the answer not in the manual?

Questions and answers

Related Manuals for Omron K3HB-S

Summary of Contents for Omron K3HB-S

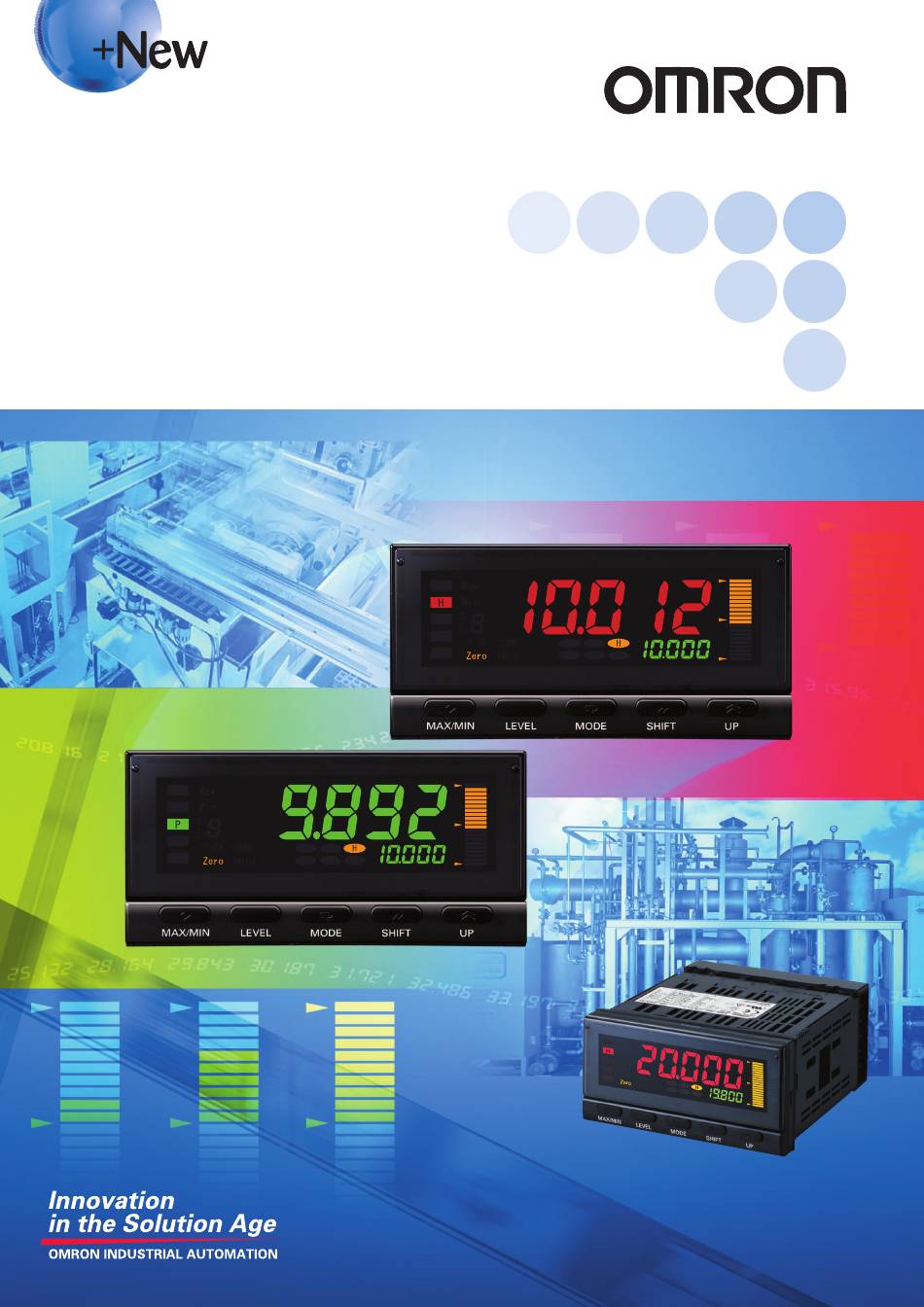

  • Page 1 Linear Sensor Indicator K3HB - S Visual clarity and instantaneous measurement. Control status and judgement results can be ascertained at a glance using the display color and position meter.
  • Page 2 Modular Construction for Adapting to Various Specifi- the Front Panel) cations A short body of only 95 mm contributes to the development of slimmer and smaller control panels and installations. shorter than earlier models Depth: 95 mm K3HB-S Linear Sensor Indicator...
  • Page 3 Linear Sensor Indicator K3HB-S A Linear Sensor Indicator Capable of High- speed Response at 2,000 Times per Second • Effective for high-speed measurement and discrimination with a sampling period of 0.5 ms and an output response time of 1 ms max.
  • Page 4 Part number Applicable sensor Applicable relay/ Applicable event power supply/ transistor output input boards output boards boards 100 to 240 VAC K3HB-SSD K33-CPA K34-C1 K35-1 100-240VAC K33-A K34-C2 K35-2 K34-T1 K35-3 24 VAC/VDC K3HB-SSD K34-T2 K35-4 24VAC/VDC K3HB-S Linear Sensor Indicator...
  • Page 5 Note: A control power supply capacity greater than the rated value is required when power is turned ON. Particular attention is required when using two or more DC power supply models. When power is turned ON or when the startup compensation timer operates, all outputs will turn OFF if the Unit is not performing measurement. K3HB-S Linear Sensor Indicator...
  • Page 6 EN61000-4-5: 1 kV with line (power line), 2 kV with ground (power line) Radio-frequency electric interference EN61000-4-6: 3 V (0.15 to 80 MHz) Momentary power interruptions from voltage dips EN61000-4-11: 0.5 cycle, 0 ° , 180 ° , 100% (rated voltage) K3HB-S Linear Sensor Indicator...
  • Page 7 30 VDC, 1 A Rated through current Mechanical life 5,000,000 operations expectancy Electrical life ex- 100,000 operations pectancy Transistor Output Maximum load voltage 24 VDC Maximum load current 50 mA 100 µ A max. Leakage current K3HB-S Linear Sensor Indicator...
  • Page 8 6 : COM S-TMR 7 : BANK4 8 : BANK2 9 : BANK1 10 : COM HOLD B Sensor Power Supply/Output Applicable connector: RESET XG4M-1030 (OMRON) 12-VDC, 80-mA ZERO 12-VDC, 80-mA models with PASS output models (K33-CPA) (K33-A) PASS Sensor power...
  • Page 9 • Use open collector or no-voltage contacts for event input. Note: PNP types are also available. 12 V 12 V S-TMR : D2 HOLD : D3 RESET : D4 ZERO : D5 TIMING 560 Ω 4.7 KΩ 750 Ω 3.9 KΩ K3HB-S Linear Sensor Indicator...
  • Page 10 MODE Key and press the SHIFT Key. The SV display will flash. Change the comparative set value with the SHIFT and UP Keys. (This is possible only if setting change protect is OFF.) K3HB-S Linear Sensor Indicator...
  • Page 11 First, move to initial setting level. Press the LEVEL Key in initial setting level (less than 1 second) each time to move to the next level. Moving to the next level from the output test level returns you to the initial setting level. K3HB-S Linear Sensor Indicator...
  • Page 12 Press the SHIFT and UP Keys [MODE] to set the set values. test [MODE] 99999 Output test To next parameter If no key is pressed for 5 seconds, the set value is registered and the display returns to monitor status. K3HB-S Linear Sensor Indicator...
  • Page 13 No operation for 5 s Comparative Comparative set value 0.LL set value 7.LL No operation for 5 s No operation for 5 s Bank copy Bank copy No operation for 5 s No operation for 5 s K3HB-S Linear Sensor Indicator...
  • Page 14 No operation for 5 s Startup s-tmr compensation 00.0 99.9 timer No operation for 5 s s.err Input error off on enable No operation for 5 s Move to calibration 9999 99999 level No operation for 5 s K3HB-S Linear Sensor Indicator...
  • Page 15 (Limits key-operated execution and clearing of forced-zero and tare zero.) Parameter Set value Restriction details Zero Forced-zero using key operations protect and tare zero execution/clear: Enabled =r.pt Forced-zero using key operations and tare zero execution/clear: Prohibited K3HB-S Linear Sensor Indicator...
  • Page 16 Press the LEVEL Key for at least 3 s to register the new unit mounting a new Unit or changing the position of a Unit. Unit configuration. (UNIT) (CHG) disp Display error Repair is necessary. Consult your OMRON representative. (DISP) (ERR) Internal memory error (SYS) (ERR) Error in non-volatile memory Press the LEVEL Key in this state for at least 3 s to return to the factory settings.
  • Page 17 Engineering Data Power Supply Derating Curve for Sensor −20 −10 Ambient temperature (°C) Note: The value for standard mounting. Note that the derating curve differs depending on the mounting. K3HB-S Linear Sensor Indicator...
  • Page 18 Z4W-V25R Scaling input inp.a1 4.000 Output (mA) • The eight switchable banks make it possible for the K3HB-S to value A1 measure different kinds of objects smoothly. Scaling dis- dsp.a1 -4.00 •...
  • Page 19 Display K3HB-S PASS Comparative outputs Measurement of Disc Eccentricity K3HB-S Setting Details Initial Setting Level ( The following operations are possible with K3HB-S: Parameter Charac- Remarks • The peak-to-peak hold function can be used for simple eccentricity ters value measurement by measuring the difference between the maximum...
  • Page 20 When the workpiece has rotated once or more, the desired value A is measured. Measurement of Panel Thickness K3HB-S Setting Details RUN Level The following operations are possible with the K3HB-S: Parameter Characters Set value Remarks • Calculation mode K–(A+B) can be used to convert panel thickness...
  • Page 21 Scaling dis- dsp.a1 21.00 play value A1 Scaling input inp.a2 20.000 Z4W-V25R value A2 Output (mA) Scaling dis- dsp.a2 29.00 K3HB-S play value A2 Input type B in-tb 4-20 Scaling input inp.b1 4.000 value B1 Displacement (mm) Scaling dis- dsp.b1 21.00...
  • Page 22 Input Adjustment Level ( Parameter Characters Set value Remarks The following operations are possible with the K3HB-S: Timing hold tmg-h Sampling hold • Calculation mode A–B can be used to measure steps using two displacement sensors. Note: Only the parameters required for settings are displayed in the •...
  • Page 23 22.8 mm 23.2 mm Sync sensor output 3. 00 2. 80 3. 20 K3HB-S display K3HB-S PASS comparative outputs * The previous judgement result is held until the Sync Sensor turns ON. (All outputs turn OFF when RESET input is received.)
  • Page 24 Input Calculation • The K3HB-S has two input circuits. The input ranges for these cir- cuits can be set independently. For example, one can be set to 4 to 20 mA and the other can be set to 1 to 5 V.
  • Page 25 PASS Output Change Output LL Output De-energization Comparative results other than PASS and error signals can be output from the PASS terminal. The operation of comparative outputs with respect to the compara- tive result can be reversed. K3HB-S Linear Sensor Indicator...
  • Page 26 • Locations subject to shock or vibration. Sensor Indicators. Do not, however, allow only the terminals to be 2. Do not block heat dissipation around the product, i.e., provide suf- cooled. Doing so will increase measurement error. ficient space for heat dissipation. K3HB-S Linear Sensor Indicator...
  • Page 27 • There are no unit stickers attached to the Sensor at the time of delivery. • Select the appropriate units from the unit sticker sheets provided. LCD Field of Vision The K3HB-S is designed to have the best visibility at the angles shown in the following diagram. 10° 30°...
  • Page 28 Warranty and Limitations of Liability WARRANTY OMRON's exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified) from date of sale by OMRON. OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS.
