To engage the power feed rollers, pull or push the power feed handle with the
motor running. Pushing the handle in, selects 20 FPM and pulling it out selects
16 FPM. The centre position is neutral.
Note. Only engage and disengage the power feed with the motor running.
Adjusting the table height.

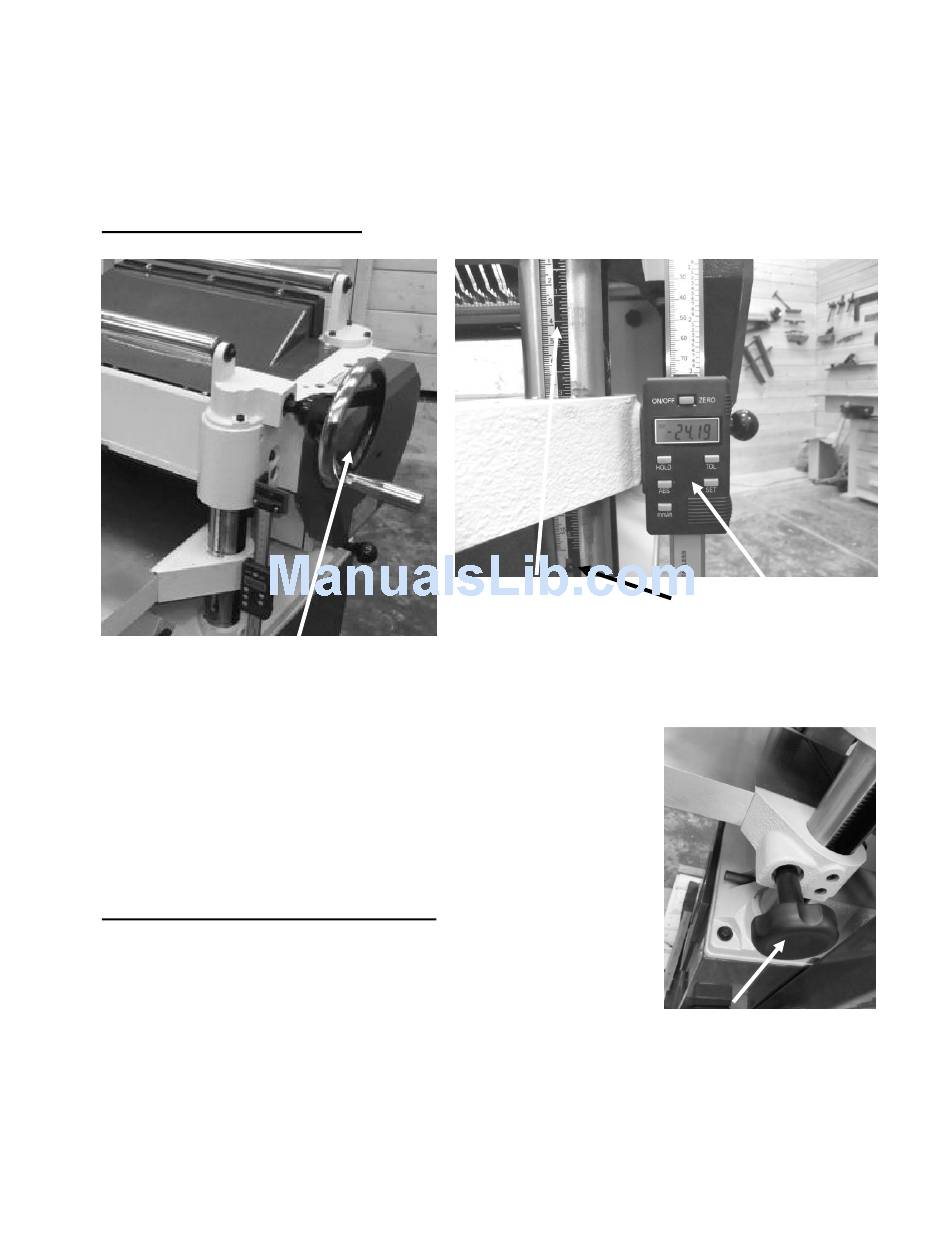

Height scale
Scale fixing screw
Height digital read out
Table height adjusting handle
To adjust the height of the table, rotate the height adjusting handle. Once at the
required height, clamp the table in position with the table clamp handle.
The height scale comes factory set, and should not need
adjustment. If movement has taken place during shipping,
adjust as follows.
1. Plane a plank of wood to a convenient thickness.
2. Check the thickness of the plank.
3. Check the reading on the scale.
4. If adjustment is required, loosen the fixing screws,
readjust the position of the scale, and tighten the screws.
Set the digital read out as follows.
1. Skim the job in hand.
2. Measure the thickness of the job.
3. Press and hold for a few seconds the set button. The
display will go to zero.
Table clamp handle
4. Adjust the table for the amount that you require to be
removed.
Note. Always clamp the table in position with the clamp handles after table
adjustment.
