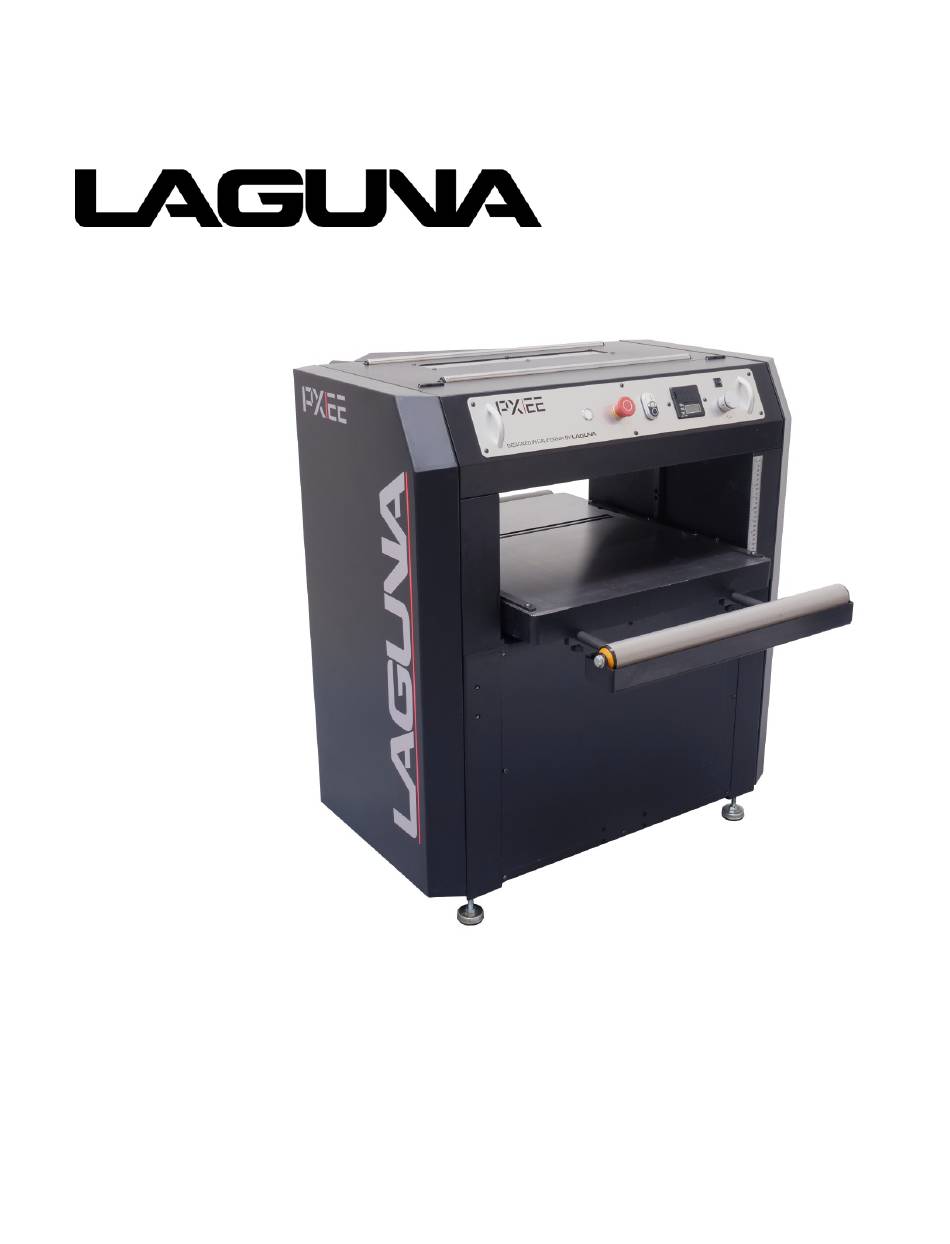

PX-22 SHEARTEC II Planer
Owner's Manual
Owner's Manual
Laguna Tools
744 Refuge Way Grande Prairie, TX
Service: +1 (800) 234 1976
Email: customerservice@laguantools.com
Copyright Laguna Tools 2022
Updated January 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX-22 SHEARTEC II and is the answer not in the manual?

Questions and answers

Related Manuals for Laguna Tools PX-22 SHEARTEC II

Summary of Contents for Laguna Tools PX-22 SHEARTEC II

  • Page 1 All manuals and user guides at all-guides.com PX-22 SHEARTEC II Planer Owner's Manual Owner's Manual Laguna Tools 744 Refuge Way Grande Prairie, TX Service: +1 (800) 234 1976 Email: customerservice@laguantools.com Copyright Laguna Tools 2022 Updated January 2022...
  • Page 2 All manuals and user guides at all-guides.com...
  • Page 3 For immediate service on any Laguna Tools products: Call: +1 (800) 234 1976 Email: customerservice@lagunatools.com Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved. 04/01/2019 LAGUNA AMERICAN HEADQUARTERS Texas: 744 Refuge Way Suite 200, Grand Prairie, Texas 75050, U.S.A. Phone: +1-800-332-4094 Huntington Beach: 7291 Heil Ave Huntington Beach, CA 92647, U.S.A.
  • Page 4 - without the written permission of Laguna Tools. Products that are referred to in this document are either trademarks and/or registered trademarks of Laguna Tools, Inc. The publisher and the author make no claim to these trademarks.

  • Page 5: Table Of Contents

    All manuals and user guides at all-guides.com Contents Contents Letter to the Woodworker General Information Electrical Safety ........................ 13 Grounding Methods ............................18 Pow er Supply Circut Requirem ents ........................ 22 Specifications ........................23 Machine Overview ......................24 Unboxing & Placement ..................... 26 Tool Inventory List ......................
  • Page 6 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER Laguna Tools 2022...

  • Page 7: Letter To The Woodworker

    Letter to the Woodworker Thank you for investing in a PX-22 Planer by Laguna Tools. This planer is one of a family of unique machines proudly offered by Laguna Tools. Every Laguna machine is engineered for years of dependable service. Please feel free to contact Laguna Tools if you have a question or suggestion.

  • Page 8: General Information

    All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER General Information Safety Protocols: Read and understand all warnings and operation instructions before using any tool or equipment. Always follow basic safety precautions to reduce the risk of personal injury. Improper operation, maintenance or modification of tools or equipment could result in serious injury and property damage.
  • Page 9 All manuals and user guides at all-guides.com General Information...
  • Page 10 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER...
  • Page 11 All manuals and user guides at all-guides.com General Information...
  • Page 12 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER...

  • Page 13: Electrical Safety

    All manuals and user guides at all-guides.com General Information Electrical Safety Electrical Safety- A Electrical Cord and Plug is not provided with Ordered Machine. Make sure to follow Electrical Installation stated in the instructions below. Power Supply A separate electrical circuit should be used for each machine. This circuit should not be less than the wiring listed below and should be protected with an appropriate circuit breaker based on the total running and start-up amperage's (listed below).
  • Page 14 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER If this information is different than what is stated on the Motor Specification Plate - omit this information. It is possible that the documentation is outdated to a machine change - such as a different motor. Always check the motor plate prior to any wiring.
  • Page 15 All manuals and user guides at all-guides.com General Information 1.) All Grounded, Cord-Connected Machines: In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment grounding conductor and a grounding plug.
  • Page 16 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER 2.) Grounded, cord-connected machines intended for use on a supply circuit having a nominal rating less than 150 volts: This tool is intended for use on a circuit that has an outlet that looks like the one illustrated in Fig.
  • Page 17 All manuals and user guides at all-guides.com General Information EXTENSION CORDS ARE NOT RECOMMENDED. If the customer needs to use an extension cord, the Extension Cord must be qualified to fall within Local Electrical Code (USA, CSA, etc.). If the customer utilizes an Extension Cord that does not fall within Code and causes damage to machine, the Warranty will be Voided.

  • Page 18: Grounding Methods

    All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER Grounding Methods Grounding Methods: Electrical Cord and Plug is not provided with Ordered Machine. When a proper qualified electrical cord and plug is installed please follow the following ground methods and procedures.
  • Page 19 All manuals and user guides at all-guides.com General Information insulation having an outer surface that is green with or without yellow stripes is the equipment-grounding conductor. If repair or replacement of the electric cord or plug is necessary, do not connect the equipment-grounding conductor to a live terminal.
  • Page 20 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER **WARNING** EXTENSION CORDS ARE NOT RECOMMENDED. If the customer needs to use an extension cord, the Extension Cord must be qualified to fall within Local Electrical Code (USA, CSA, etc.). If the customer utilizes an Extension Cord that does not fall within Code and causes damage to machine, the Warranty will be Voided.
  • Page 21 All manuals and user guides at all-guides.com General Information...

  • Page 22: Power Supply Circut Requirements

    All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER Power Supply Circut Requirements The power source circuit for your machine must be grounded and rated for the amperage given below. Never replace a circuit breaker on an existing circuit with one of higher amperage without consulting a qualified electrician to ensure compliance with wiring codes.

  • Page 23: Specifications

    All manuals and user guides at all-guides.com General Information Specifications...

  • Page 24: Machine Overview

    All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER Machine Overview The Limiter: Acts as a stop to prevent the cutterhead from contacting the table and to prevent stock from sliding past the edge of the cutterhead. Table Rollers: The Roller facilitates movement of the Work Piece across the Table.
  • Page 25 All manuals and user guides at all-guides.com General Information CAUTION: AS WITH ALL GEAR BOX SHIFTERS, IT IS VERY IMPORTANT TO ONLY CHANGE FEED SPEEDS WHEN THE MACHINE IS RUNNING. The Limiter: Acts as a stop to prevent the cutterhead from contacting the table and to prevent stock from sliding past the edge of the cutterhead.

  • Page 26: Unboxing & Placement

    THE DELIVERY DRIVER. IF YOU FIND ANY DAMAGED ITEMS IN YOUR PACKAGE, YOU MUST CONTACT LAGUNA TOOLS TO FILE A COMPLAINT. IN ORDER TO RETURN DAMAGED GOODS UNDER THE LIMITED WARRANTY TO LAGUNA TOOLS, INC., YOU MUST HAVE THE ORIGINAL PACKAGING. ALL CLAIMS OF LOSS OR DAMAGED GOODS MUST BE REPORTED TO LAGUNA TOOLS WITHIN 24 HOURS OF DELIVERY.
  • Page 27 All manuals and user guides at all-guides.com General Information lifted with a harness and forklift. Remove and save hooks for later movement scenarios.

  • Page 28: Tool Inventory List

    All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER Tool Inventory List Tool Inventory List: The following depicts items shipped with your machine. Before assembling, ensure that you have received all parts shown below. Machine parts should arrive sealed in plastic bags. Remove parts from plastic bags before laying them out to inventory them.
  • Page 29 All manuals and user guides at all-guides.com General Information • 1/2” Wrench · 5mm Hex Wrench. • Gauge Block (Step .378IN/.393IN x .75IN (19mm) x 2.375IN (60.32mm). FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL THE MACHINE IS COMPLETELY ASSEMBLED! PLEASE ALSO MAKE SURE THAT YOU READ AND UNDERSTAND THE ENTIRE MANUAL.

  • Page 30: Machine Set-Up

    All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER Machine Set-Up Setup Overview: When setting up your PX-22 Shear-Tec: II Planer, please take a moment to read this overview prior to starting. The machine comes mostly assembled. You will have to assemble the leveling feet, the dust chute, and calibrate the height.

  • Page 31: Assembly

    All manuals and user guides at all-guides.com Machine Set-Up Assembly Machine Preparation and Setup: 1.) Level machine using the four leveling feet on each of the four corners. Lock leveling feet into position with the nut on the leveling foot stud.

  • Page 32: Installing Optional Universal Castors

    All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER Installing Optional Universal Castors 1.) Raise and block planer for attaching caster set. 2.) Assemble swivel caster into swivel caster bracket (straight bracket) by placing bolt #5 through bracket and caster and securing with lock nut #4.

  • Page 33: Calibrating The Thickness Scale

    All manuals and user guides at all-guides.com Calibrating the Thickness Scale Calibrating the Thickness Scale NOTICE! The following procedures describe the use of a “Calibrating Board.” It is a piece of hardwood which has been surfaced on one side with a jointer, drum sander or wide belt sander. With the Planer “OFF”...
  • Page 34 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER...

  • Page 35: Calibrating The Dro (Digital Read Out)

    All manuals and user guides at all-guides.com Calibrating the DRO (Digital Read Out) Calibrating the DRO (Digital Read Out) 1.) Remove the battery cover of the DRO and install (2) AAA batteries. DRO Button Reference and Use It is helpful to familiarize these buttons and their purpose with the Wixey™ DRO.
  • Page 36 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER...

  • Page 37: Operation

    All manuals and user guides at all-guides.com Operation Operation CAUTION! PLACE THE PLANER ON A “SECURE AND STABLE SURFACE” FOR OPERATION.“CLAMP OR BOLT” THE PLANER INTO POSITION. 1.) Establish the proper depth of cut (Equal to or less than 1/16”), using either the DRO (Digital Read Out) or Scale.
  • Page 38 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER BACK TOGETHER. • PLANE WITH THE DIRECTION OF GRAIN TO REDUCE TEAR-OUT AND PROVIDE THE BEST SURFACE FINISH.

  • Page 39: Maintenance

    All manuals and user guides at all-guides.com Maintenance Maintenance CAUTION! FAILURE TO MAINTAIN THIS MACHINE USING REQUIRED ROUTINE UPKEEP, SAFEGUARDING & PREVENTIVE MEASURES WILL VOID WARRANTY. General Keep your machine clean. At the end of each day, clean the machine. Wood contains moisture, and if sawdust or wood chips are not removed they will cause rust.

  • Page 40: Shear-Tec Ii Knife Rotation/Replacement

    All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER Shear-Tec II Knife Rotation/Replacement CAUTION! KNIFE INSERTS ARE DANGEROUSLY SHARP. USE EXTREME CAUTION WHEN INSPECTING, REMOVING, OR REPLACING KNIFE INSERTS. WARNING! • TURN PLANER OFF AND DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE OR ADJUSTMENTS! •...
  • Page 41 All manuals and user guides at all-guides.com Maintenance so you can keep track of the rotation. Torque each screw to 52-60 in/lbs. or 231-267 Newtons. IMPORTANT! When removing or rotating inserts, clean sawdust from the screw, the insert, and the cutterhead platform (***Failure to this procedure or protocol will result in a stripped screw.***).

  • Page 42: Front/Rear Precision Adjustment

    All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER Front/Rear Precision Adjustment...
  • Page 43 All manuals and user guides at all-guides.com Maintenance...
  • Page 44 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER...
  • Page 45 All manuals and user guides at all-guides.com Maintenance...
  • Page 46 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER...
  • Page 47 All manuals and user guides at all-guides.com Maintenance...
  • Page 48 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER...
  • Page 49 All manuals and user guides at all-guides.com Maintenance...
  • Page 50 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER...
  • Page 51 All manuals and user guides at all-guides.com Maintenance...
  • Page 52 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER...
  • Page 53 All manuals and user guides at all-guides.com Maintenance...
  • Page 54 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER...

  • Page 55: Poly V Belt Adjustment

    All manuals and user guides at all-guides.com Maintenance Poly V Belt Adjustment WARNING! TURN PLANER OFF AND DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE OR ADJUSTMENTS! Poly-V-Belt (Fig. 1) tension has been set at the factory. If the belt has stretched and needs adjustment. 1.) Disconnect machine from power source.

  • Page 56: Lubrication

    All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER Lubrication Regular monitoring and replacement of lubrication is needed.
  • Page 57 All manuals and user guides at all-guides.com Maintenance...
  • Page 58 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER...
  • Page 59 All manuals and user guides at all-guides.com Maintenance The lubricant in the gear box must be drained and replaced every 2,500 hours. Multi-purpose gear box lubricant (#80 Weight Oil) will be suitable. To Replace the lubricant (Oil Drain Procedure): 1.) Remove the Lower Gear Box Oil Drain Plug (See A-Pt. #80). Drain dirty oil thoroughly. 2.) Re-insert and tighten the Lower Gear Box Oil Drain Plug (See A-Pt.
  • Page 60 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER The Gear Box Oil must be changed after 2500 hours of work (Instructions to remove Gear Box Oil Cover is as follows).
  • Page 61 All manuals and user guides at all-guides.com Maintenance (Instructions on how to remove Gear Box Oil Cover & change Inner Gears is as follows-Cont’d.) Tools to Use- M6 Wrench. 1.) Safety-Shut Down all Power to PX-22 Planer, Pull Electrical Plug from Outlet. 2.) Remove the Right-Side Cover (Pt.# 172) of the Machine.
  • Page 62 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER • Lubricate the four lead screws regularly. • Teflon Lube is the preferred lubrication for the lead screws.

  • Page 63: Troubleshooting

    All manuals and user guides at all-guides.com Maintenance Troubleshooting...

  • Page 64: Wiring

    All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER Wiring WARNING! REVIEW ELECTRICAL SAFETY (Pg’s.#6-16) PRIOR TO ANY WIRING PROCEDURES.
  • Page 65 All manuals and user guides at all-guides.com Wiring...
  • Page 66 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER...

  • Page 67: Replacement

    All manuals and user guides at all-guides.com Replacement Replacement...
  • Page 68 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER...
  • Page 69 All manuals and user guides at all-guides.com Replacement...

  • Page 70: Replacement Parts Table

    All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER Replacement Parts Table...
  • Page 71 All manuals and user guides at all-guides.com Replacement...
  • Page 72 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER...
  • Page 73 All manuals and user guides at all-guides.com Replacement...
  • Page 74 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER...
  • Page 75 All manuals and user guides at all-guides.com Replacement...
  • Page 76 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER...
  • Page 77 All manuals and user guides at all-guides.com Replacement...
  • Page 78 All manuals and user guides at all-guides.com PX-22 SHEARTEC II PLANER...
  • Page 79 All manuals and user guides at all-guides.com Replacement...

  • Page 80: Dealer Machinery Warranty

    We will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. We require that the defective item/part be returned to Laguna Tools with the complaint. An RMA (return merchandise authorization) must be requested, from Laguna Tools, and included with all parts or machines returned to Laguna Tools for warranty consideration.
  • Page 81 All manuals and user guides at all-guides.com Dealer Machinery Warranty...

  • Page 82: Customer Service Contact Information

    For immediate service on any Laguna Tools products: +1 (800) 234-1976 customerservice@lagunatools.com Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved. 12/01/2021 LAGUNA AMERICAN HEADQUARTERS Texas: 744 Refuge Way Suite 200, Grand Prairie, Texas 75050, U.S.A.
  • Page 83 All manuals and user guides at all-guides.com LAGUNA AMERICAN HEADQUARTERS Texas: 744 Refuge Way Suite 200, Grand Prairie, Texas 75050, U.S.A. Phone: +1-800-332-4094 Huntington Beach: 7291 Heil Ave Huntington Beach, CA 92647, U.S.A. Phone: +1-949-474-1200 South Carolina: 825 Bistline Dr. Ste 101, West Columbia, SC 29172, U.S.A. Phone: +1-800-234-1976 Minnesota: 5250 West 74th St, Edina, MN 55439, U.S.A Phone: +1-949-474-1200 LAGUNA EUROPE Walker Rd, Bardon Hill, Coalville LE67 1TU, United Kingdom.
