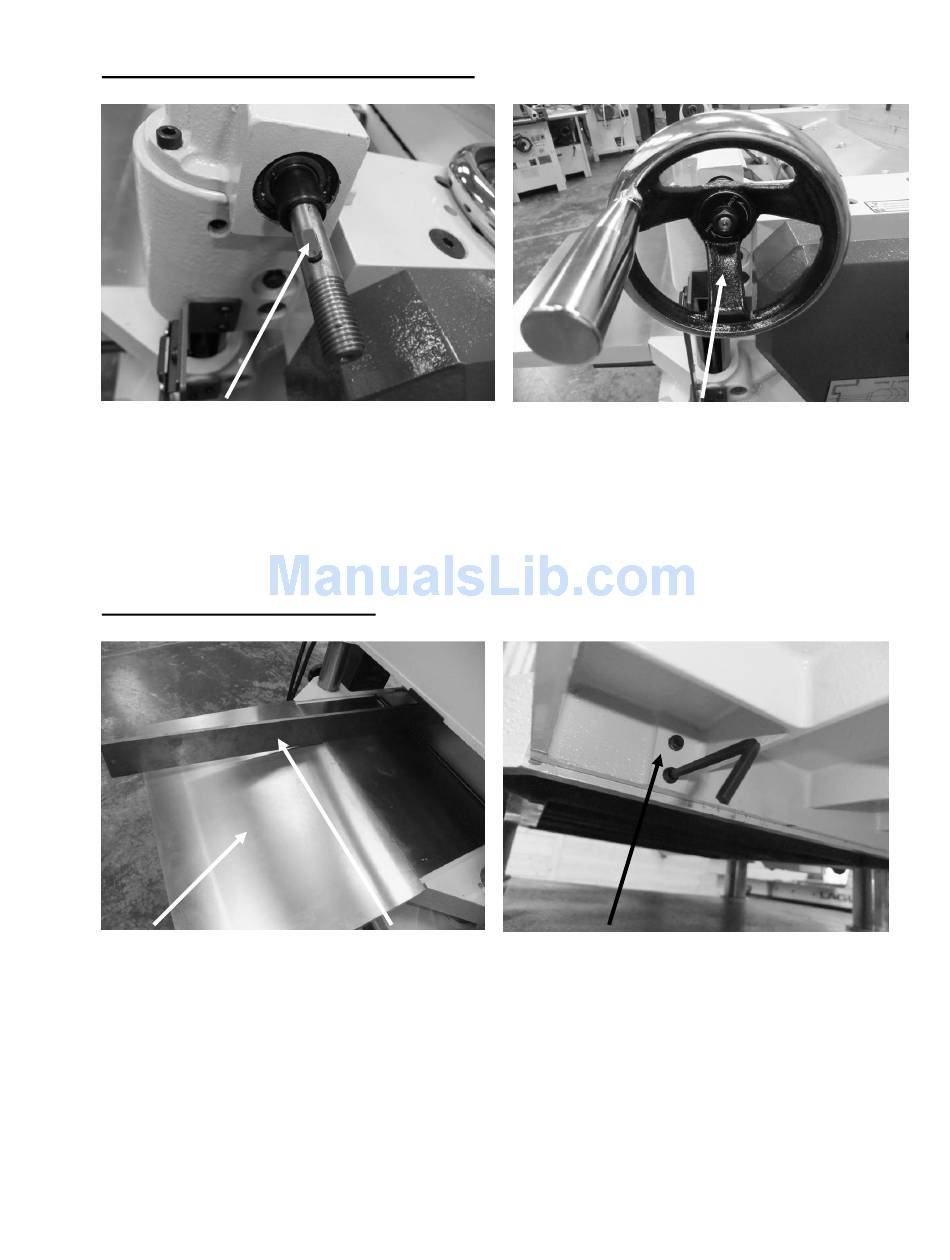

Fitting the vertical adjustment handle.
Key
Handle
1. Clean the shaft and the key.
2. Slide the handle onto the shaft. Ensure that the key lines up with the key way in
the handle, and that the key is bottomed out in the shaft slot. You may have to
gently tap the handle, as the key may be a tight fit.
3. Fit the washer and nut as shown.
Fitting the extension tables.
Extension table Straight edge
Fixing and jacking screws
There are two extension tables, one on either side of the machine.
The tables are attached to the main table with fixing screws, and jacked level with
the main table by allen set screws.
1. Attach the extension tables to the main table with the fixing bolts.
2. Place a straight edge on both the main table, and one of the extension tables.
13
