Summary of Contents for Inter-m RM-05A
- Page 1 Remote Amp With Zone Selector RM-05A...

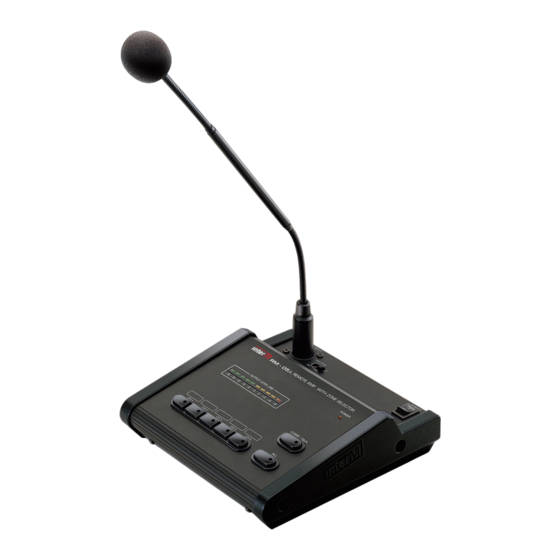

- Page 2 Remote Amp With Zone Selector RM-05 VERVIEW RM-05A is Remote Control Amplifier exclusively for PAM-Series. With the Select Button for five regions, it can broadcast selectively. It outputs Chime when broadcasting microphone. When not wanted, Chime can be simply removed and high quality broadcasting is available through high sensitivity condenser microphone.
-
Page 3: Front Panel
Remote Amp With Zone Selector RONT PANEL MIC INPUT JACK POWER LED LEVEL CONTROL CHIME/TALK SWITCH LED Turn clockwise to increase and counter clockwise to Indicates when the chime talk switch is pressed. -
Page 4: Rear Panel
Remote Amp With Zone Selector EAR PANEL REMOTE CONNECTION CABLE CONNECTOR Used to connect the RM-05A to the host amplifier PAM-240A/360A, PCT-610/620. ※Refer to pin number as below Pin 1 Remote amplifier input signal hot (+) Pin 2... -
Page 5: Specifications
Remote Amp With Zone Selector PECIFICATIONS RM-05A Output Level/Impedance 1V±200mV(VR max/600Ω, BAL) MIC Input Sensitivity/Impedance 0.8mV±0.3mV/600Ω, BAL Frequency Response 120Hz~18kHz, ±3dB Less than 0.7% Better than 55dB Speaker Control Terminal & Switch Power Source DC 24V Weight (Set) 800g (EXCEPT MICROPHONE) Dimensions (Set) 194(W)×60(H)×205(D)mm... - Page 6 Memo...
- Page 7 Memo...
- Page 8 Inter-M Corp. (IMK) 719, Dobong-ro, Dobong-gu, Seoul, Korea Overseas Sales Team Tel_ +82-2-2289-8141~7 Fax_ +82-2-2289-8149 E-mail_ overseas@inter-m.com www.inter-m.com ※ Design and specification are subject to be changed for the improvement of product quality without pre notice. 2015. 6. V1...
