Summary of Contents for Inter-m RM-05A

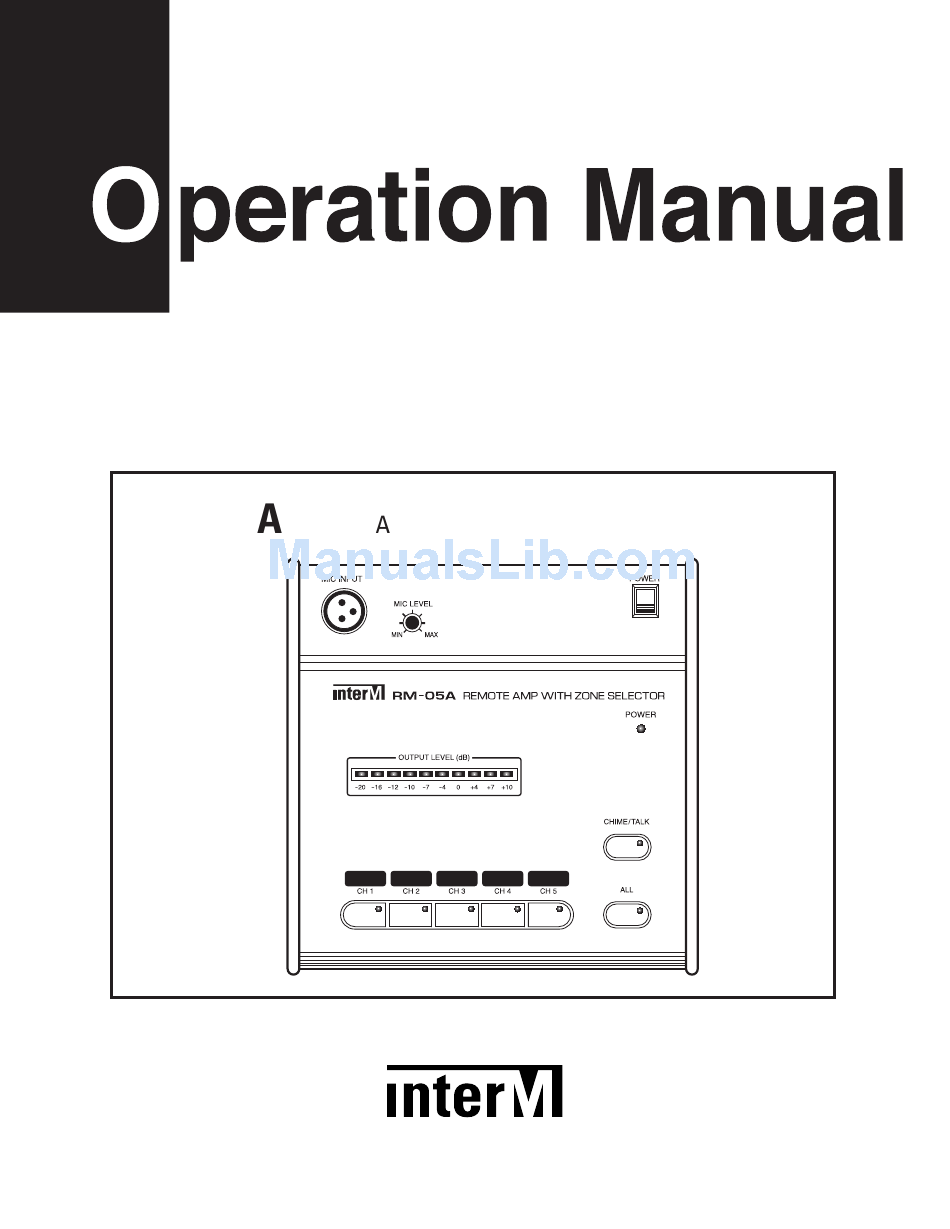

- Page 1 RM-05 Remote mp with Zone Selector...
-
Page 2: Table Of Contents
Contents Contents Welcome Warning............................1 Installation Environment............................2 Important Safety Instructions......................2 Features ............................3 Accessories.............................3 Operating Procedure ........................3 Front Panel ............................4 Rear Panel ............................6 Applications ............................7 Block Diagram ..........................8 Specifications ..........................9 Service Procedures............................10 Schematic .............................10 Parts List ............................10 Variations and Options .......................10 Warranty ............................10... -
Page 3: Warning
A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products. -
Page 4: Installation
S3125A S3125A RM-05A... -
Page 5: Features
Highly sensitive condenser type Mic is used for clear broadcasting. - EXCLUSIVE USE FOR PAM-240A/360A, PCT-610/620 RM-05A is the dedicated remote control amplifier for PAM series, so it only can be used with PAM- 240A/360A, PCT-610/620. - MUTE FUNCTION FOR CHIME OUT Chime melody can be muted by simple operation. -
Page 6: Front Panel
Turn clockwise to increase and counter clockwise to decrease the microphone volume level. 3. POWER SWITCH Switches ON and OFF the microphone unit. 4. OUTPUT LEVEL METER Indicates the signal output level between –20dB and +10dB. 5. ZONE/CHANNEL LED INDICATOR Visual indication of the selected channel. RM-05A... - Page 7 CHIME OFF CHIME ON CHIME OFF CHIME ON JUMPER1 JUMPER1 CHIME ON CHIME OFF 10. ALL ZONE LED INDICATOR Visual indication that all channels have been selected for broadcast. 11. ALL ZONE SELECTION SWITCH Selects all channels for broadcast. RM-05A...
-
Page 8: Rear Panel
Rear Panel 1. REMOTE CONNECTION CABLE CONNECTOR Used to connect the RM-05A to the host amplifier PAM-240A/360A, PCT-610/620. * Refer to pin number as below You can use conveniently Remote Control (Speaker zone can be selected and chime can be operated) -
Page 9: Applications
REMOTE AMP WITH ZONE SELECTOR Applications Applications RM-05A... -
Page 10: Block Diagram
REMOTE AMP WITH ZONE SELECTOR Block Diagram Block Diagram MIC IN LEVEL TALK LEVEL CHIME POWER S/W DC 24V IN +18V REMOTE COM SW1~SW5 RM-05A... -
Page 11: Specifications
Impedance...........................Max 680Ω Sensitivity (0dB=1V/0/.1Pa at 1kHz) ............-45dB±4dB(0dB=1V/0.1Pa at 1kHz) Sensitivity Reduction......................Within -3dB at 1.0V Current Consumption ........................Max 0.5mA S/N Ratio ..........................More than 55dB Standard Power Supply........................DC 1.5V Weight Goose Neck........................97g±10/0.2lb * Specifications and design subject to change without notice. RM-05A... -
Page 12: Service
To obtain specific warranty information and available service locations contact Inter-M directly(in Korea or the USA) or the authorized Inter-M Distributor for your specific country or region. - Page 13 NOTE...
- Page 14 NOTE...
- Page 15 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
