Page 1: Operation Manual

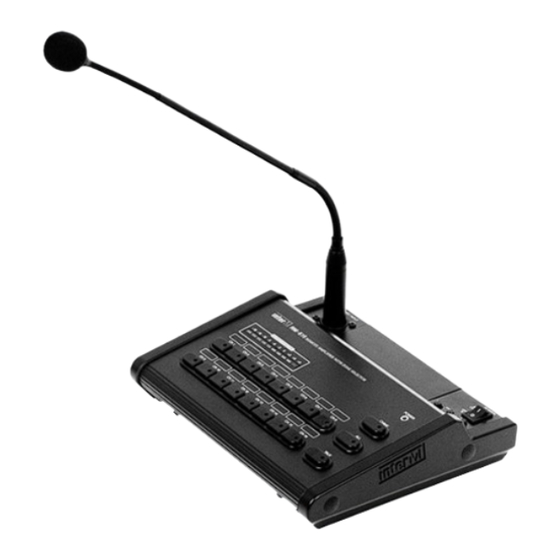

Operation Manual Remote Amplifier with Zone Selector RM-616 * Rack mount products in the Western Hemisphere(North America, South America, and the Caribbean) do not have handles installed due to customer preference. - Page 2 A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
Contents Contents Unpacking ..........................2 Installation Environment..........................2 Important Safety Instructions ....................2 Features ..........................3 Operation ..........................3 Front Panel ..........................4 Suggestions for Rack Installation ..................7 Applications ..........................8 Block Diagram ........................9 Specifications ........................10 Service Procedures .........................11 Schematic ...........................11 Parts List ..........................11 Warranty ..........................11 RM-616... -
Page 4: Unpacking
REMOTE AMPLIFIER with ZONE SELECTOR Unpacking Unpacking Although your RM-616 is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. -
Page 5: Features
- MIC BROADCASTING Easy to use, highly sensitive condenser type MIC for clear broadcasting. - AUXILIARY SIGNAL INPUT Auxiliary signal input for cassette deck or tuner makes the RM-616 an ideal remote piece of equipment for broadcasting background music. Operation Operation 1. -
Page 6: Front Panel
Switches ON/OFF the 24V DC power source. 6. AUX VOLUME Turn to the right to increase the volume and to the left to decrease the volume. 7. CHIME VOLUME Turn to the right to increase the volume and to the left to decrease the volume. RM-616... - Page 7 13. ALL CALL SWITCH This switch, when pressed ON, selects all the sixteen loudspeaker zones for the broadcast. 14. TALK LED Visual indication of the TALK ON switch. 15. TALK SWITCH The TALK ON switch activates for the MIC (LED ON). RM-616...
- Page 8 REMOTE AMPLIFIER with ZONE SELECTOR 1. Connector Section 1. SPEAKER CONTROL & COM TERMINALS Connect these speaker control line terminals to the Remote 1 or Remote 2 inputs of the Inter-M ECS- 616 matrix unit. 2. 24V DC POWER INPUT TERMINALS Connect the 24V DC output of the Inter-M power distributor PD-659 to these terminals.
-
Page 9: Suggestions For Rack Installation
2. Site the equipment in well ventilated places and avoid places of high humidity. 3. Whenever possible, fit Inter-M MIC model CM-916. If a Phantom powered MIC is to be used, we recommend that it operates on +5V DC. -
Page 10: Applications
REMOTE AMPLIFIER with ZONE SELECTOR Applications Applications ※ The shape of outlets can be different according to country requirements. RM-616... -
Page 11: Block Diagram
REMOTE AMPLIFIER with ZONE SELECTOR Block Diagram Block Diagram RM-616... -
Page 12: Specifications
REMOTE AMPLIFIER with ZONE SELECTOR Specifications Specifications RM-616 1.2V ±200mV, BAL Output Level -60dB/600Ω, BAL Input Sensitivity/Impedance -20dB/10kΩ, UNBAL 100Hz ~ 15kHz Frequency Response (±3dB) 80Hz ~ 18kHz Less than 0.5% T.H.D Less than 0.3% Batter than 47dB Batter than 50dB Speaker Control Terminal &... -
Page 13: Service
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. - Page 14 NOTE...
- Page 15 NOTE PX-0288...
- Page 16 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
