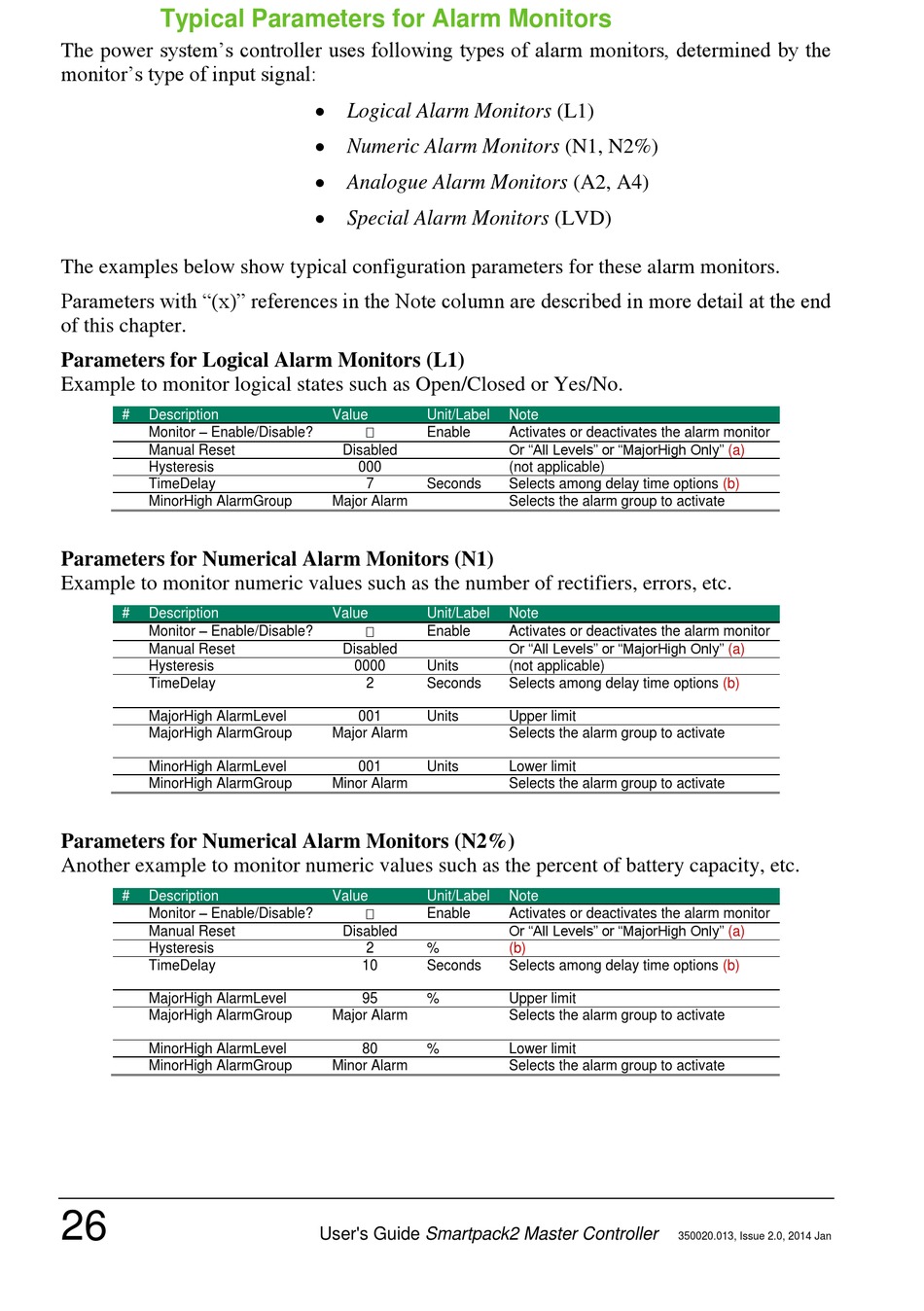

Typical Parameters for Alarm Monitors

The power system's controller uses following types of alarm monitors, determined by the
monitor's type of input signal:
The examples below show typical configuration parameters for these alarm monitors.
Parameters with "(x)" references in the Note column are described in more detail at the end
of this chapter.
Parameters for Logical Alarm Monitors (L1)
Example to monitor logical states such as Open/Closed or Yes/No.
# Description
Monitor – Enable/Disable?
Manual Reset
Hysteresis
TimeDelay
MinorHigh AlarmGroup
Parameters for Numerical Alarm Monitors (N1)
Example to monitor numeric values such as the number of rectifiers, errors, etc.
# Description
Monitor – Enable/Disable?
Manual Reset
Hysteresis
TimeDelay
MajorHigh AlarmLevel
MajorHigh AlarmGroup
MinorHigh AlarmLevel
MinorHigh AlarmGroup
Parameters for Numerical Alarm Monitors (N2%)
Another example to monitor numeric values such as the percent of battery capacity, etc.
# Description
Monitor – Enable/Disable?
Manual Reset
Hysteresis
TimeDelay
MajorHigh AlarmLevel
MajorHigh AlarmGroup
MinorHigh AlarmLevel
MinorHigh AlarmGroup
26
 Logical Alarm Monitors (L1)
 Numeric Alarm Monitors (N1, N2%)
 Analogue Alarm Monitors (A2, A4)
 Special Alarm Monitors (LVD)
Value Unit/Label
Enable
Disabled
000
7 Seconds
Major Alarm
Value Unit/Label
Enable
Disabled
0000 Units
2 Seconds
001 Units
Major Alarm
001 Units
Minor Alarm
Value Unit/Label
Enable
Disabled
2 %
10 Seconds
95 %
Major Alarm
80 %
Minor Alarm
User's Guide Smartpack2 Master Controller
Note
Activates or deactivates the alarm monitor
Or "All Levels" or "MajorHigh Only"
(not applicable)
Selects among delay time options
Selects the alarm group to activate
Note
Activates or deactivates the alarm monitor
Or "All Levels" or "MajorHigh Only"
(not applicable)
Selects among delay time options
Upper limit
Selects the alarm group to activate
Lower limit
Selects the alarm group to activate
Note
Activates or deactivates the alarm monitor
Or "All Levels" or "MajorHigh Only"
(b)
Selects among delay time options
Upper limit
Selects the alarm group to activate
Lower limit
Selects the alarm group to activate
350020.013, Issue 2.0, 2014 Jan
(a)
(b)
(a)
(b)
(a)
(b)
