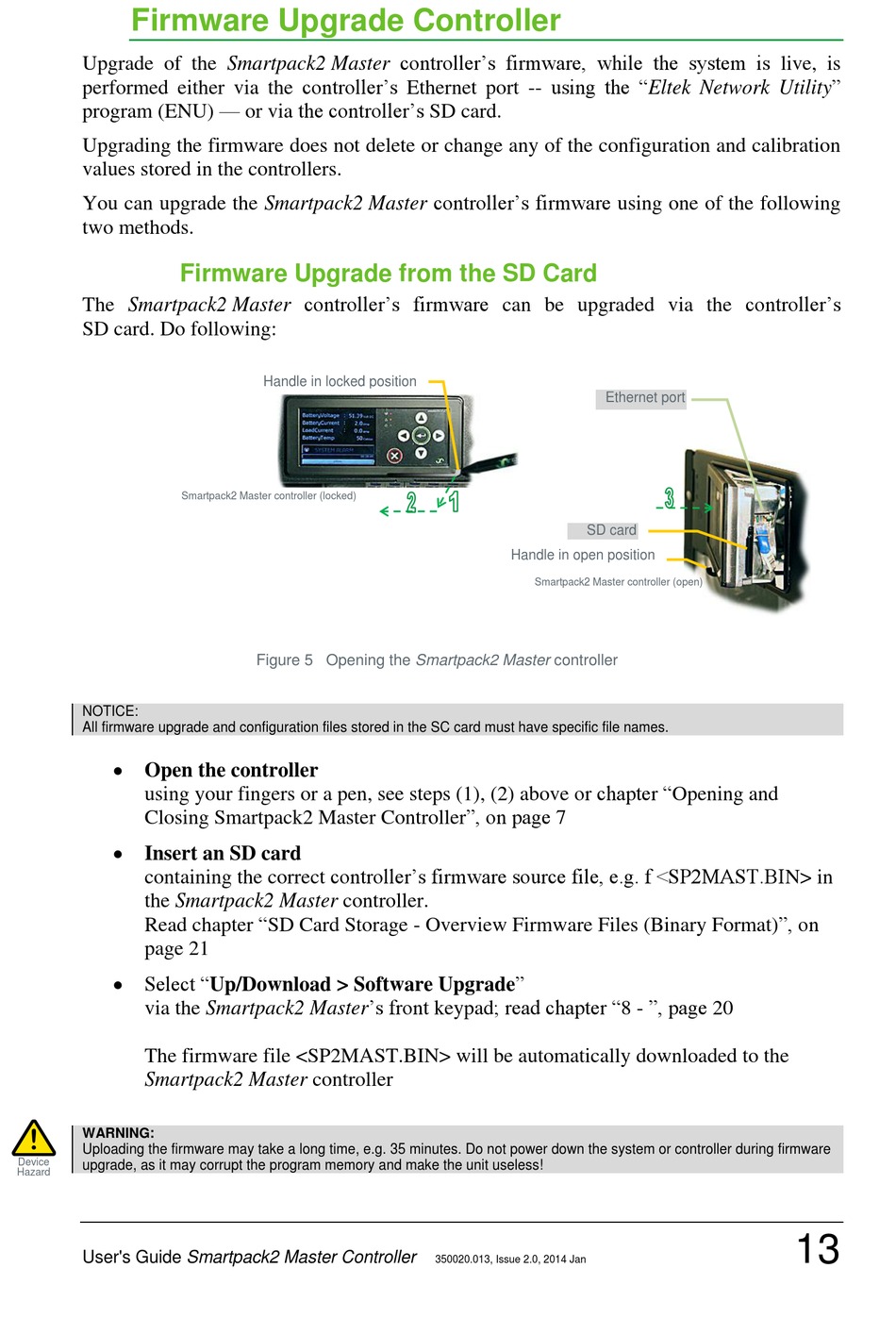

Firmware Upgrade Controller

Upgrade of the Smartpack2 Master controller's firmware, while the system is live, is
performed either via the controller's Ethernet port -- using the "Eltek Network Utility"
program (ENU) — or via the controller's SD card.
Upgrading the firmware does not delete or change any of the configuration and calibration
values stored in the controllers.
You can upgrade the Smartpack2 Master controller's firmware using one of the following
two methods.

Firmware Upgrade from the SD Card

The Smartpack2 Master controller's firmware can be upgraded via the controller's
SD card. Do following:
Smartpack2 Master controller (locked)
NOTICE:
All firmware upgrade and configuration files stored in the SC card must have specific file names.
 Open the controller
using your fingers or a pen, see steps (1), (2) above or chapter "Opening and
Closing Smartpack2 Master Controller", on page 7
 Insert an SD card
containing the correct controller's firmware source file, e.g. f <SP2MAST.BIN> in
the Smartpack2 Master controller.
Read chapter "SD Card Storage - Overview Firmware Files (Binary Format)", on
page 21
 Select "Up/Download > Software Upgrade"
via the Smartpack2 Master's front keypad; read chapter "8 - ", page 20
The firmware file <SP2MAST.BIN> will be automatically downloaded to the
Smartpack2 Master controller
!
WARNING:
Uploading the firmware may take a long time, e.g. 35 minutes. Do not power down the system or controller during firmware
Device
upgrade, as it may corrupt the program memory and make the unit useless!
Hazard
User's Guide Smartpack2 Master Controller
Handle in locked position
Figure 5 Opening the Smartpack2 Master controller
2 The Smartpack2 Master Controller
Ethernet port
SD card
Handle in open position
Smartpack2 Master controller (open)
350020.013, Issue 2.0, 2014 Jan
13
