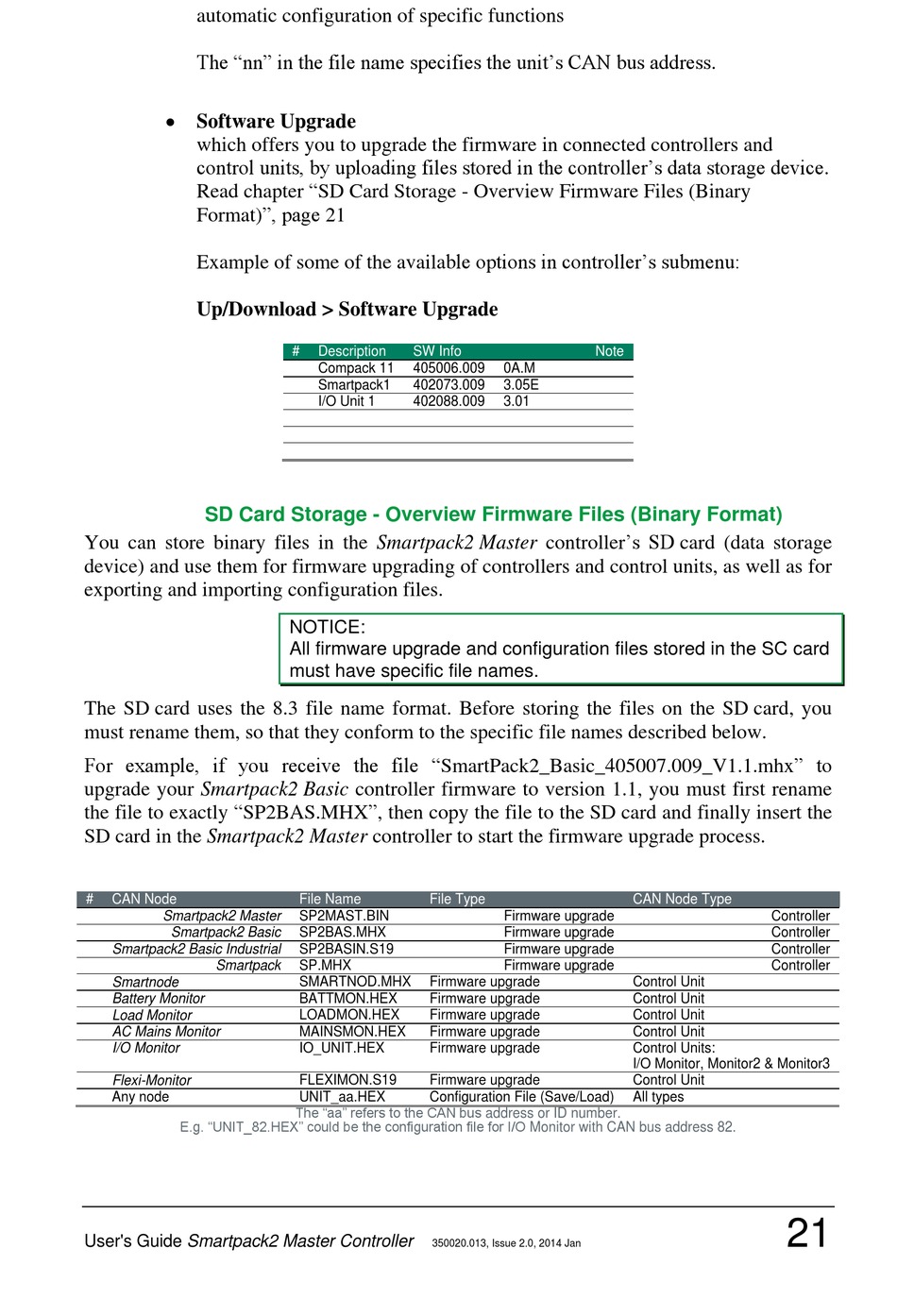

automatic configuration of specific functions
The "nn" in the file name specifies the unit's CAN bus address.
 Software Upgrade
which offers you to upgrade the firmware in connected controllers and
control units, by uploading files stored in the controller's data storage device.
Read chapter "SD Card Storage - Overview Firmware Files (Binary
Format)", page 21
Example of some of the available options in controller's submenu:
Up/Download > Software Upgrade

SD Card Storage - Overview Firmware Files (Binary Format)

You can store binary files in the Smartpack2 Master controller's SD card (data storage
device) and use them for firmware upgrading of controllers and control units, as well as for
exporting and importing configuration files.
The SD card uses the 8.3 file name format. Before storing the files on the SD card, you
must rename them, so that they conform to the specific file names described below.
For example, if you receive the file "SmartPack2_Basic_405007.009_V1.1.mhx" to
upgrade your Smartpack2 Basic controller firmware to version 1.1, you must first rename
the file to exactly "SP2BAS.MHX", then copy the file to the SD card and finally insert the
SD card in the Smartpack2 Master controller to start the firmware upgrade process.
# CAN Node
Smartpack2 Master
Smartpack2 Basic
Smartpack2 Basic Industrial
Smartpack
Smartnode
Battery Monitor
Load Monitor
AC Mains Monitor
I/O Monitor
Flexi-Monitor
Any node
E.g. "UNIT_82.HEX" could be the configuration file for I/O Monitor with CAN bus address 82.
User's Guide Smartpack2 Master Controller
# Description SW Info
Compack 11 405006.009
Smartpack1 402073.009
I/O Unit 1 402088.009
NOTICE:
All firmware upgrade and configuration files stored in the SC card
must have specific file names.
File Name File Type
SP2MAST.BIN
SP2BAS.MHX
SP2BASIN.S19
SP.MHX
SMARTNOD.MHX Firmware upgrade
BATTMON.HEX Firmware upgrade
LOADMON.HEX Firmware upgrade
MAINSMON.HEX Firmware upgrade
IO_UNIT.HEX Firmware upgrade
FLEXIMON.S19 Firmware upgrade
UNIT_aa.HEX Configuration File (Save/Load)
The "aa" refers to the CAN bus address or ID number.
350020.013, Issue 2.0, 2014 Jan
3 About Power System Configuration
Note
0A.M
3.05E
3.01
CAN Node Type
Firmware upgrade
Firmware upgrade
Firmware upgrade
Firmware upgrade
Control Unit
Control Unit
Control Unit
Control Unit
Control Units:
I/O Monitor, Monitor2 & Monitor3
Control Unit
All types
Controller
Controller
Controller
Controller
