2 The Smartpack2 Master Controller

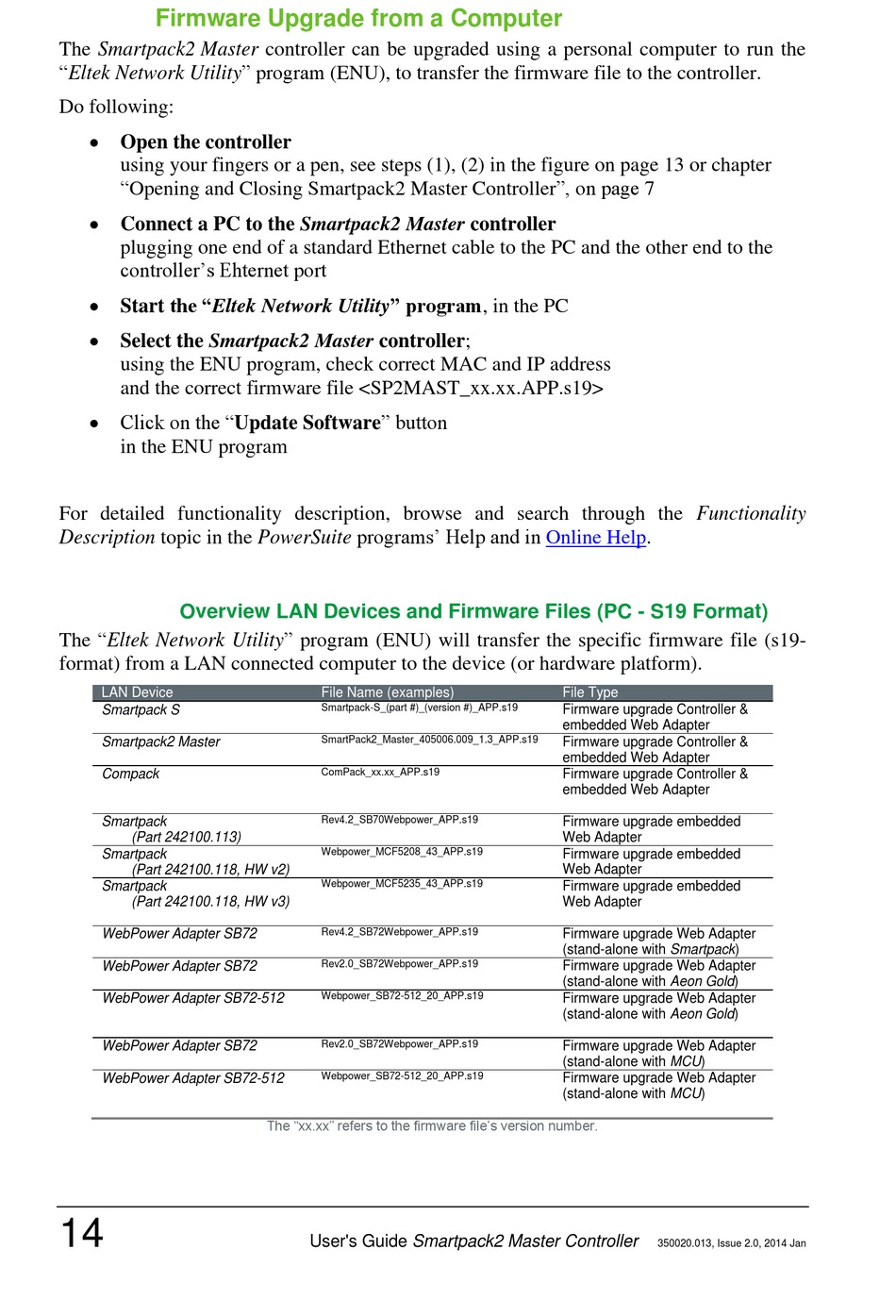

Firmware Upgrade from a Computer

The Smartpack2 Master controller can be upgraded using a personal computer to run the
"Eltek Network Utility" program (ENU), to transfer the firmware file to the controller.
Do following:
 Open the controller
using your fingers or a pen, see steps (1), (2) in the figure on page 13 or chapter
"Opening and Closing Smartpack2 Master Controller", on page 7
 Connect a PC to the Smartpack2 Master controller
plugging one end of a standard Ethernet cable to the PC and the other end to the
controller's Ehternet port
 Start the "Eltek Network Utility" program, in the PC
 Select the Smartpack2 Master controller;
using the ENU program, check correct MAC and IP address
and the correct firmware file <SP2MAST_xx.xx.APP.s19>
 Click on the "Update Software" button
in the ENU program
For detailed functionality description, browse and search through the Functionality
Description topic in the PowerSuite programs' Help and in

Overview LAN Devices and Firmware Files (PC - S19 Format)

The "Eltek Network Utility" program (ENU) will transfer the specific firmware file (s19-
format) from a LAN connected computer to the device (or hardware platform).
LAN Device
Smartpack S
Smartpack2 Master
Compack
Smartpack
(Part 242100.113)
Smartpack
(Part 242100.118, HW v2)
Smartpack
(Part 242100.118, HW v3)
WebPower Adapter SB72
WebPower Adapter SB72
WebPower Adapter SB72-512
WebPower Adapter SB72
WebPower Adapter SB72-512
14
File Name (examples)
Smartpack-S_(part #)_(version #)_APP.s19
SmartPack2_Master_405006.009_1.3_APP.s19
ComPack_xx.xx_APP.s19
Rev4.2_SB70Webpower_APP.s19
Webpower_MCF5208_43_APP.s19
Webpower_MCF5235_43_APP.s19
Rev4.2_SB72Webpower_APP.s19
Rev2.0_SB72Webpower_APP.s19
Webpower_SB72-512_20_APP.s19
Rev2.0_SB72Webpower_APP.s19
Webpower_SB72-512_20_APP.s19
The "xx.xx" refers to the firmware file's version number.
User's Guide Smartpack2 Master Controller
Online Help.
File Type
Firmware upgrade Controller &
embedded Web Adapter
Firmware upgrade Controller &
embedded Web Adapter
Firmware upgrade Controller &
embedded Web Adapter
Firmware upgrade embedded
Web Adapter
Firmware upgrade embedded
Web Adapter
Firmware upgrade embedded
Web Adapter
Firmware upgrade Web Adapter
(stand-alone with Smartpack)
Firmware upgrade Web Adapter
(stand-alone with Aeon Gold)
Firmware upgrade Web Adapter
(stand-alone with Aeon Gold)
Firmware upgrade Web Adapter
(stand-alone with MCU)
Firmware upgrade Web Adapter
(stand-alone with MCU)
350020.013, Issue 2.0, 2014 Jan
