2 The Smartpack2 Master Controller

Software Menus

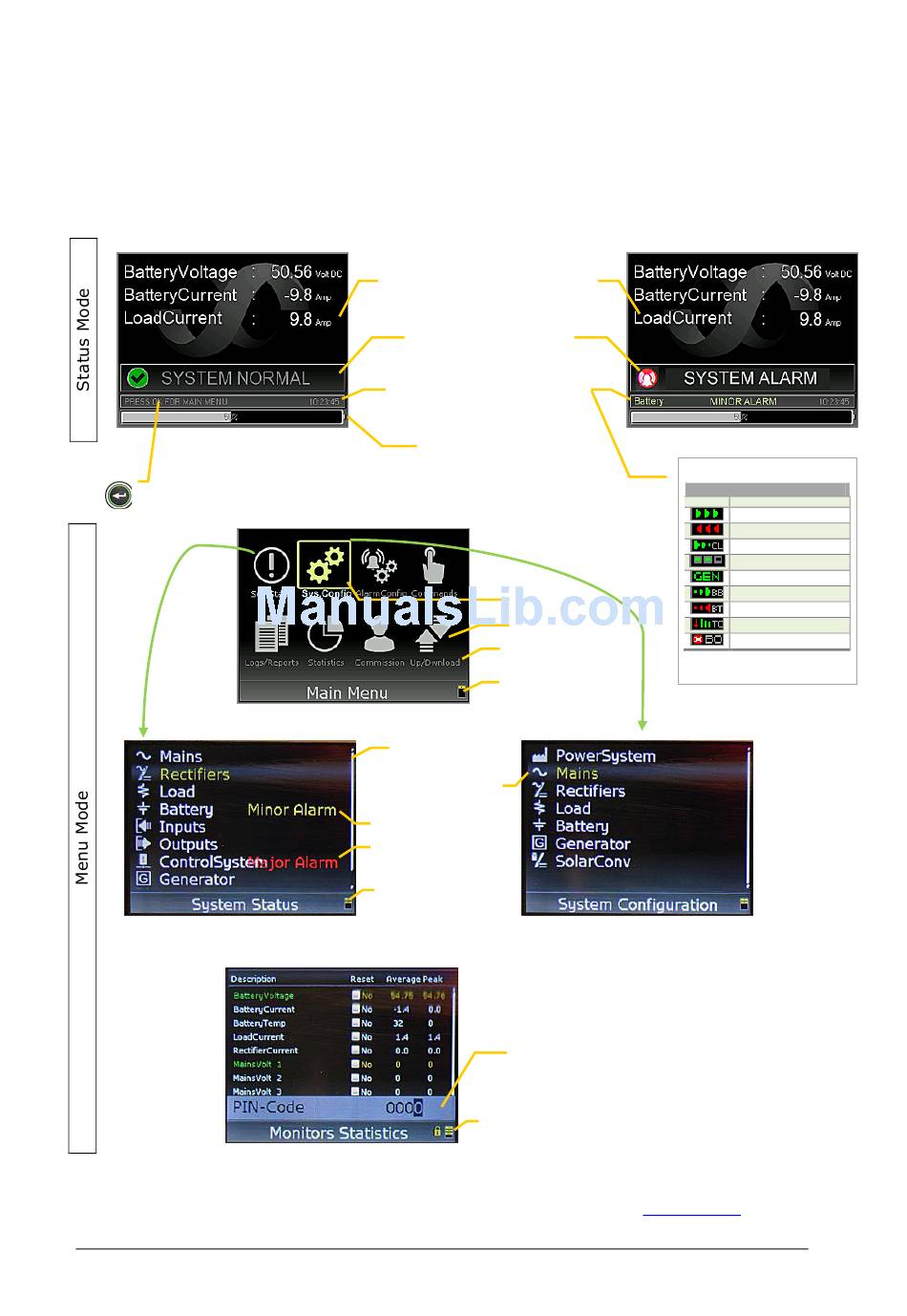

The Smartpack2-based system's functionality is accessed via a network of software menus
and submenus, enabling you to configure and control the whole power system from the
controller's front panel. When browsing the menus, the Menu Level Indicator shows the
menu level you are in. Editing parameters is password protected, (default pin code <0003>
may be changed for security reasons). The display can be in Status Mode or in Menu Mode.
System in Normal Mode
To change from Status Mode
to Menu Mode press on this
key:
Submenu "System Status" (Level 2)
From a PC's web browser, or running the PowerSuite program, you can also access the
complete system functionality, described in the programs' Help and in
10
Main Menu Options (Level 1)
Example Submenu "Monitors Statistics" (Level 3)
User's Guide Smartpack2 Master Controller
System Parameters
Display more with the → and ← arrow keys.
(Display area P)
System Status
Normal mode, Alarm mode, etc.
(Display area S)
System Messages
Animated icons, keys to press, alarms,
system time, etc
(Multi-Info field, Display area M)
Status Battery Bank
Displayed in % or in Ah
(Display area B)
Chosen option
Menu Icons
Menu Names
Menu Level Indicator
hierarchical menus (Level 1)
Scrollbar
Chosen option (yellow text)
Press "Enter" to display the
Mains submenu
Warning (minor alarm)
Alarm (major alarm)
Menu Level Indicator
hierarchical menus (Level 2)
Submenu "System Configuration" (Level 2)
Pin Code required for changing configured parameters
(use the ↑ or ↓ arrow keys to enter code).
Default pin code <0003> (should be changed for security reasons)
Menu Level Indicator
hierarchical menus (Level 3)
System in Alarm Mode
Animated System Messages (M)
in Normal Mode
Icon Enabled Function
none Float Batt. Charging
Battery Charging
Battery Discharging
Current Limitation
Efficiency Management
Generator running
Batt. Boost Charging
Battery Test
Temp. Compensated Ch.
Outputs Blocked
When no battery bank installed, the
icons are shown in Display area B
Online Help.
350020.013, Issue 2.0, 2014 Jan
