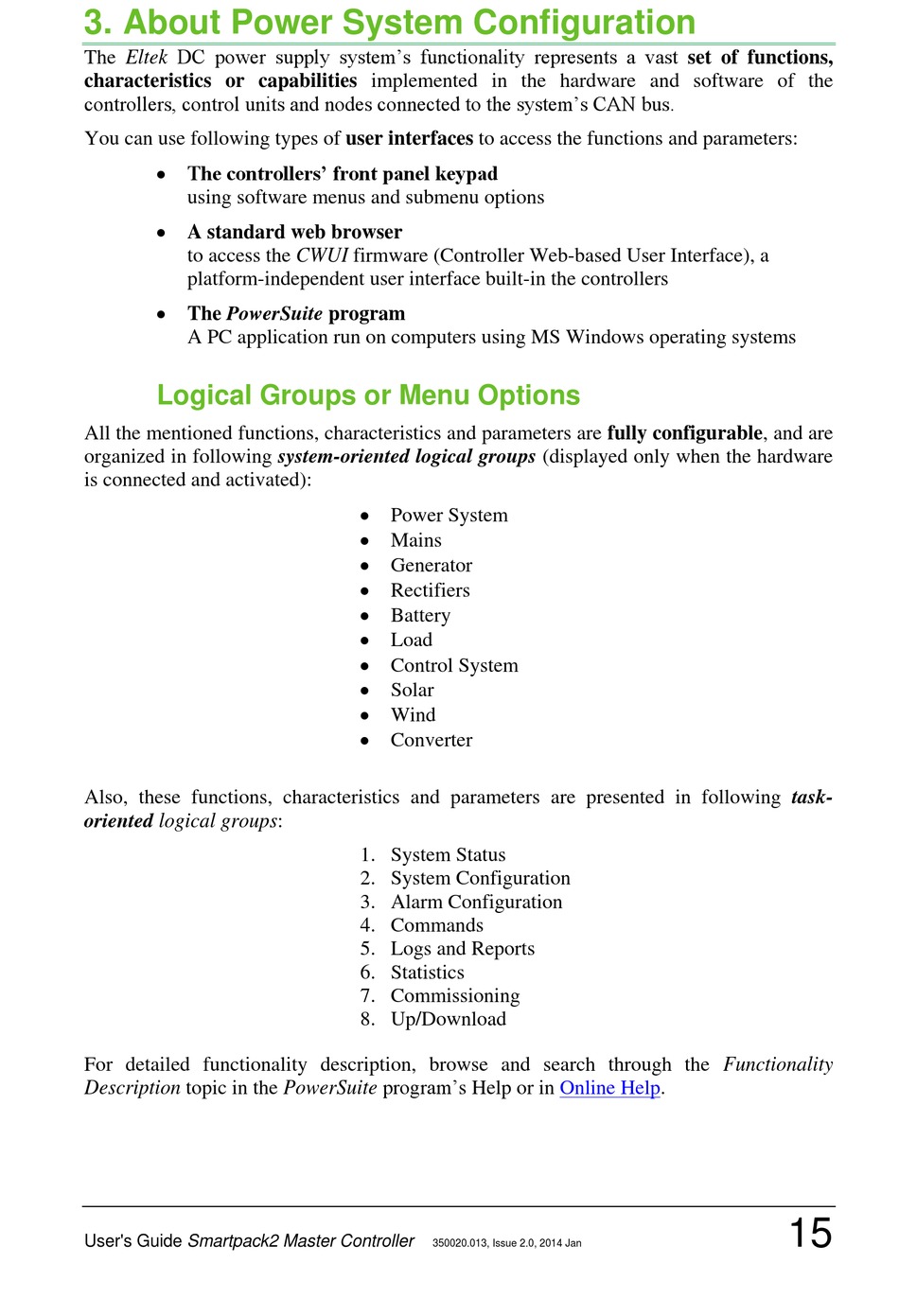

3. About Power System Configuration

The Eltek DC power supply system's functionality represents a vast set of functions,
characteristics or capabilities implemented in the hardware and software of the
controllers, control units and nodes connected to the system's CAN bus.
You can use following types of user interfaces to access the functions and parameters:
 The controllers' front panel keypad
using software menus and submenu options
 A standard web browser
to access the CWUI firmware (Controller Web-based User Interface), a
platform-independent user interface built-in the controllers
 The PowerSuite program
A PC application run on computers using MS Windows operating systems

Logical Groups or Menu Options

All the mentioned functions, characteristics and parameters are fully configurable, and are
organized in following system-oriented logical groups (displayed only when the hardware
is connected and activated):
Also, these functions, characteristics and parameters are presented in following task-
oriented logical groups:
For detailed functionality description, browse and search through the Functionality
Description topic in the PowerSuite program's Help or in
User's Guide Smartpack2 Master Controller
3 About Power System Configuration
 Power System
 Mains
 Generator
 Rectifiers
 Battery
 Load
 Control System
 Solar
 Wind
 Converter
1. System Status
2. System Configuration
3. Alarm Configuration
4. Commands
5. Logs and Reports
6. Statistics
7. Commissioning
8. Up/Download
350020.013, Issue 2.0, 2014 Jan
Online Help.
15
