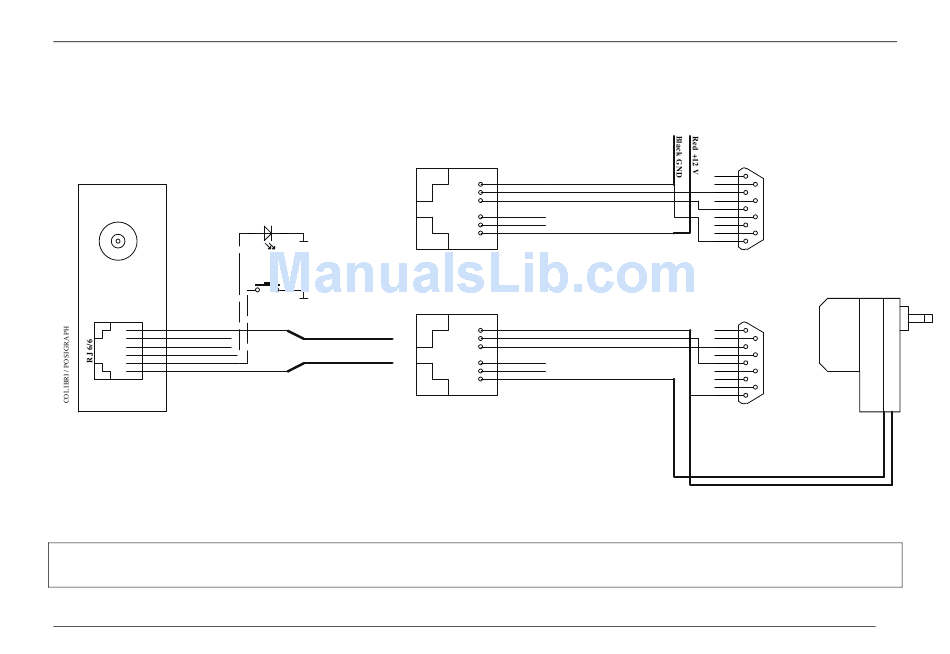

COLIBRI WIRING DIAGRAM
White GND
Black
Red
Green LED A
Yellow Event
Blue +12 V
If the unit has been installed in a non visible position, it may be helpful if a remote Event key and LED status indicator are added.
The unit has no internal fuse, accordingly it is mandatory to fit a 1A external fuse when connecting to the glider power supply, thus preventing any damage to the unit in case
of malfunction.
STATUS LED (Not wired!)
3 flashes/sec -> GPS BAD
1 flash/sec -> OK
GND
EVENT KEY (Not wired!)
GND
Black GND
Red + 12 V
RJ 6/6
White GND
Black Rx (DATA IN)
Red Tx (DATA OUT)
Blue +12 V
RJ 6/6
White GND
Black Rx (DATA IN)
Red Tx (DATA OUT)
Blue +12 V
Note!
21
Dec 2006
www.lxnavigation.si
SUBD 9 M ale
1
6
2
LX 5000 - via cross cable
7
3
IPAQ - via LX IPQ, Power and
8
4
Data adapter (Plug 'n' Play)
9
5
Wall Charger
SUBD 9 Female
1
6
2
7
PC
3
8
4
9
5
