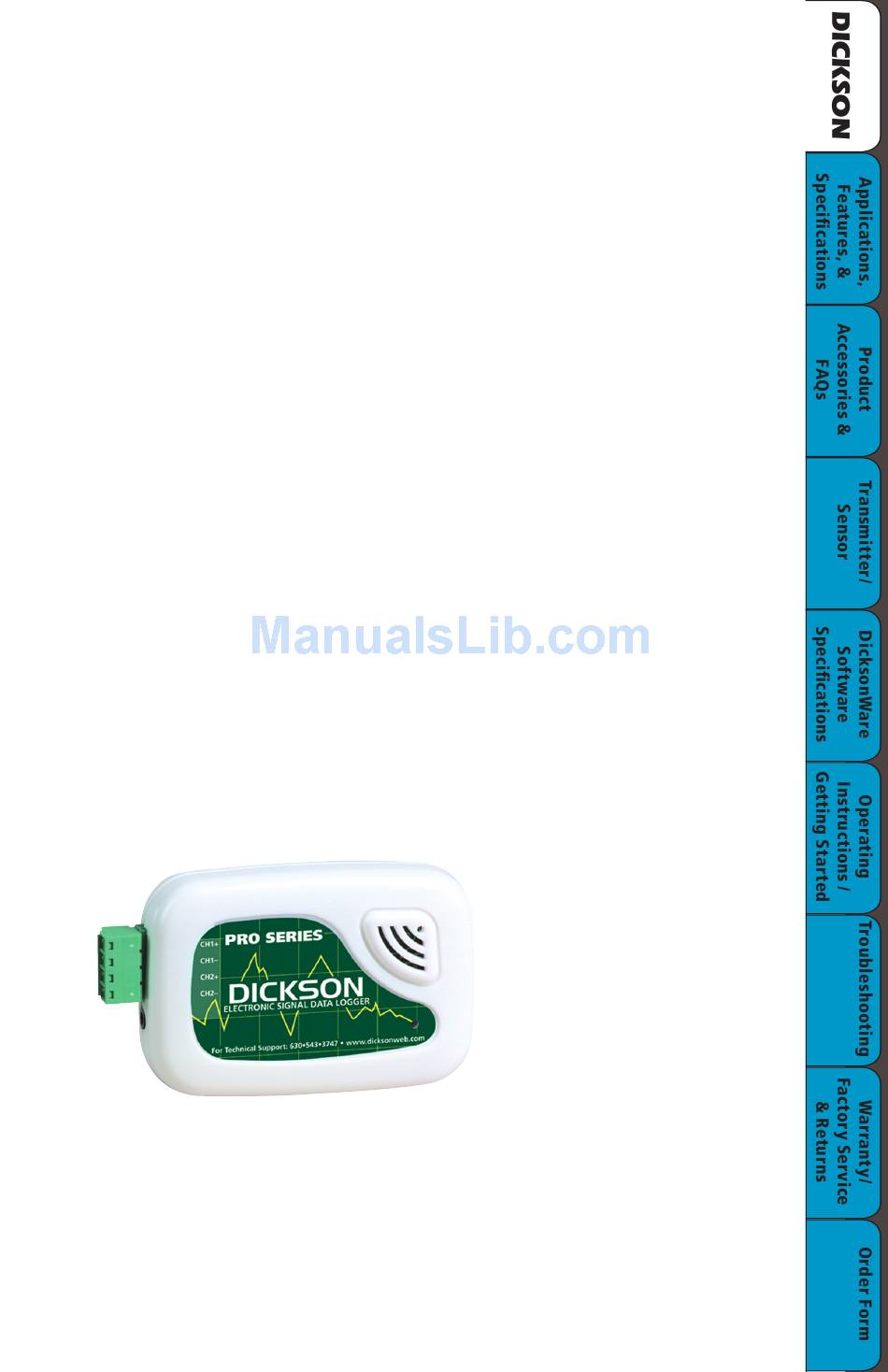

DICKSON
ES120/ES120A
Electronic Signal Data Logger
Contents:
Product Applications and Useful Features
Product Accessories
Operating Instructions / Getting Started
Warranty / Factory Service & Returns
Order Form
ES120
Rev. 02/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES120 and is the answer not in the manual?

Questions and answers

Related Manuals for Dickson ES120

Summary of Contents for Dickson ES120

  • Page 1: Table Of Contents

    DICKSON ES120/ES120A Electronic Signal Data Logger Contents: Product Applications and Useful Features Product Specifications Product Accessories Frequently Asked Questions Transmitter / Sensor DicksonWare Software Specifications Operating Instructions / Getting Started Troubleshooting Warranty / Factory Service & Returns Order Form ES120...

  • Page 2: Product Specifications

    Due to its small size and rugged design, the ES120 can be placed just about anywhere! The ES120 is ideal for researchers, building operators, test & equipment engineers and quality control personnel.

  • Page 3: Frequently Asked Questions

    Wrap mode, the Logger will begin to overwrite the oldest data in its memory. Where can I put them? Depending on the Dickson model, just about anywhere. We have waterproof units, stainless steel models, units with probes, and units that handle extreme temperatures. Our wide selection of instruments should fit about any application.

  • Page 4: Transmitter / Sensor

    Transmitter / Sensor A powered transmitter is required to operate the ES120/ES120A.Any powered transmitter with a 4-20mA, 0-20mA, 0-5Vdc, 1-5Vdc or 0 to 15v (ES120A) output signal may be used. To connect a transmitter to the logger, locate the terminal block on the side of the logger. Connect the positive wire of the transmitter to the positive terminal and the negative wire of the transmitter to the negative terminal of the appropriate channel.

  • Page 5: Dicksonware Software Specifications

    • Microsoft Windows® compatible • Allows for simple viewing and zooming of logged data • Easy set-up of Dickson Data Loggers including: • User selectable sample intervals from 10 seconds to 24 hours • Display temperature in °C or °F •...
  • Page 6 Temperature, Pressure or Flow. Following Setups Are For ES120 Models Only In the “User Defined” section, set the MIN and MAX input signal being supplied by your transmitter, units should show mA or V depending on what type of signal that channel is setup to receive.

  • Page 7: Troubleshooting

    Troubleshooting No Communication • Verify that you have the correct version of Dickson software installed on your PC. Version 6.0.2.1 or higher is required for model ES120. Version 6.0.3.10 or higher for model ES120A. • Verify that the correct COM port is selected: From the main DicksonWare™ screen, click on Logger then Communication, a black dot will appear next to the selected COM port.
  • Page 8 Dickson shall not be liable for consequential or incidental damages resulting from failure or malfunction of its products. Dickson makes no warranty for products not manufactured by it or for any products modified by buyer, or subject to misuse or neglect.
  • Page 9 Fax to: 1-800-676-0498 Mail to: Dickson, 930 S. Westwood Ave, Addison, IL 60101 Step 1 - Bill To: Name Company Address City State Phone ( – Email Step 2 - Ship To (if different than above) Name Company Address City...
