DBL Quick Start Guide
What's in the Box:

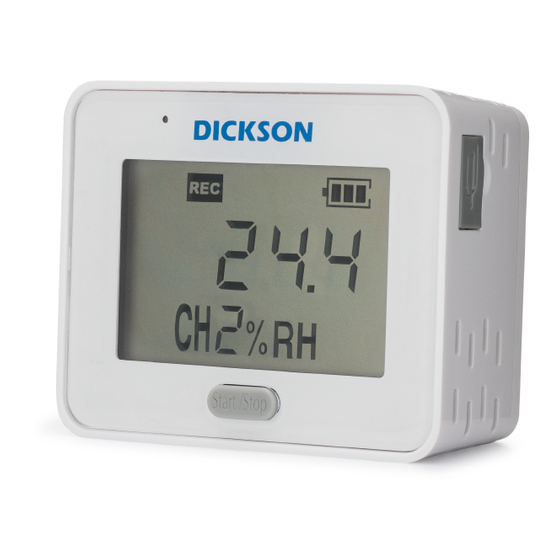

DBL Data Logger
Accessories (not included):
AC Adapter & Power Cable
Note:
D icksonWare Secure, which is 21CFR Part 11 compliant, sold separately
Navigating the Device
Visit : support.dicksonone.com
1 AA Lithium Battery
For additional support
Email : support@dicksonone.com
Mounting Bracket & Mounting
Hardware
1. Recent reading
2. Recording indicator
3. Temperature units (rotates between any
channels on the device)
4. Channel number; rotates between CH1
(temperature) and CH2 (relative Humidity, if
active)
5. Battery indicator
6. Alarm Icon (bell, not pictured)
7. Start/Stop button used to begin and pause data
logging
DicksonWare
(non-secure)
Call: 6 30.543.3747
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dickson DBL
Summary of Contents for Dickson DBL
- Page 1 DBL Quick Start Guide What’s in the Box: DBL Data Logger 1 AA Lithium Battery Mounting Bracket & Mounting DicksonWare Hardware (non-secure) Accessories (not included): AC Adapter & Power Cable ...
- Page 2 3. 4 static dashes along with a wrench icon will appear on the screen 4. To configure the DBL, using a USB cable, connect the device to a computer (with DicksonWare 2.0 software installed) Configuring Device Settings Using DicksonWare 2.0 ...
- Page 3 Alarm will sound for 1 minute until readings fall back within the set range. ○ If the DBL continues logging and the device remains in an alarm state after 1 minute then the device ○ will continue to beep twice every 5 minutes. ...
