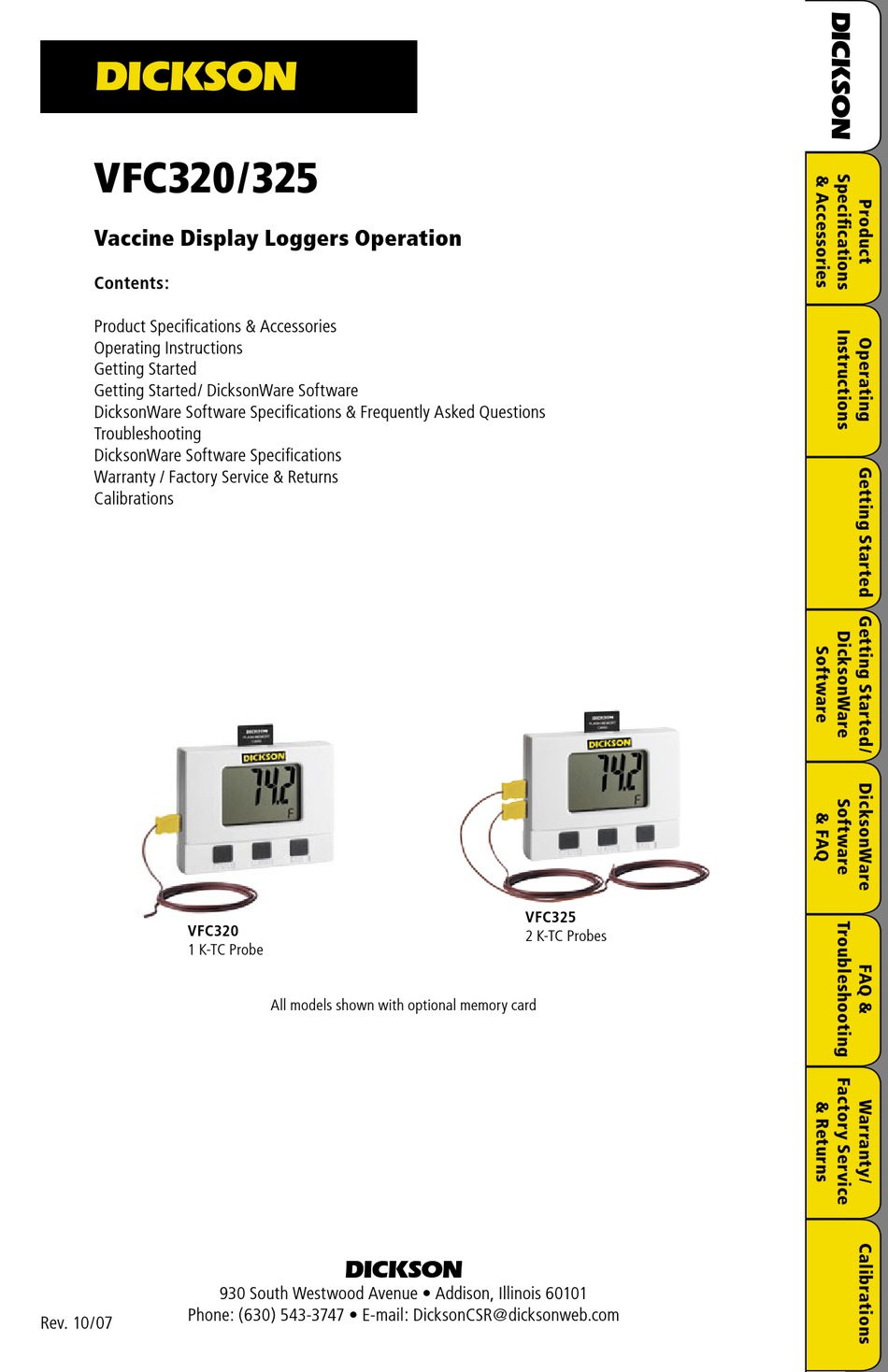

DICKSON
VFC320/325
Vaccine Display Loggers Operation
Contents:
Product Specifications & Accessories
Operating Instructions
Getting Started
Getting Started/ DicksonWare Software
DicksonWare Software Specifications & Frequently Asked Questions
Troubleshooting
DicksonWare Software Specifications
Warranty / Factory Service & Returns
Calibrations
VFC320
1 K-TC Probe
Phone: (630) 543-3747 • E-mail: DicksonCSR@dicksonweb.com
Rev. 10/07
All models shown with optional memory card
DICKSON
930 South Westwood Avenue • Addison, Illinois 60101

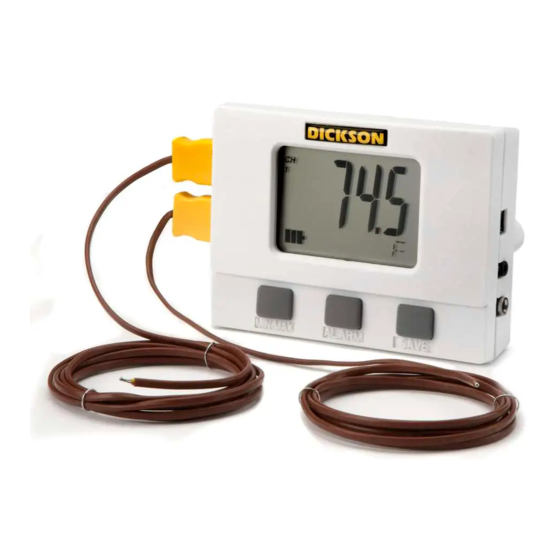

VFC325
2 K-TC Probes
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dickson VFC320
Summary of Contents for Dickson VFC320
- Page 1 DICKSON VFC320/325 Vaccine Display Loggers Operation Contents: Product Specifications & Accessories Operating Instructions Getting Started Getting Started/ DicksonWare Software DicksonWare Software Specifications & Frequently Asked Questions Troubleshooting DicksonWare Software Specifications Warranty / Factory Service & Returns Calibrations VFC325 VFC320 2 K-TC Probes...
-
Page 2: Product Specifications
Product Specifications VFC320 VFC325 Operating Range (unit only) -4 to +158°F (non-condensing) -4 to +158°F (non-condensing) Int. Temperature Sensor Thermistor Int. Temperature Accuracy ±1.8°F Ext. Temperature Sensor Thermocouple Thermocouple (x2) Ext.Temperature Range -300 to +2000°F -300 to +2000°F Ext.Temperature Accuracy ±1.8°F (unit) - Page 3 Full Data Loggers. This eliminates the need to physically remove your loggers from their application for uninterrupted monitoring. The Flash Memory Card has been formatted at Dickson in order to work with DicksonWare™ software. Please contact Technical Support if you wish to format your own card.
-
Page 4: Getting Started
Channel 1. Ch1 is the external probe for the VFC320 and top probe for the VFC325. In the setup window, choose the Ch2 Temp Alarm Ch2 is the internal sensor for the VFC320 and the bottom probe for the VFC325. The factory preset alarm temperature parameters are shown To change these temperatures, just type in another Minimum temperature and/or Maximum temperature. -
Page 5: Dicksonware™ Software Specifications
• Microsoft Windows® compatible • Allows for simple viewing and zooming of logged data • Easy set-up of Dickson Data Loggers including: • User selectable sample intervals from 10 seconds to 24 hours • Display temperature in °C or °F •... -
Page 6: Frequently Asked Questions
Specifications: • Compatible With: Microsoft Windows® 95, 98, 2000, NT & XP • PC Requirements: PC with 386 MHz or better microprocessor, 4 M RAM, 1 free COM (serial) port, CD drive • Cable Type/Length: 9 pin male D-shell to male 2.5mm stereo plug, 6’ long •... -
Page 7: Troubleshooting
Where can I put them? Depending on the Dickson model, just about anywhere. We have waterproof units, stainless steel models, units with probes, and units that handle extreme temperatures. Our wide selection of instruments should fit about any application. What is the biggest advantage of a Data Logger? Its data is “logged”, stored on a microchip inside the Data Logger. -
Page 8: Warranty
Dickson shall not be liable for consequential or incidental damages resulting from failure or malfunction of its products. Dickson makes no warranty for products not manufactured by it or for any products modified by buyer, or subject to misuse or neglect. - Page 9 (a high, medium, and low) on new units only. • N400 - Deluxe A2LA Accredited NIST Traceable Calibration 3-Point: ISO Guide 25/A2LA Documentation of 3 pre-selected points of as found data before and after calibration for Dickson temperature and/or humidity instrumentation on new units only. •...
