Dickson TSB Manual

This manual applies to the following product: TSB - Touchscreen with USB connectivity
TSB Touchscreen Logger
1. Touchscreen Logger
2. Replaceable Sensor(s) - Purchased Separately
3. AC Adapter
4. Mounting Kit
All instructions and information are given for the base model Touchscreen (TSB):
1. Open the box!
2. Plug your Replaceable Sensors into the Touchscreen Unit.
3. Plug your Touchscreen into AC Power.*
4. That's it!
The Touchscreen's Graph functions as the home screen for the Touchscreen. Data is displayed at user-
selectable time ranges, and users can zoom and scroll through data easily with the Touchscreen's interface.
Downloading Data via USB
1. Plug a USB Flash Drive into Your Touchscreen Logger.
2. Navigate to the "Stored Data" page in the device settings.
3. Push "Save to USB"
4. Plug USB Flash Drive into Your PC.
5. Download the data via DicksonWare Software (see "Working with DicksonWare below")
Saving a Screenshot via USB
1. Plug a USB Flash Drive into Your Touchscreen Logger.
2. Navigate to the your device home screen, or graph screen.
3. Push the Camera Button, in the bottom right corner of the screen.

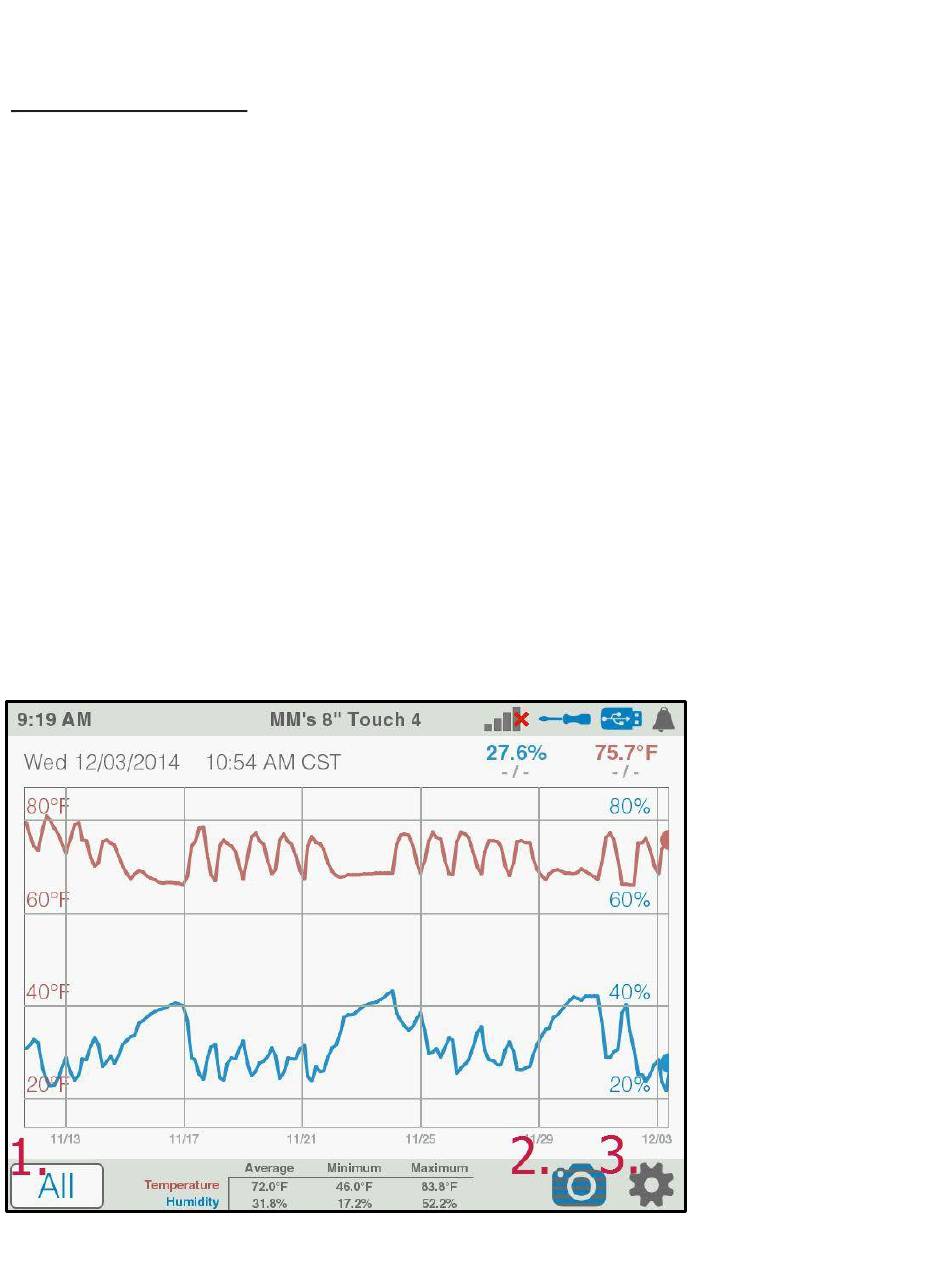

There are 3 Key Buttons on the Touchscreen's Graph Screen, as shown in the image below:
TOUCHSCREEN DATA LOGGER MANUAL
1. The Data Selection
Button: This button
allows you to see various
intervals of data, and to
reset the view after you
scroll or zoom in the
graph.
2. The Screenshot
Button: Pressing this
button, while having a
USB Flash Drive plugged
into your logger, allows
you to save a JPEG of the
data currently shown on
your Touchscreen.
3. The Settings Button:
Allows you to access your
devices settings pages,
which include: Device
Information, General
Settings, Graph Settings,
Network Settings, Alarms,
Calibration Options, USB
Download Feature, and
the Settings Lock Tool.
