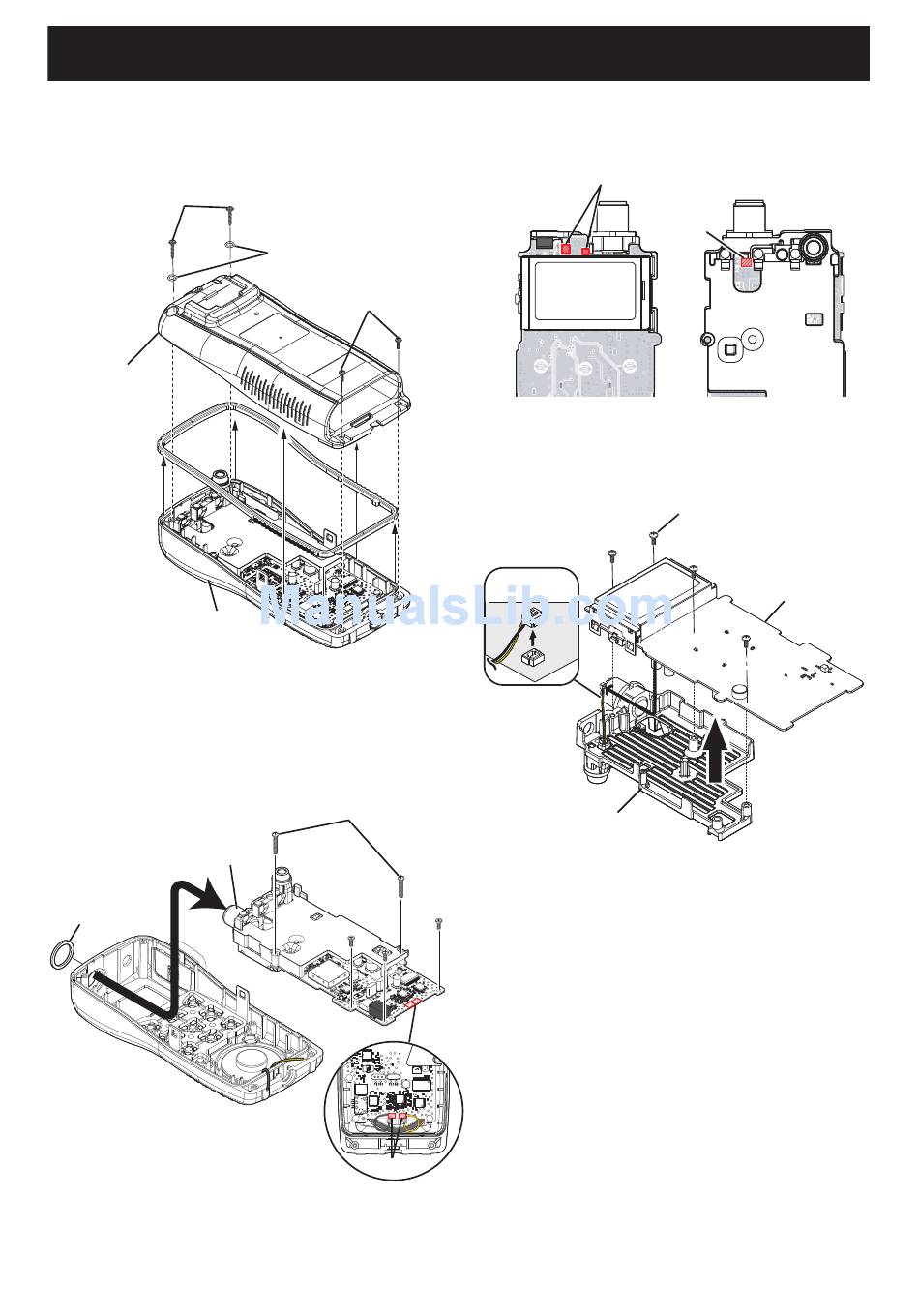

SECTION 3.
1. REMOVING FRONT PANEL
• Unscrew 4 screws from the rear panel, and remove
the rear panel from the front panel.
NOTICE: NOT to lost 2 o-rings.
Screw
REAR PANEL
FRONT PANEL
2. REMOVING CHASSIS
1) Unsolder 2 points from the speaker.
2) Unscrew ANT nut from the antenna connector, and 5 screws
from the MAIN UNIT.
3) Take off the chassis with MAIN UNIT from the front panel
in the direction of the arrow.
ANT CONNECTOR
ANT NUT

DISASSEMBLY INSTRUCTION

O-ring
Screw
Screw (long)
Screw
(short) x3
MAIN UNIT MAIN UNIT MAIN UNIT
Unsolder
3. REMOVING MAIN UNIT
1) Unsolder 2 points from the top side, and 1 point from the
bottom side.
Unsolder
TOP SIDE TOP SIDE TOP SIDE
2) Unscrew 4 screws from the MAIN UNIT.
3) Disconnect the microphone cable from the MAIN UNIT.
4) Take off the MAIN UNIT from the chassis.
MICROPHONE
CABLE
CHASSIS
3 - 1
Unsolder
BOTTOM SIDE
Screw x4
MAIN UNIT
