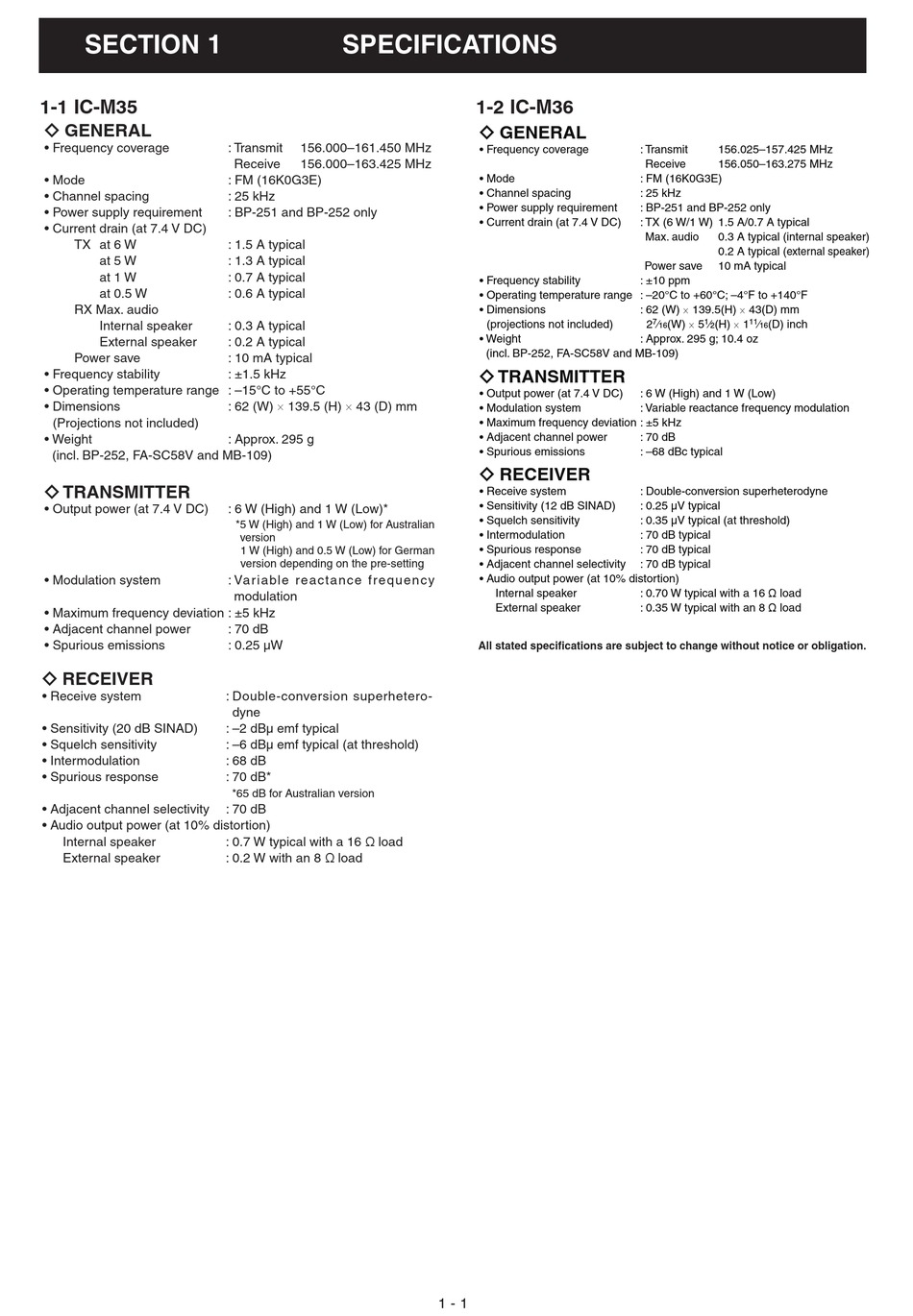

Specifications - Icom IC-M35 Service Manual

SECTION 1.
1-1 IC-M35
ï GENERAL
• Frequency coverage
• Mode
• Channel spacing
• Power supply requirement
• Current drain (at 7.4 V DC)
TX at 6 W
at 5 W
at 1 W
at 0.5 W
RX Max. audio
Internal speaker
External speaker
Power save
• Frequency stability
• Operating temperature range : –15°C to +55°C
• Dimensions
(Projections not included)
• Weight
(incl. BP-252, FA-SC58V and MB-109)
ï TRANSMITTER
• Output power (at 7.4 V DC)
• Modulation system
• Maximum frequency deviation : ±5 kHz
• Adjacent channel power
• Spurious emissions
ï RECEIVER
• Receive system
• Sensitivity (20 dB SINAD)
• Squelch sensitivity
• Intermodulation
• Spurious response
• Adjacent channel selectivity
• Audio output power (at 10% distortion)
Internal speaker
External speaker

SPECIFICATIONS

: Transmit 156.000–161.450 MHz
Receive 156.000–163.425 MHz
: FM (16K0G3E)
: 25 kHz
: BP-251 and BP-252 only
: 1.5 A typical
: 1.3 A typical
: 0.7 A typical
: 0.6 A typical
: 0.3 A typical
: 0.2 A typical
: 10 mA typical
: ±1.5 kHz
: 62 (W) 139.5 (H) 43 (D) mm
: Approx. 295 g
: 6 W (High) and 1 W (Low)*
* 5 W (High) and 1 W (Low) for Australian
version
1 W (High) and 0.5 W (Low) for German
version depending on the pre-setting
: Var iable reactance frequency
modulation
: 70 dB
: 0.25 μW
: Double-conversion superhetero-
dyne
: –2 dBμ emf typical
: –6 dBμ emf typical (at threshold)
: 68 dB
: 70 dB*
*65 dB for Australian version
: 70 dB
: 0.7 W typical with a 16 load
: 0.2 W with an 8 load
1-2 IC-M36
ï GENERAL
• Frequency coverage
• Mode
• Channel spacing
• Power supply requirement
• Current drain (at 7.4 V DC)
• Frequency stability
• Operating temperature range : –20°C to +60°C; –4°F to +140°F
• Dimensions
(projections not included)
• Weight
(incl. BP-252, FA-SC58V and MB-109)
ï TRANSMITTER
• Output power (at 7.4 V DC)
• Modulation system
• Maximum frequency deviation : ±5 kHz
• Adjacent channel power
• Spurious emissions
ï RECEIVER
• Receive system
• Sensitivity (12 dB SINAD)
• Squelch sensitivity
• Intermodulation
• Spurious response
• Adjacent channel selectivity
• Audio output power (at 10% distortion)
Internal speaker
External speaker
All stated specifi cations are subject to change without notice or obligation.
1 - 1
: Transmit 156.025–157.425 MHz
Receive 156.050–163.275 MHz
: FM (16K0G3E)
: 25 kHz
: BP-251 and BP-252 only
: TX (6 W/1 W) 1.5 A/0.7 A typical
Max. audio 0.3 A typical (internal speaker)
0.2 A typical (external speaker)
Power save 10 mA typical
: ±10 ppm
: 62 (W) × 139.5(H) × 43(D) mm
(W) × 5 (H) × 1
7 1 11
2 ⁄ ⁄ ⁄ (D) inch
16 2 16
: Approx. 295 g; 10.4 oz
: 6 W (High) and 1 W (Low)
: Variable reactance frequency modulation
: 70 dB
: –68 dBc typical
: Double-conversion superheterodyne
: 0.25 μV typical
: 0.35 μV typical (at threshold)
: 70 dB typical
: 70 dB typical
: 70 dB typical
: 0.70 W typical with a 16 Ω load
: 0.35 W typical with an 8 Ω load
