Icom IC-M35 Service Manual page 6

SECTION 2.
• MAIN UNIT

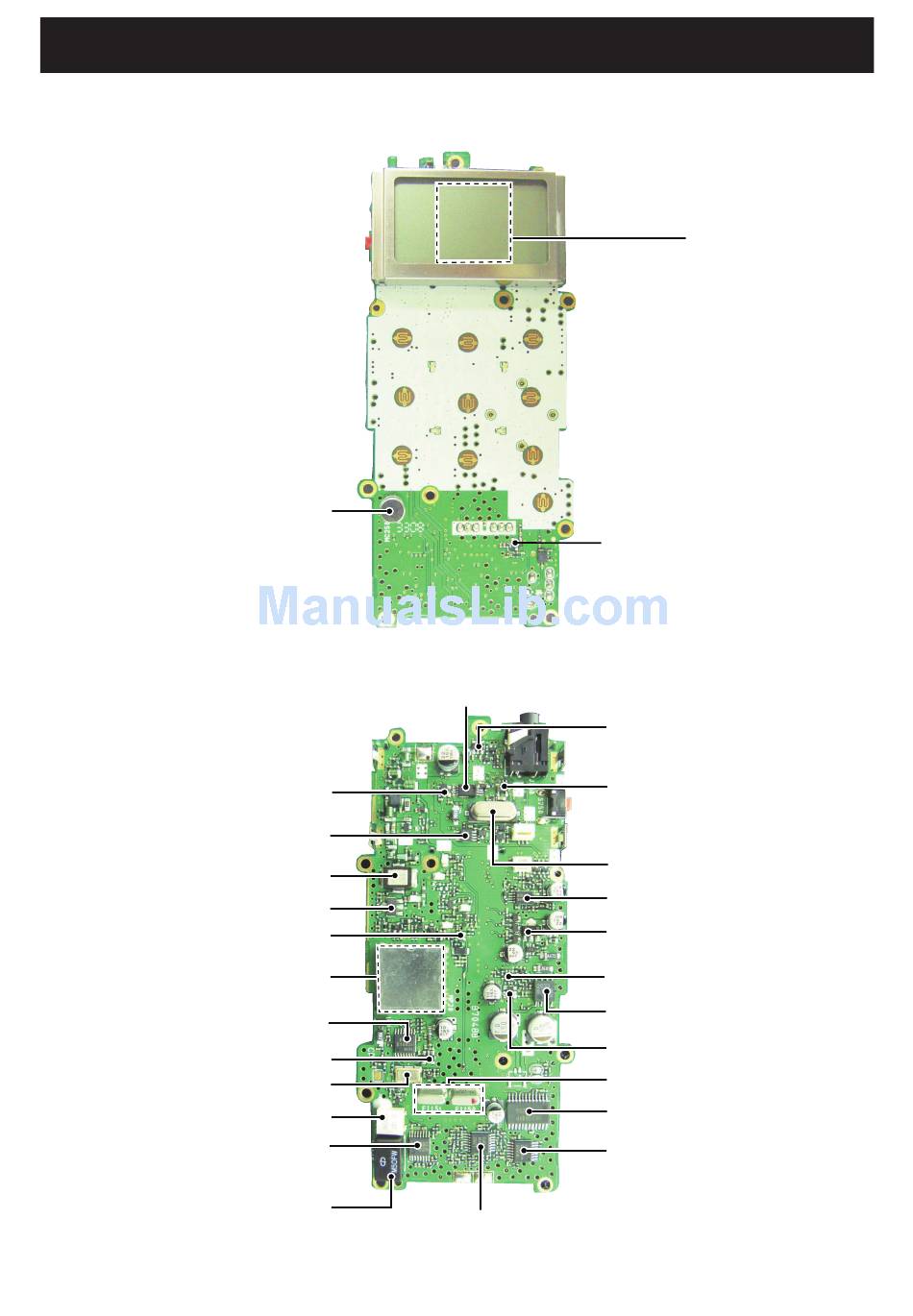

(TOP VIEW)
INTERNAL MICROPHONE
• MAIN UNIT
(BOTTOM VIEW)
"CPU5V" LINE REGULATOR
INVERTER (data interface)
TX POWER AMP
PRE-DRIVER AMP
3V REGULATOR
REFERENCE FREQUENCY OSCILLATOR
DISCRIMINATOR
2ND IF FILTER
INSIDE VIEWS
(MC250)
(IC220)
(IC364)
(Q54)
(Q53)
1st IF MIXER
(Q150)
VCO
PLL IC
(IC1)
(IC2)
(X1)
(X170)
IF IC
(IC170)
(FI170)
1ST IF AMP
(Q151)
EEPROM
(IC340)
"VCC" LINE SWITCH
(Q353)
CPU RESET IC
(IC341)
CPU CLOCK
(X360)
AMBIENT NOISE AMP
(IC363)
5V REGULATOR
(Q225)
AF POWER AMP REGULATOR
(Q231)
AF POWER AMP
(IC362)
AF POWER AMP SWITCH
(Q230)
1ST IF FILTERS
(FI150, 151)
D/A CONVERTER
(IC190)
AF MUTE SWITCH
(IC260)
QUAD OP AMP (AF FILETR/AF AMPs)
(IC200)
2 - 1
CPU (under the LCD)
(IC360)
