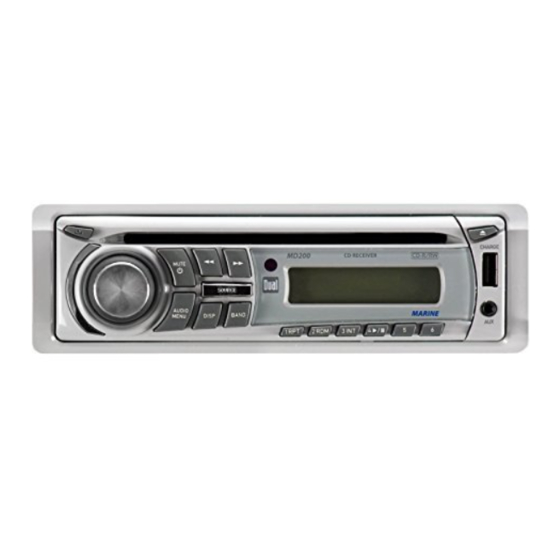

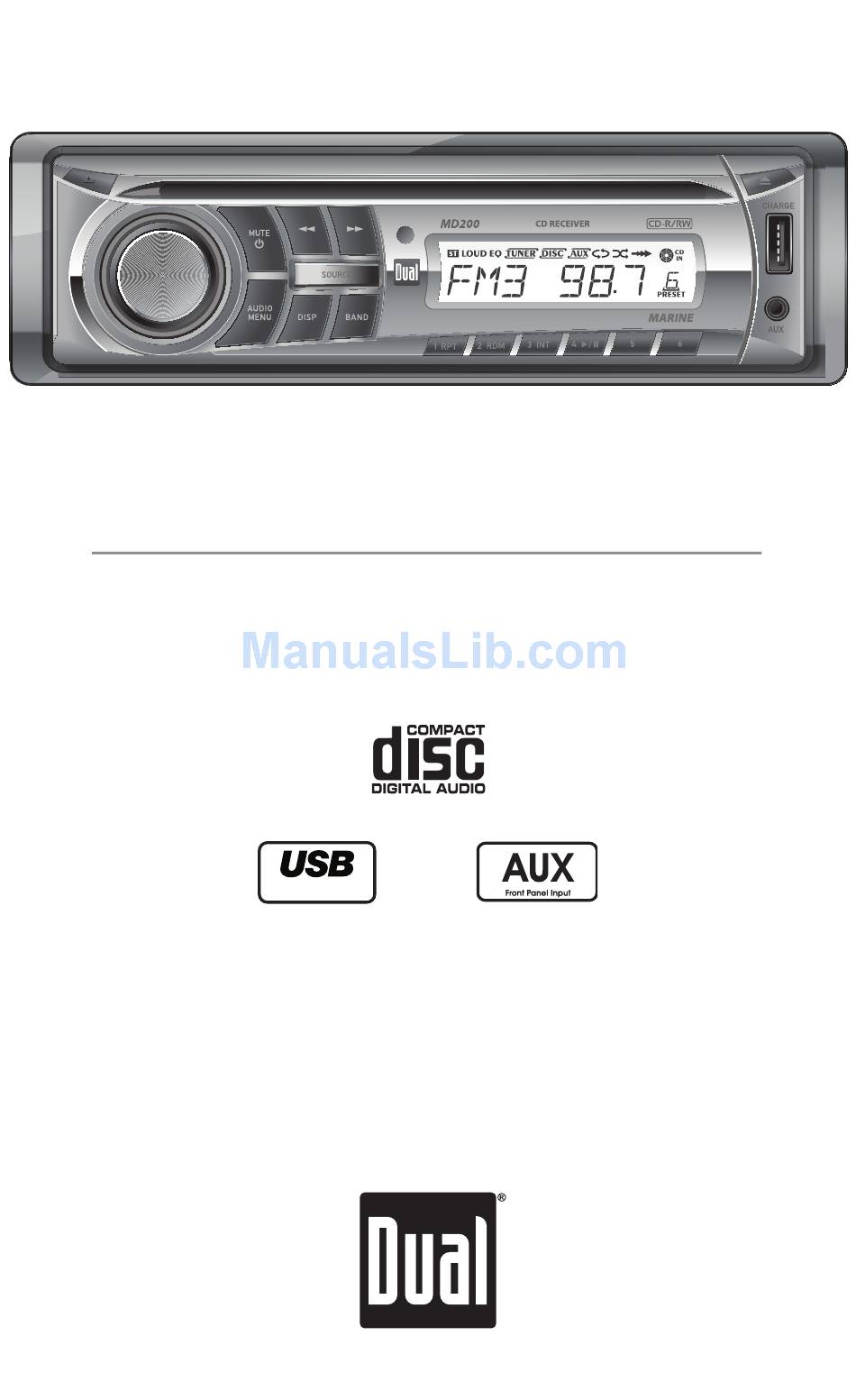

- Page 1 MD200 INSTALLATION/OWNER'S MANUAL AM/FM/CD Marine Receiver Charge Port...
- Page 2 MD200 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. Getting Started •...
-
Page 3: Wiring Diagram
MD200 INSTALLATION Wiring Diagram Rear Preamp Output Connect to amplifier RCA input RCA Cable (sold separately) Antenna Connector BLUE Remote Turn-On Connect to amplifier or power antenna. Insulate wire if not used. BLACK Ground Connect to vehicle chassis ground. Accessory Connect to ignition circuit or switched 12 volt source. -
Page 4: Control Locations
MD200 OPERATION Control Locations Release Preset 6 Volume Knob Preset 5 Mute / Power Preset 4 / Play / Pause Tune / Track Down Preset 3 / Intro Tune / Track Up Preset 2 / Random Source Preset 1 / Repeat Eject Band USB Charging Port Display... -
Page 5: Control Locations - Remote
MD200 OPERATION Control Locations - Remote Display Volume Down Volume Up Audio / Menu Power / Mute Band Source Tune / Track Down Tune / Track Up... -
Page 6: General Operation
MD200 OPERATION General Operation Faceplate Removal Press RELEASE and pull away from the left side to remove. To re-install, insert right side of faceplate first then push left side to secure. Semi-permanent Remove trim ring and install supplied #1 x 7/32” Phillips Faceplate Installation head screw through left side of mounting frame into faceplate. - Page 7 MD200 OPERATION General Operation Press and hold AUDIO/MENU for more than 3 seconds to Setup Menu access the setup menu, then press AUDIO/MENU to cycle through menu options. When desired option appears in the display, rotate the volume knob left/right to adjust or activate the desired function.
-
Page 8: Audio Operation
MD200 OPERATION Audio Operation Bass Press AUDIO until BAS appears. Rotate the volume knob left/right to adjust. (-6 minimum / 6 maximum) Treble Press AUDIO until TRE appears. Rotate the volume knob left/right to adjust. (-6 minimum / 6 maximum) Balance Press AUDIO until BAL appears. Rotate the volume knob left/right to adjust. -
Page 9: Cd Player Operation
MD200 OPERATION CD Player Operation Insert CD With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Eject CD Press the EJECT button to stop and eject the CD. The unit will change to tuner mode. Track Select Press TRACK ... -
Page 10: Limited One Year Warranty
2. If you require service during the the original purchase. warranty period, you must carefully pack the product (preferably in the Dual Electronics Corp. agrees, at our original package) and ship it by prepaid option, during the warranty period, transportation with a copy of the original... -
Page 11: Troubleshooting
MD200 OPERATION Troubleshooting Problem Cause Action Yellow wire not connected or incorrect voltage Check connections for proper voltage Red wire not connected or incorrect voltage (11~16VDC) Unit will not turn on (no power) Black wire not connected Check connection to ground Fuse blown Replace fuse Speaker wires not connected Check connections at speakers Unit has power ... -
Page 12: Specifications
Power Output: 5 Watts RMS x 4 channels at 4 ohms and < 1% THD+N Signal to noise ratio: 75dBA (reference: 1 watt into 4 ohms) Dual Electronics Corp. Toll Free: 1-866-382-5476 www.dualav.com ©2011 Dual Electronics Corp. All rights reserved. NSA1111-V01...
