6"
(152 mm)
/
14
"
1
2
(368 mm)

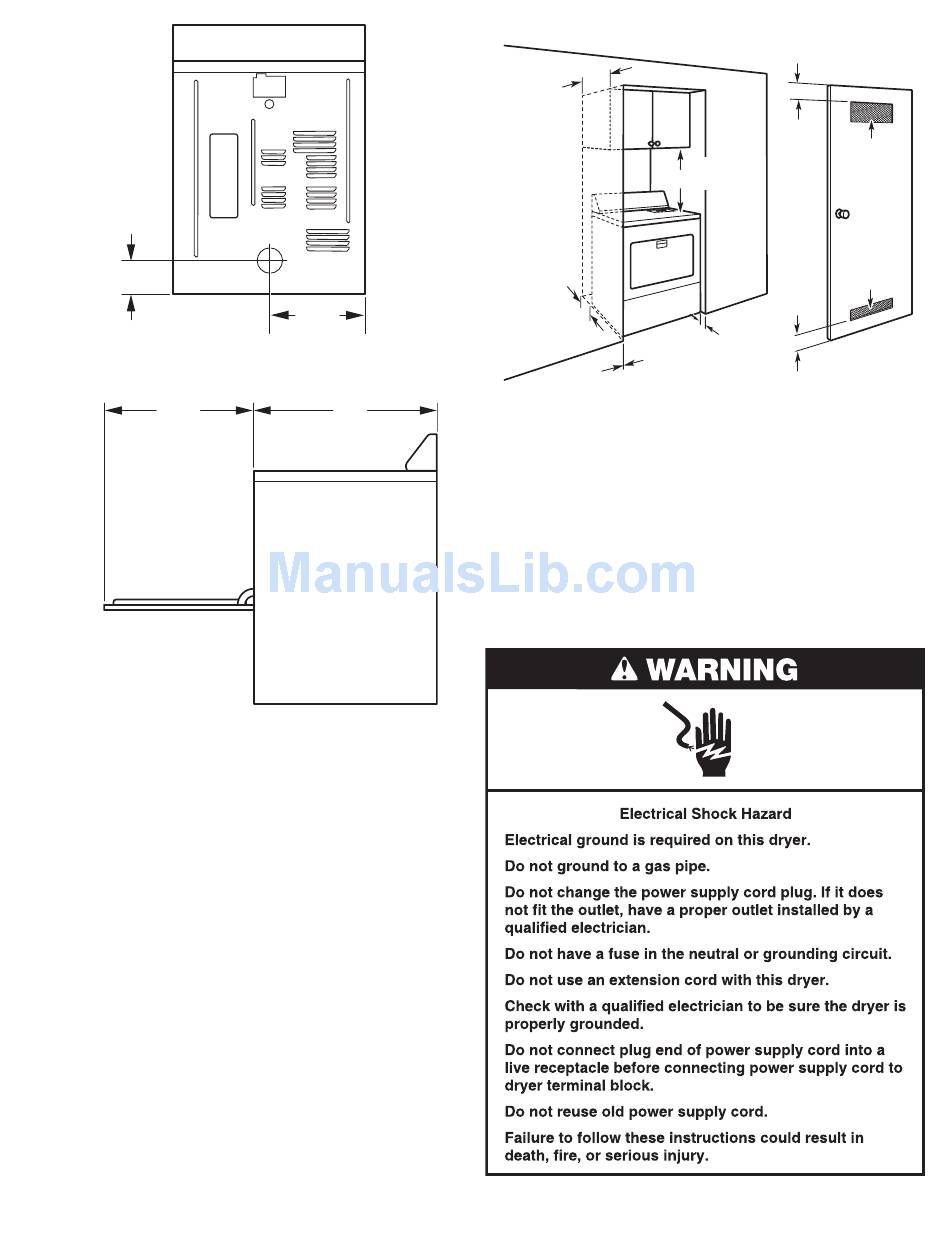

Door Clearance
3
22
/
"
28"
4
(1076 mm)
(711 mm)
Minimum spacing for recessed area or closet
installation
The dimensions shown following are for the minimum spacing
allowed.
Additional spacing should be considered for ease of
■
installation and servicing.
Additional clearances might be required for wall, door, and
■
floor moldings.
Additional spacing of 1" (25 mm) on all sides of the dryer
■
is recommended to reduce noise transfer.
For closet installation, with a door, minimum ventilation
■
openings in the top and bottom of the door are required.
Louvered doors with equivalent ventilation openings
are acceptable.
The dryer must be exhausted outdoors.
■
No other fuel-burning appliance may be installed in the same
■
closet as the dryer.
Companion appliance spacing should also be considered.
■
Minimum Required Spacing
14"max.
(356 mm)
3"
(76 mm)
48 in.
2
(310 cm
)
2
18"
18"
(457 mm)
(457 mm)
24 in.
2
(155 cm
)
2
4"
3"
(102 mm)
(76 mm)
1"
(25 mm)
0"
(0 mm)
Recessed front view
Closet side
view
*Additional spacing recommended
*Opening is the minimum for a closet door

Electrical Requirements

A two-wire plus separate ground wire, or a 3-wire, single-
■
phase 230-volt, 50-Hz, AC only, electrical supply is required
on a separate 15-amp circuit, fused on both sides of the line.
A time-delay fuse or circuit breaker is recommended.
It is the personal responsibility and obligation of the customer
■
to contact a qualified electrician to assure that the electrical
installation is adequate and is in conformance with all local
codes and ordinances.
If codes permit and a separate grounding wire is used, it is
■
recommended that a qualified electrician determine that the
grounding path is adequate.
