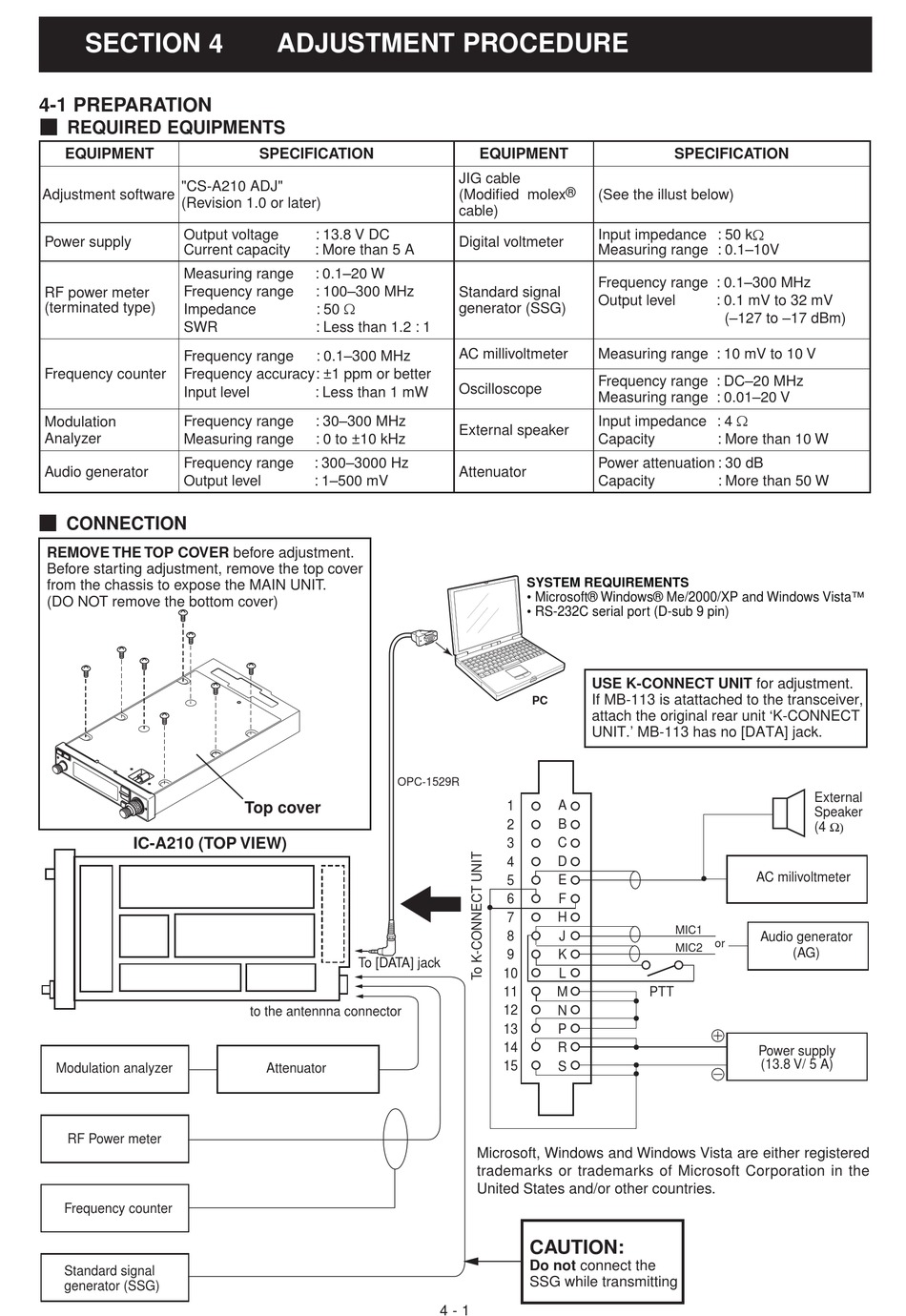

SECTION 4

4-1 PREPARATION

¤ REQUIRED EQUIPMENTS
EQUIPMENT
"CS-A210 ADJ"
Adjustment software
(Revision 1.0 or later)
Output voltage
Power supply
Current capacity
Measuring range
Frequency range
RF power meter
(terminated type)
Impedance
SWR
Frequency range
Frequency counter Frequency accuracy : ±1 ppm or better
Input level
Frequency range
Modulation
Analyzer
Measuring range
Frequency range
Audio generator
Output level
¤ CONNECTION
REMOVE THE TOP COVER before adjustment.
Before starting adjustment, remove the top cover
from the chassis to expose the MAIN UNIT.
(DO NOT remove the bottom cover)
IC-A210 (TOP VIEW)
Modulation analyzer
RF Power meter
Frequency counter
Standard signal
generator (SSG)

ADJUSTMENT PROCEDURE

SPECIFICATION
: 13.8 V DC
: More than 5 A
: 0.1–20 W
: 100–300 MHz
: 50 Ω
: Less than 1.2 : 1
: 0.1–300 MHz
: Less than 1 mW
: 30–300 MHz
: 0 to ±10 kHz
: 300–3000 Hz
: 1–500 mV
OPC-1529R
Top cover
To [DATA] jack
to the antennna connector
Attenuator
EQUIPMENT
JIG cable
®
(Modifi ed molex (See the illust below)
cable)
Input impedance : 50 kΩ
Digital voltmeter
Measuring range : 0.1–10V
Frequency range : 0.1–300 MHz
Standard signal
Output level
generator (SSG)
AC millivoltmeter Measuring range : 10 mV to 10 V
Frequency range : DC–20 MHz
Oscilloscope
Measuring range : 0.01–20 V
Input impedance : 4 Ω
External speaker
Capacity
Power attenuation : 30 dB
Attenuator
Capacity

SYSTEM REQUIREMENTS

• Microsoft® Windows® Me/2000/XP and Windows Vista™
• RS-232C serial port (D-sub 9 pin)
USE K-CONNECT UNIT for adjustment.
If MB-113 is atattached to the transceiver,
PC
attach the original rear unit 'K-CONNECT
UNIT.' MB-113 has no [DATA] jack.
1 A
B
2
C
3
4 D
E
5
6 F
7 H
8 J
9 K
10 L
11 M
12 N
13 P
14 R
15
S
Microsoft, Windows and Windows Vista are either registered
trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
CAUTION:
Do not connect the
SSG while transmitting
4 - 1
SPECIFICATION
: 0.1 mV to 32 mV
(–127 to –17 dBm)
: More than 10 W
: More than 50 W
External
Speaker
(4 Ω)
AC milivoltmeter
MIC1
Audio generator
or
MIC2
(AG)
PTT
Power supply
(13.8 V/ 5 A)
