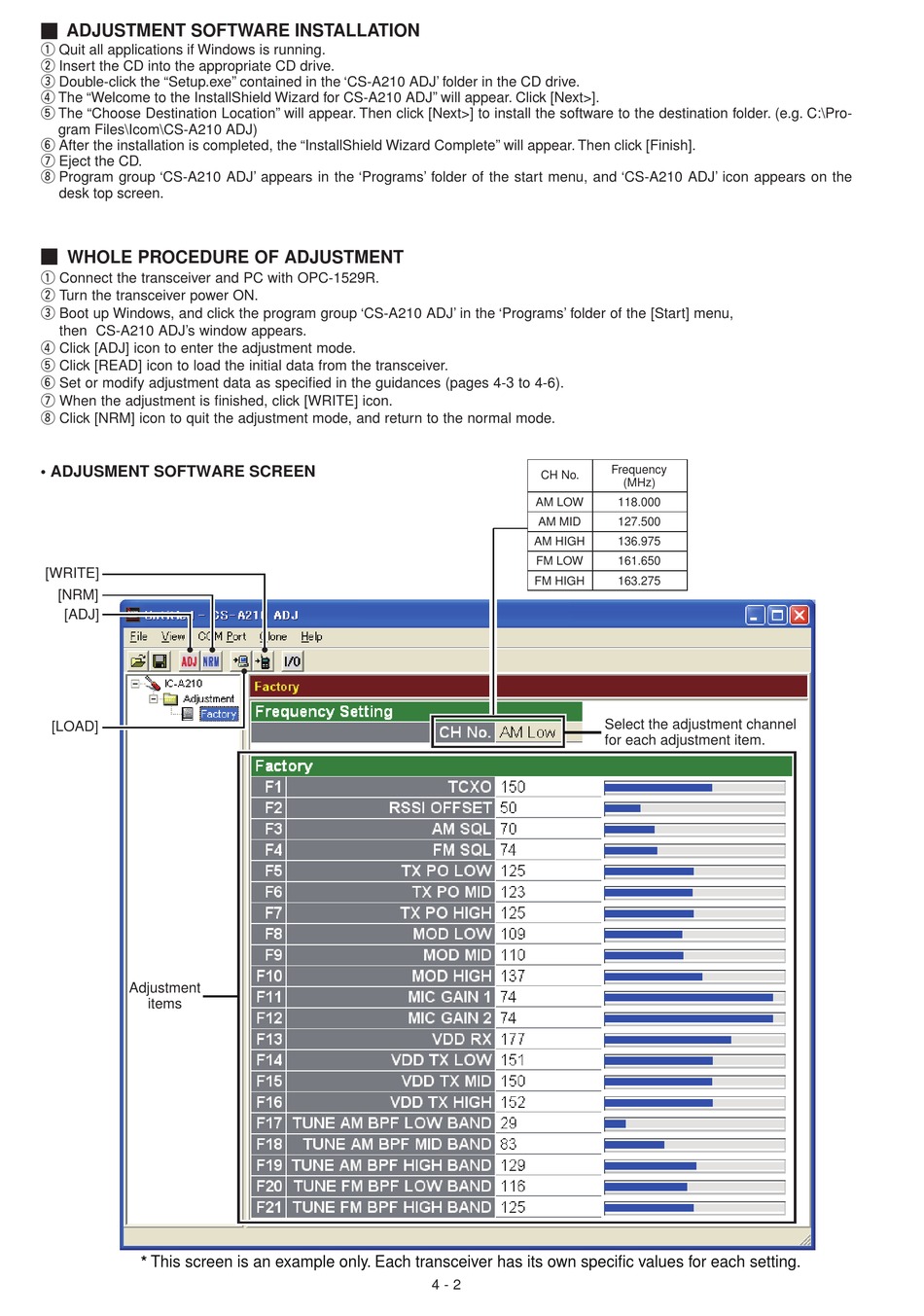

¤ ADJUSTMENT SOFTWARE INSTALLATION
q Quit all applications if Windows is running.
w Insert the CD into the appropriate CD drive.
e Double-click the "Setup.exe" contained in the 'CS-A210 ADJ' folder in the CD drive.
r The "Welcome to the InstallShield Wizard for CS-A210 ADJ" will appear. Click [Next>].
t The "Choose Destination Location" will appear. Then click [Next>] to install the software to the destination folder. (e.g. C:\Pro-
gram Files\Icom\CS-A210 ADJ)
y After the installation is completed, the "InstallShield Wizard Complete" will appear. Then click [Finish].
u Eject the CD.
i Program group 'CS-A210 ADJ' appears in the 'Programs' folder of the start menu, and 'CS-A210 ADJ' icon appears on the
desk top screen.
¤ WHOLE PROCEDURE OF ADJUSTMENT
q Connect the transceiver and PC with OPC-1529R.
w Turn the transceiver power ON.
e Boot up Windows, and click the program group 'CS-A210 ADJ' in the 'Programs' folder of the [Start] menu,
then CS-A210 ADJ's window appears.
r Click [ADJ] icon to enter the adjustment mode.
t Click [READ] icon to load the initial data from the transceiver.
y Set or modify adjustment data as specifi ed in the guidances (pages 4-3 to 4-6).
u When the adjustment is fi nished, click [WRITE] icon.
i Click [NRM] icon to quit the adjustment mode, and return to the normal mode.

• ADJUSMENT SOFTWARE SCREEN

[WRITE]
[NRM]
[ADJ]
[LOAD]
Adjustment
items
* This screen is an example only. Each transceiver has its own specific values for each setting.
CH No.
AM LOW
AM MID
AM HIGH
FM LOW
FM HIGH
4 - 2
Frequency
(MHz)
118.000
127.500
136.975
161.650
163.275
Select the adjustment channel
for each adjustment item.
